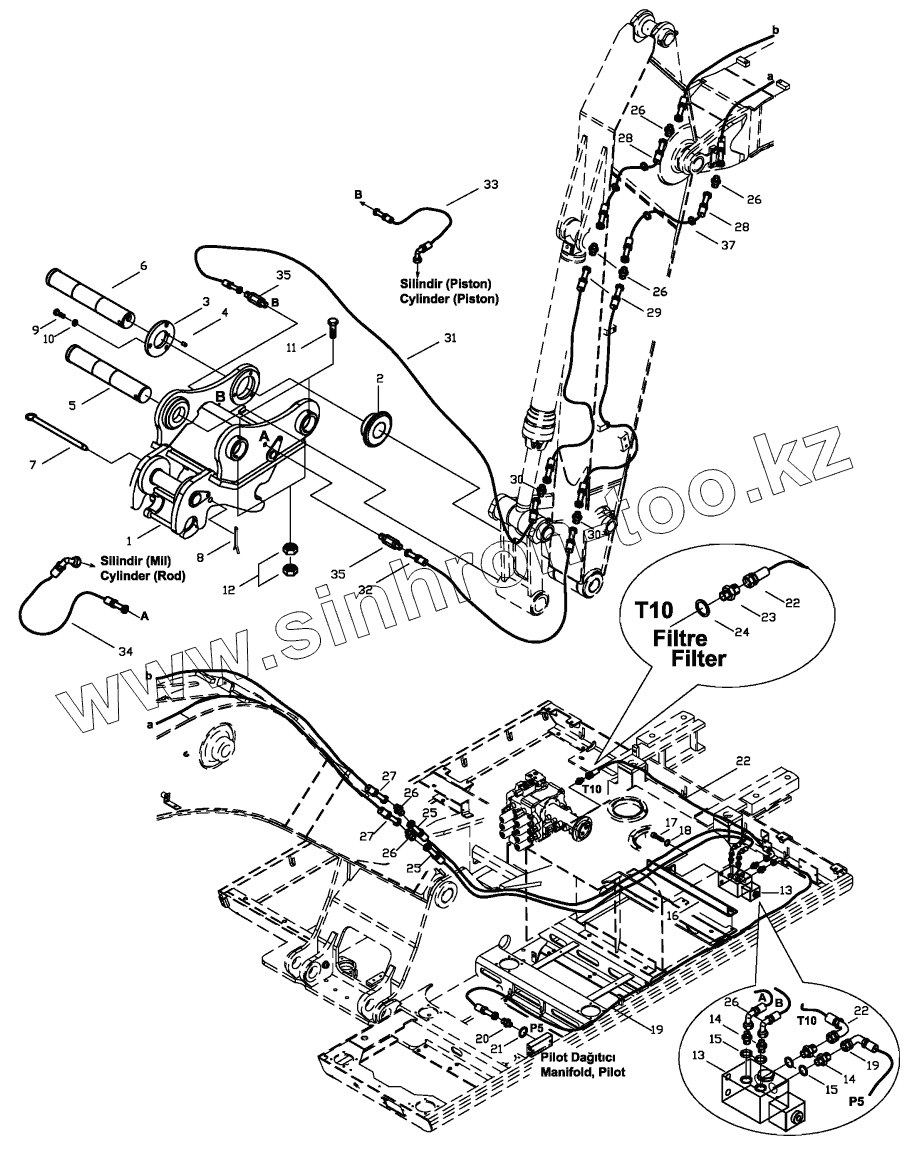

Каталог запасных частей к технике: Hidromek HMK 200W. QUICK COUPLING ASSEMBLY
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
17
18
19
19
20
21
22
22
22
23
24
25
25
26
26
26
26
26
26
27
27
28
28
29
30
30
31
32
33
34
35
35
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| H230110001 | H230110001 | Quick Coup. Assy | |
| H230110000 | H230110000 | Quick Coup. Assy | |
| 1 | H340110101 | Quick Coup. Mount. | |
| 1 | H340110100 | Quick Coup. Mount. | |
| 2 | H345303501 | Spacer | |
| 2 | H345303502 | Spacer | |
| 3 | H345303600 | Plate | |
| 4 | H345303700 | Pin, Lock | |
| 5 | H345002000 | Pin | |
| 6 | H345303301 | Pin | |
| 7 | H340113100 | Pin, Ringed | |
| 8 | N06/1006060 | Pin, Split | |
| 9 | N01/0381226 | Bolt, Hex. | |
| 10 | N03/1310014 | Washer, Spr. | |
| 11 | N01/0381418 | Bolt, Hex. | |
| 12 | N02/3570314 | Nut, Hex. | |
| 13 | H340112400 | Valve, Quick Coup. | |
| 14 | N16/K114348 | Connector | |
| 15 | N10/2001322 | O-Ring | |
| 16 | H340114000 | Plate, Quick Coup. | |
| 17 | N01/5870458 | Bolt, Cyl. Hd. | |
| 18 | N03/1310010 | Washer, Spr. | |
| 19 | 99Q098250 | Hose | |
| 20 | N16/K114341 | Connector | |
| 21 | N10/2001024 | O-Ring | |
| 22 | 99Q098208 | Hose | |
| 23 | N16/K114348 | Connector | |
| 24 | N10/2001322 | O-Ring | |
| 25 | 99Q098270 | Hose | |
| 26 | N16/K200321 | Connector | |
| 27 | 99N0982124 | Hose | |
| 28 | 99Q198227 | Hose | |
| 29 | 99Q198235 | Hose | |
| 30 | N16/K200301 | Connector | |
| 31 | 99R198213 | Hose | |
| 32 | 99R198216 | Hose | |
| 33 | 99P098205 | Hose | |
| 34 | 99T098205 | Hose | |
| 35 | N16/K200341 | Connector | |
| 37 | 510/11700 | String |
