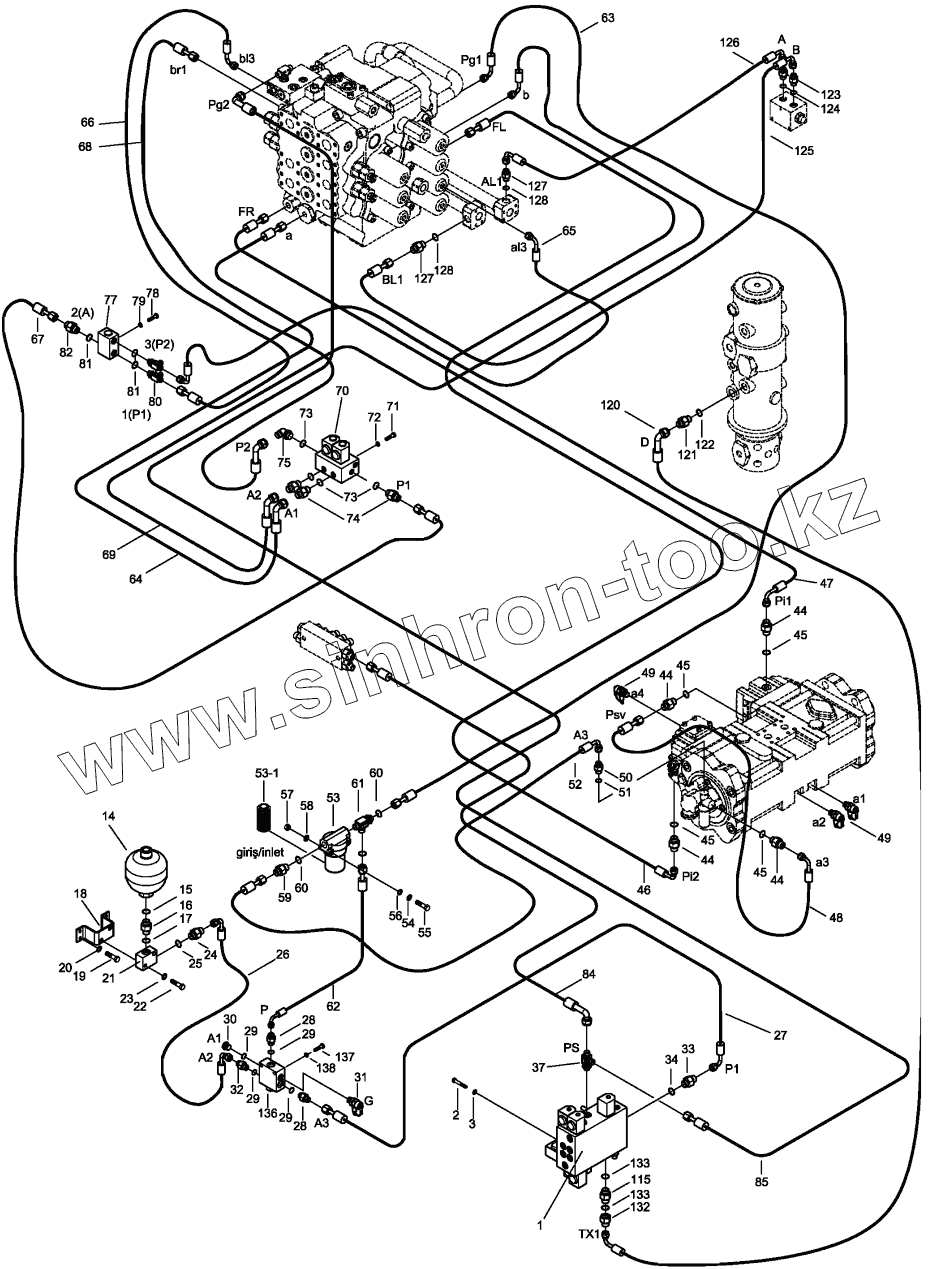

Каталог запасных частей к технике: Hidromek HMK 200W. POWER TRAIN HYDRAULIC MOUNTING
1
2
3
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
29
29
30
31
32
33
34
37
44
44
44
44
45
45
45
45
46
47
48
49
49
50
51
52
53
53-1
54
55
56
57
58
59
60
60
61
62
63
64
65
66
67
68
69
70
71
72
73
73
74
75
77
78
79
80
81
81
82
84
85
115
120
121
122
123
124
125
126
127
127
128
128
132
133
133
136
137
138
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H233520200 | Pilot and Trans. Valve | |
| 2 | N01/0232438 | Bolt, Hex. | |
| 3 | N03/1310011 | Washer, Spr. | |
| 14 | H233520400 | Accumulator | |
| 15 | N03/0000015 | Washer | |
| 16 | N16/K520107 | Connector | |
| 17 | N10/2001322 | O-Ring | |
| 18 | H233520900 | Accum. Plate | |
| 19 | N01/0232078 | Bolt | |
| 20 | N03/1310010 | Washer, Spr. | |
| 21 | H343202600 | Block, Accumulator | |
| 22 | N01/0370650 | Bolt, Hex. | |
| 23 | N03/1310011 | Washer, Spr. | |
| 24 | N16/K114341 | Connector | |
| 25 | N10/2001024 | O-Ring | |
| 26 | 97T091208 | Hose Assy | |
| 27 | 99Q093215 | Hose Assy | |
| 28 | N16/K114357 | Connector | |
| 29 | N10/2001322 | O-Ring | |
| 30 | N16/X120001 | Plug | |
| 31 | F99/70100 | Coupling, Screw | |
| 32 | N16/K114348 | Connector | |
| 33 | N16/K114343 | Connector | |
| 34 | N10/2001724 | O-Ring | |
| 37 | H343203202 | Tee | |
| 44 | N16/K114341 | Connector | |
| 45 | N10/2001024 | O-Ring | |
| 46 | 97Q091224 | Hose | |
| 47 | 97V091228 | Hose Assy | |
| 48 | 97Q091210 | Hose Ass'y | |
| 49 | F99/70100 | Coupling, Screw | |
| 50 | N16/K114343 | Connector | |
| 51 | N10/2001724 | O-Ring | |
| 52 | 99Q093212 | Hose Ass'y | |
| 53 | H343201100 | Pilot Filter | |
| 53-1 | H343201200 | Element, Pilot Filter | |
| 54 | H343201300 | Spacer | |
| 55 | N01/0370350 | Bolt Hex. | |
| 56 | N03/1310008 | Washer, Spr. | |
| 57 | N02/3570158 | Nut, Hex. | |
| 58 | N03/0100013 | Washer, Pln. | |
| 59 | N16/K114343 | Connector | |
| 60 | N10/2001724 | O-Ring | |
| 61 | H343201401 | Tee | |
| 62 | 99Q093212 | Hose Ass'y | |
| 63 | 97N091223 | Hose Assy | |
| 64 | 97S091209 | Hose Ass'y | |
| 65 | 97Q091216 | Hose Ass'y | |
| 66 | 97S091220 | Hose Ass'y | |
| 67 | 97N091204 | Hose Assy | |
| 68 | 97Q091220 | Hose Assy | |
| 69 | 97U091225 | Hose Ass'y | |
| 70 | H343203400 | Solenoid Valve | |
| 71 | N01/0222162 | Bolt, Hex. | |
| 72 | N03/1310010 | Washer, Spr. | |
| 73 | N10/2001024 | O-Ring | |
| 74 | N16/K114341 | Connector | |
| 75 | N16/N910001 | Elbow | |
| 77 | H343201601 | Valve Shuttle | |
| 78 | N01/03700326 | Bolt Hex. | |
| 79 | N03/1310008 | Washer, Spr. | |
| 80 | N16/T020202 | Tee | |
| 81 | N10/2001024 | O-Ring | |
| 82 | N16/K114341 | Connector | |
| 84 | 99Q092251 | Hose Assy | |
| 85 | 97Q091268 | Hose Assy | |
| 115 | N16/K114348 | Connector | |
| 120 | 97Q091250 | Hose Assy | |
| 121 | N16/K114348 | Connector | |
| 122 | N10/2001322 | O-Ring | |
| 123 | N16/K130126 | Connector | |
| 124 | N10/2001724 | O-Ring | |
| 125 | 99Q073708 | Hose Assy | |
| 126 | 99S073713 | Hose Assy | |
| 127 | N16/K130126 | Connector | |
| 128 | N10/2001724 | O-Ring | |
| 132 | H233521800 | Adaptor | |
| 133 | N10/2001322 | O-Ring | |
| 136 | H343202300 | Check Valve, Pilot | |
| 137 | N01/03800410 | Bolt Hex. | |
| 138 | N03/1310010 | Washer, Spr. |
