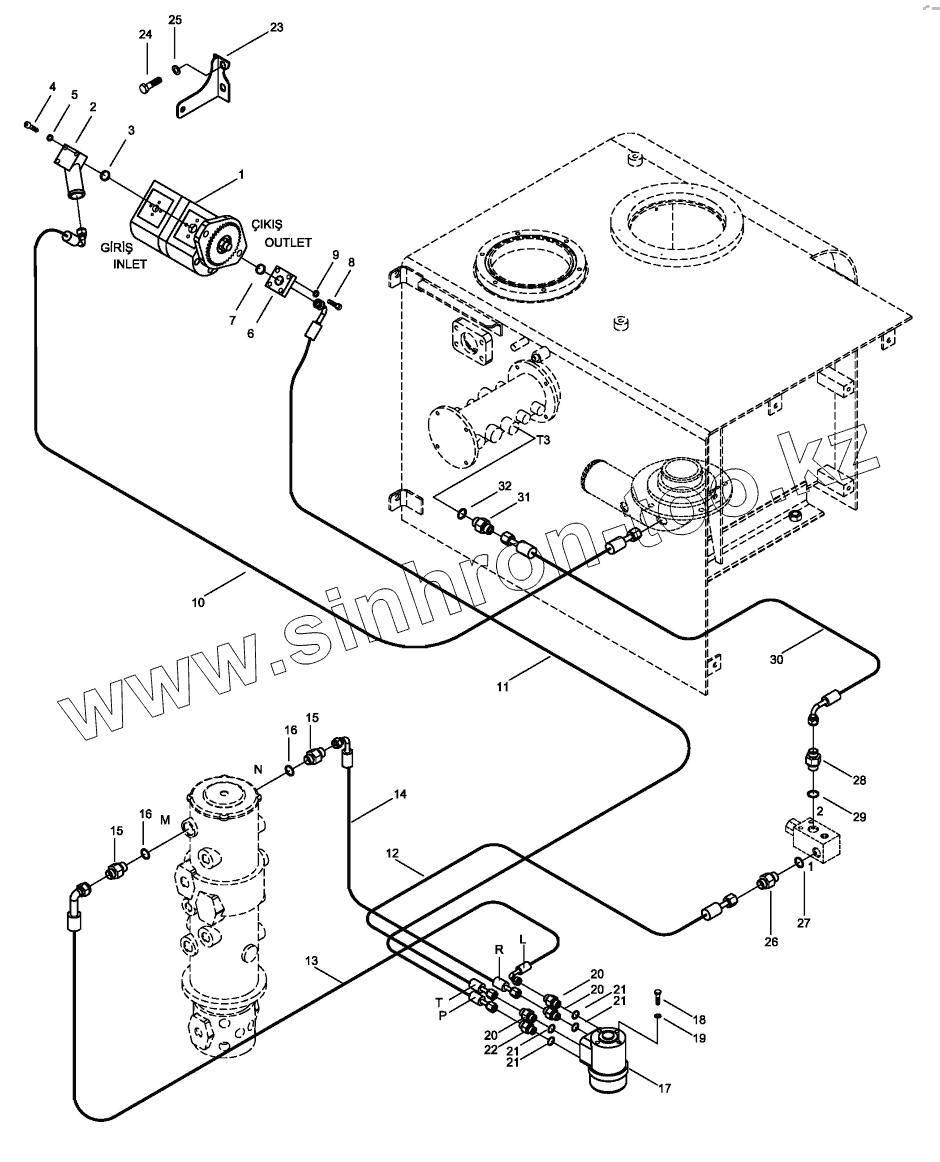

Каталог запасных частей к технике: Hidromek HMK 200W. POWER TRAIN HYDRAULIC MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
20
20
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H233500200 | Gear Pump | |
| 2 | H233500300 | Flange, G.Pump, Inlet | |
| 3 | N10/2002917 | O-Ring | |
| 4 | N01/5870518 | Bolt, Cyl. Head | |
| 5 | N03/1360009 | Washer, Spr. | |
| 6 | H233500400 | Flange, G.Pmp., Outlet | |
| 7 | N10/2002435 | O-Ring | |
| 8 | N01/5890470 | Bolt, Cylinder Head | |
| 9 | N03/1360009 | Washer, Spr. | |
| 10 | 99Q095234 | Hose | |
| 11 | 99Q094473 | Hose | |
| 12 | 99P093261 | Hose | |
| 13 | 99K093455 | Hose | |
| 14 | 99Q093461 | Hose | |
| 15 | N16/K114343 | Connector | |
| 16 | N10/2001724 | O-Ring | |
| 17 | H233500600 | Steering Unit | |
| 18 | N01/3871310 | Bolt, Hex. | |
| 19 | N03/0190003 | Washer, Spr. | |
| 20 | N16/K310373 | Connector | |
| 21 | N10/2001622 | O-Ring | |
| 22 | N16/K310374 | Connector | |
| 23 | H233500700 | Support | |
| 24 | N01/0232822 | Bolt, Hex. | |
| 25 | N03/1310012 | Washer, Spr. | |
| 26 | N16/K114343 | Connector | |
| 27 | N10/2001724 | O-Ring | |
| 28 | N16/K114343 | Connector | |
| 29 | N10/2001724 | O-Ring | |
| 30 | 99V093225 | Hose | |
| 31 | N16/K114343 | Connector | |
| 32 | N10/2001724 | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
