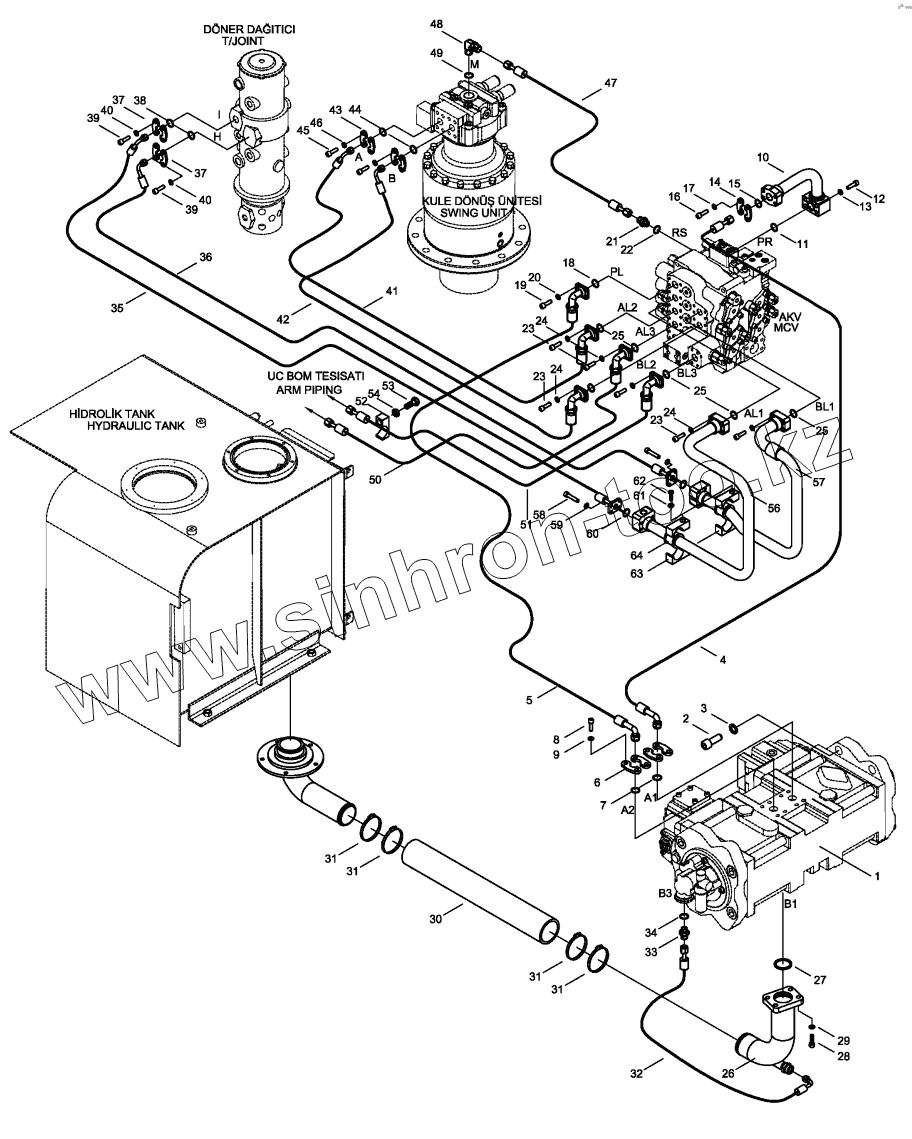

Каталог запасных частей к технике: Hidromek HMK 200W. MAIN PIPING MOUNTING L/H
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
24
24
24
25
25
25
26
27
28
29
30
31
31
31
31
32
33
34
35
36
37
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
56
57
58
59
60
61
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H343000201 | Hydraulic Pump | |
| 2 | N01/5892042 | Bolt, Cyl. Head | |
| 3 | N03/1360015 | Washer, Spr. | |
| 4 | H343000300 | Hose | |
| 5 | H343000400 | Hose | |
| 6 | N16/J420102 | Flange, Split | |
| 7 | N10/2002435 | O-Ring | |
| 8 | N01/5890830 | Bolt, Cyl. Hd. | |
| 9 | N03/1360010 | Washer, Spr. | |
| 10 | H343000501 | Pipe Assy. | |
| 11 | N10/2003335 | O-Ring | |
| 12 | N01/5890878 | Bolt, Cyl. Head | |
| 13 | N03/1360010 | Washer, Spr. | |
| 14 | N16/J420102 | Flange, Split | |
| 15 | N10/2002435 | O-Ring | |
| 16 | N01/5890842 | Bolt, Cylinder Head | |
| 17 | N03/1360010 | Washer, Spr. | |
| 18 | N10/2003335 | O-Ring | |
| 19 | N01/5890830 | Bolt, Cyl. Hd. | |
| 20 | N03/1360010 | Washer, Spr. | |
| 21 | N16/K114345 | Connector | |
| 22 | N10/2002835 | O-Ring | |
| 23 | N01/5890830 | Bolt, Cyl. Hd. | |
| 24 | N03/1360010 | Washer, Spr. | |
| 25 | N10/2003335 | O-Ring | |
| 26 | H343000600 | Pipe Assy. | |
| 27 | N10/2006935 | O-Ring | |
| 28 | N01/5891178 | Bolt, Cylinder Head | |
| 29 | N03/1360011 | Washer, Spr. | |
| 30 | H343000800 | Hose | |
| 31 | N07/4090110 | Clamp | |
| 32 | 99Q094213 | Hose, Ass'y | |
| 33 | N16/K114344 | Connector | |
| 34 | N10/2002436 | O-Ring | |
| 35 | H233005000 | Hose | |
| 36 | H233005100 | Hose | |
| 37 | N16/J460104 | Flange, Split | |
| 38 | N10/2003335 | O-Ring | |
| 39 | N01/5890830 | Bolt, Cyl. Hd. | |
| 40 | N03/1360010 | Washer, Spr. | |
| 41 | H233004800 | Hose | |
| 42 | H233004900 | Hose | |
| 43 | N16/J320102 | Flange, Split | |
| 44 | N10/2002435 | O-Ring | |
| 45 | N01/5890830 | Bolt, Cyl. Hd. | |
| 46 | N03/1360010 | Washer, Spr. | |
| 47 | 99N095208 | Hose Ass'y | |
| 48 | N16/N910005 | Elbow | |
| 49 | N10/2002835 | O-Ring | |
| 50 | H343001500 | Hose Ass'y | |
| 51 | H343001600 | Hose Ass'y | |
| 52 | H343005700 | Clamp | |
| 53 | N01/0233590 | Bolt, Hex. | |
| 54 | N03/1310014 | Washer, Spr. | |
| 56 | H233000201 | Pipe Assy. | |
| 57 | H233000401 | Pipe Assy. | |
| 58 | N01/5900866 | Bolt, Cyl. Head | |
| 59 | N03/1360010 | Washer, Spr. | |
| 60 | N10/2003335 | O-Ring | |
| 61 | N03/1310014 | Washer, Spr. | |
| 62 | N01/0381310 | Bolt, Hex. | |
| 63 | H343301500 | Clamp | |
| 64 | H340102500 | Rubber |
