Каталог запасных частей к технике: Hidromek HMK 200W. LOWER FRAME MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7-1
7-2
7-3
7-4
7-5
8
9
10
11
12
12
12
12
12
13
14
15
15
16
17
18
18-1
18-1
18-2
18-2
18-3
18-3
18-4
18-4
19
20
20
21
21
21
21
22
22
22
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
32
32
33
33
33
33
34
34
34
34
35
35
36
36
37
37
38
39
40
41
42
43
44
44
45
46
47
53
54
55
56
57
58
59
60
61

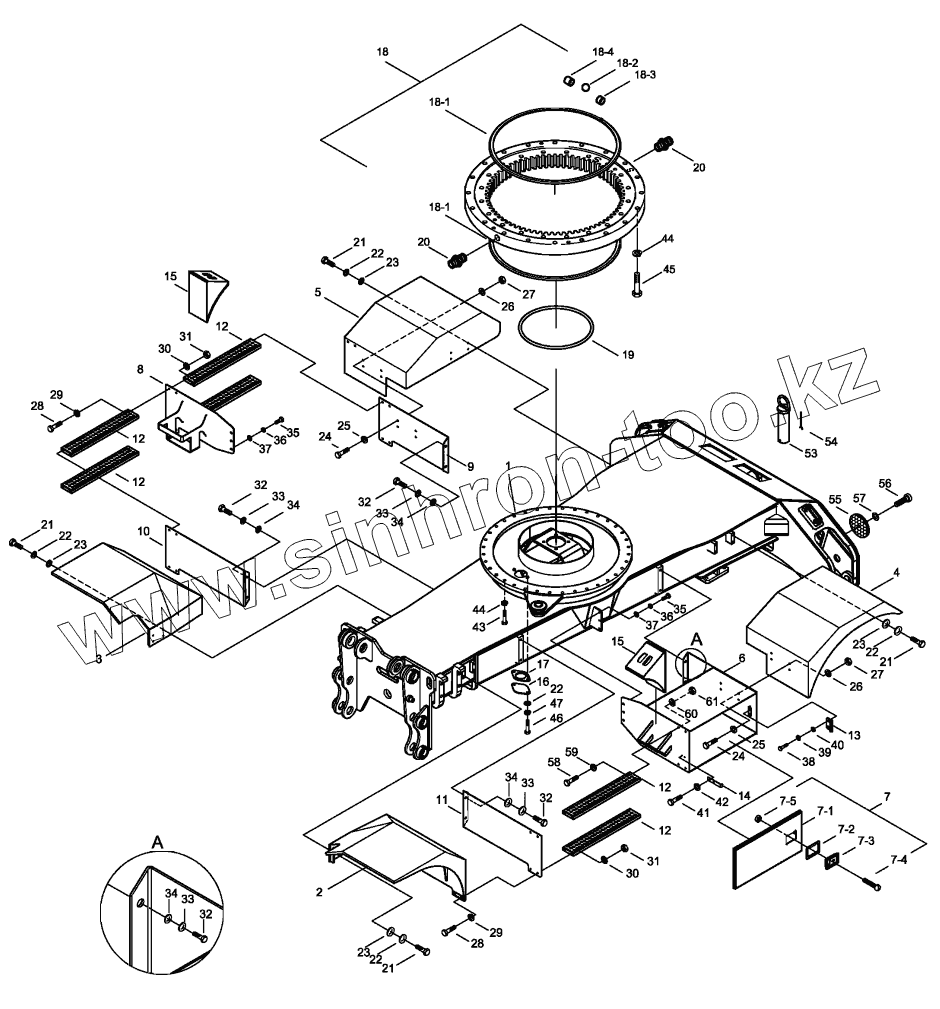

Позиция на иллюстрации Заводской номер детали Название детали
1 H234000000 Lower Frame W.A.
2 H234100100 Fender W.A., Front, L/H
3 H234101300 Fender W.A., Front, R/H
4 H234101600 Fender W.A., Rear, L/H
5 H234102600 Fender W.A., Rear, R/H
6 H234102800 Tool Box W.A.
7 H234104300 Cover, Tool Box W.A.
7-1 H234104400 Cover
7-2 H343407500 Plate, Support
7-3 H343407600 Lock Assy
7-4 N01/1661862 Bolt, Cylinder Head
7-5 N02/5880026 Nut, Hex.
8 H234104500 Screen
9 H234106900 Screen
10 H234107000 Screen
11 H234107100 Screen
12 H234105200 Foot Board
13 H234105300 Lock Plate
14 H234105400 Limitation Plate
15 H234105500 Wheel Chock
16 H341201500 Cover
17 H341201600 Gasket
18 H344104800 Swing Ring Assy
18-1 H349031001 Seal, Swing Ring
18-1 H349031011 Seal, Swing Ring
18-2 H349031002 Ball, Swing Ring
18-2 H349031012 Ball, Swing Ring
18-3 H349031004 Support A, Swing R.
18-3 H349031014 Support A, Swing R.
18-4 H349031005 Support B, Swing R.
18-4 H349031015 Support B, Swing R.
19 H344104900 Seal, Grease
20 N08/1110000 Grease, Nipple
21 N01/0232486 Bolt, Hex.
22 N03/1310011 Washer, Spr.
23 N03/0020121 Washer, Pln.
24 N01/0232486 Bolt, Hex.
25 N03/1310011 Washer, Spr.
26 N03/0020121 Washer, Pln.
27 N02/3570206 Nut, Hex.
28 N01/0232498 Bolt, Hex.
29 N03/1310011 Washer, Spr.
30 N03/0020121 Washer, Pln.
31 N02/3570206 Nut, Hex.
32 N01/0233566 Bolt, Hex.
33 N03/1310014 Washer, Spr.
34 H234106700 Washer, Pln.
35 N01/0232822 Bolt, Hex.
36 N03/1310012 Washer, Spr.
37 N03/0100023 Washer, Pln.
38 N01/0232486 Bolt, Hex.
39 N03/1310011 Washer, Spr.
40 N03/0020121 Washer, Pln.
41 N01/0231478 Bolt, Hex.
42 N03/1310008 Washer, Spr.
43 N01/0682018 Bolt, Hex.
44 N03/1310016 Washer, Spr.
45 N01/0391872 Bolt, Hex.
46 N01/0671082 Bolt, Hex.
47 N03/0100021 Washer, Pln.
53 H234106000 Pin
54 N06/0001140 Pin, Split
55 H234106200 Reflector
56 N01/5870314 Bolt
57 N03/0720008 Washer, Pln.
58 N01/0232486 Bolt, Hex.
59 N03/1310011 Washer, Spr.
60 N03/0020121 Washer, Pln.
61 N02/3570206 Nut, Hex.
