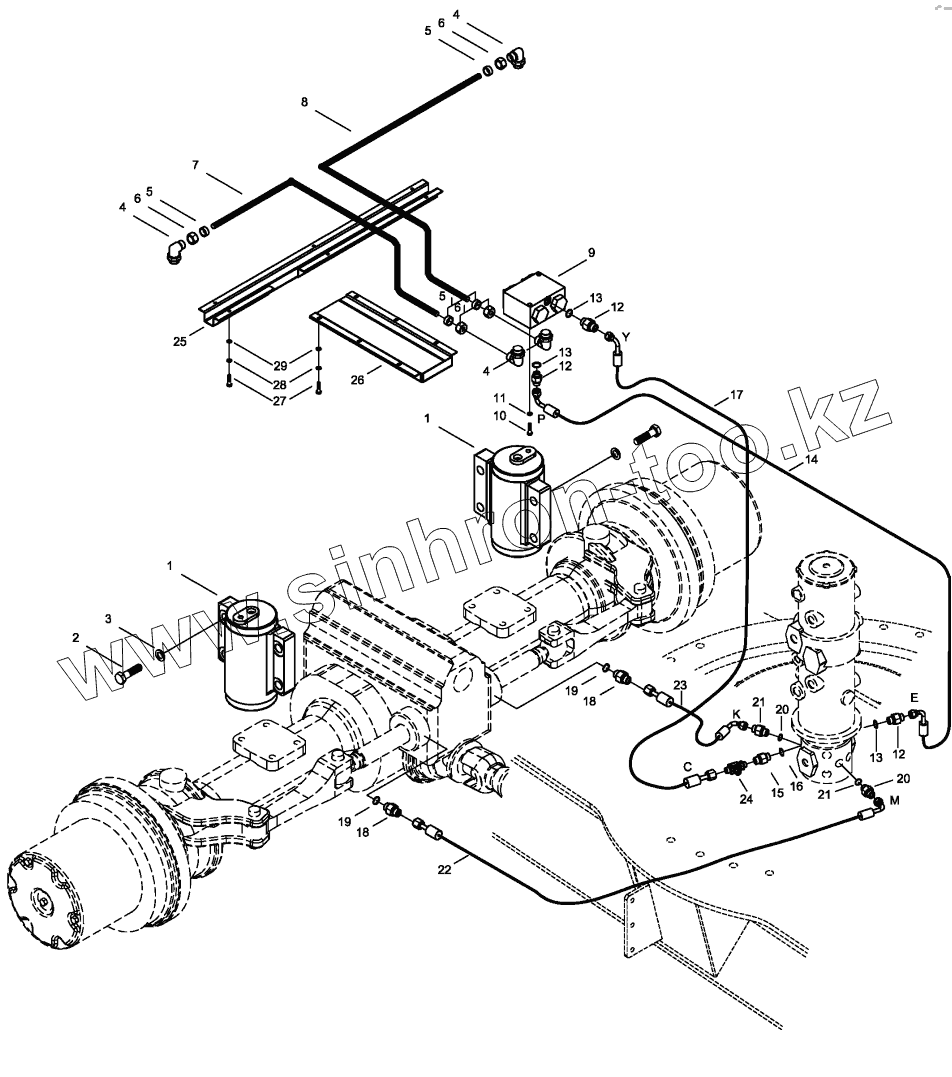

Каталог запасных частей к технике: Hidromek HMK 200W. LOWER FRAME HYDRAULIC MOUNTING
1
1
2
3
4
4
4
5
5
5
6
6
6
7
8
9
10
11
12
12
12
13
13
13
14
15
16
17
18
18
19
19
20
20
21
21
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H233100100 | Oscillating Cyl. | |
| 2 | N01/0384686 | Bolt, Hex. | |
| 3 | N03/1310017 | Washer, Spr. | |
| 4 | N16/N910002 | Elbow | |
| 5 | N18/3570192 | Ring | |
| 6 | N17/3570192 | Nut | |
| 7 | H233100200 | Pipe, L/H | |
| 8 | H233100300 | Pipe, R/H | |
| 9 | H233101100 | Valve, Lock | |
| 10 | N01/0380494 | Bolt, Hex. | |
| 11 | N03/1310010 | Washer, Spr. | |
| 12 | N16/K114341 | Connector | |
| 13 | N10/2001024 | O-Ring | |
| 14 | 97S091232 | Hose | |
| 15 | N16/K114348 | Connector | |
| 16 | N10/2001322 | O-Ring | |
| 17 | 97Q091230 | Hose Ass'y | |
| 18 | N16/K220471 | Connector | |
| 19 | N03/0000005 | Washer | |
| 20 | N16/K114343 | Connector | |
| 21 | N10/2001724 | O-Ring | |
| 22 | 99Q093337 | Hose | |
| 23 | 99Q093333 | Hose | |
| 24 | H343202801 | Tee | |
| 25 | H233101300 | Cover | |
| 26 | H233101200 | Cover | |
| 27 | N01/0231514 | Bolt, Hex. | |
| 28 | N03/1310008 | Washer, Spr. | |
| 29 | N03/0100013 | Washer, Pln. |
