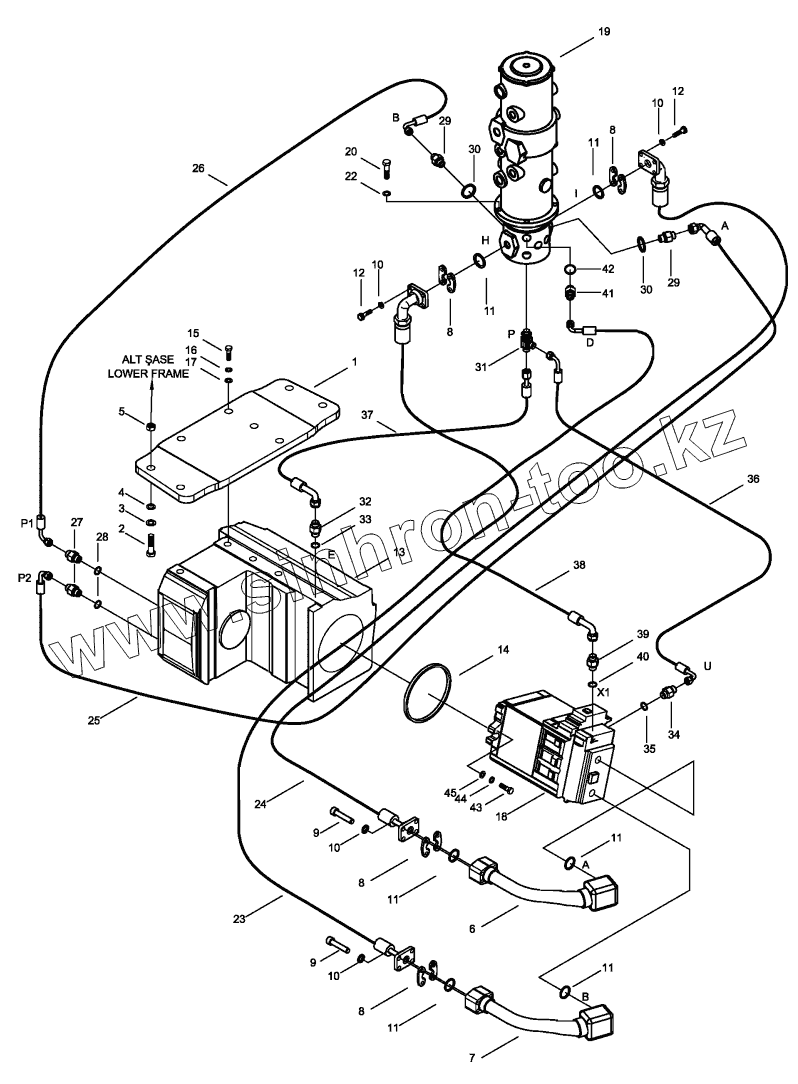

Каталог запасных частей к технике: Hidromek HMK 200W. LOWER FRAME HYDRAULIC MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
8
8
9
9
9
10
10
10
10
11
11
11
11
11
11
12
12
12
13
14
15
15
16
16
17
17
18
18
19
20
22
23
24
25
25
26
27
28
29
29
30
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
Позиция на иллюстрации Заводской номер детали Название детали
1 H233140100 Hanger , Transmis.
2 N01/0384686 Bolt, Hex.
3 N03/0100033 Washer, Pln.
4 N03/1310017 Washer, Spr.
5 N02/3570410 Nut, Hex.
6 H233140200 Pipe W.A., Upper
7 H233140400 Pipe W.A., Lower
8 N16/J460104 Flange, Split
9 N01/5890878 Bolt, Cyl. Head
9 N01/5891214 Bolt, Cyl. Hd.
10 N03/0020018 Washer, Pln.
11 N10/2003335 O-Ring
12 N01/5890830 Bolt, Cyl. Hd.
12 N01/5890842 Bolt, Cylinder Head
13 H233140900 Transmission
14 N10/2015003 O-Ring
15 N01/0381754 Bolt, Hex.
15 N01/0381754 Bolt, Hex.
16 N03/0100031 Washer, Pln.
16 N03/0100031 Washer, Pln.
17 N03/1310016 Washer, Spr.
17 N03/1310016 Washer, Spr.
18 H233141000 Regulating Motor
18 H233141001 Regulating Motor
19 H233141100 Turning Joint
20 N01/0233590 Bolt, Hex.
22 N03/1310014 Washer, Spr.
23 H233141200 Hose, Assy
24 H233141300 Hose, Assy
25 99T093222 Hose, Assy
25 99T092222 Hose, Assy
26 99S092218 Hose, Assy
27 N16/K214454 Connector
28 N10/2001321 O-Ring
29 N16/K114342 Connector
30 N10/2001322 O-Ring
31 H343201401 Tee
32 N16/K214455 Rekor
33 N10/2001122 O-Ring
34 N16/K214472 Connector
34 N16/K214473 Connector
35 N10/2002231 O-Ring
36 99S093214 Hose, Assy
37 97Q91209 Hose, Assy
38 97T091220 Hose, Assy
39 H233141400 Connector
40 N10/2001122 O-Ring
41 N16/K114348 Connector
42 N10/2001322 O-Ring
43 N01/0381742 Bolt, Hex.
44 N03/1310016 Washer, Spr.
45 N03/0800003 Washer, Pln.
