Каталог запасных частей к технике: Hidromek HMK 200W. LOWER FRAME HYDRAULIC MOUNTING
1
1
1
2
2
2
3
3
3
4
4
5
5
6
7
8
9
10
11
11
12
14
15
16
17
18
18
19
20
20
21
22
22
23
24
24
25
26
26
27
28
28
29
30
30
31
32
33
34
34
35
36
37
38
38
39
40
41
41
42
43
44
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
61
62
62
63
64
64
65
66
66
67
68
68
69
70
70
71
72
72

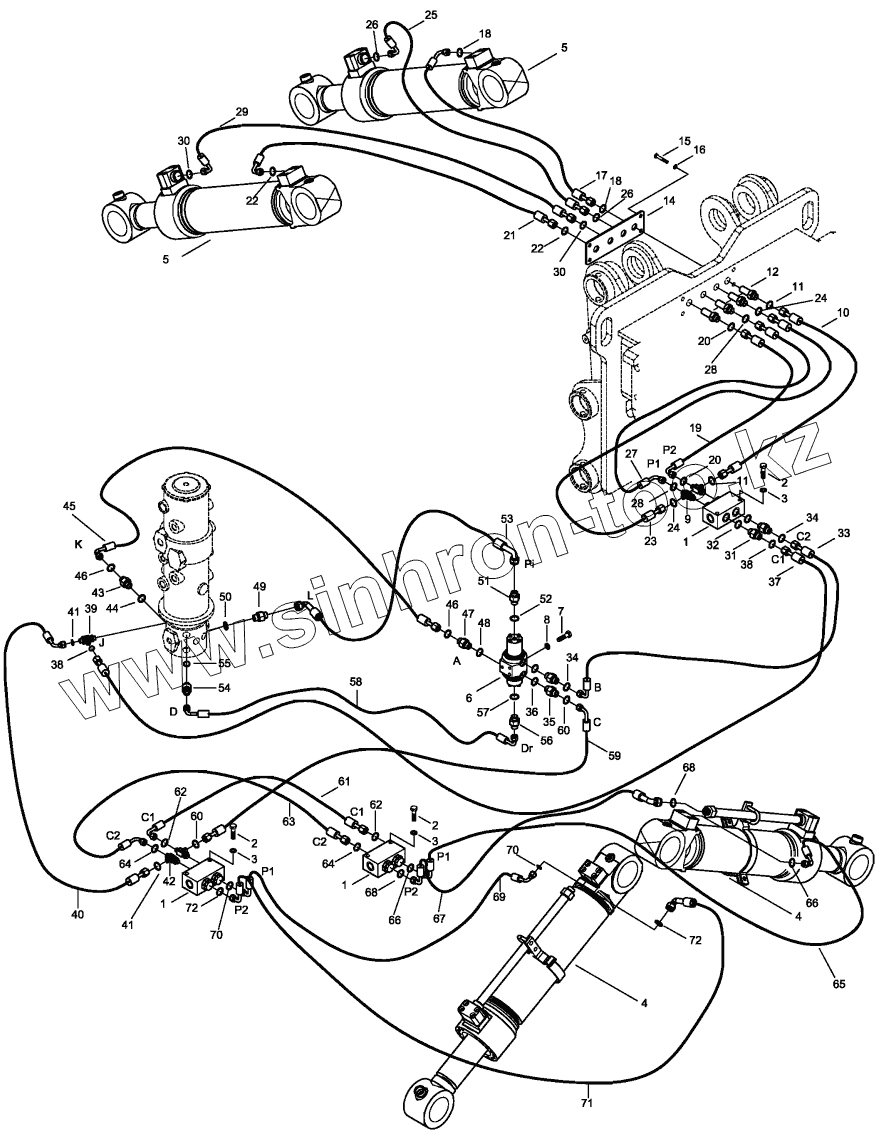

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H233120201 | Pilot Check Valve | |
| 2 | N01/0380698 | Bolt, Hex. | |
| 3 | N03/1310011 | Washer, Spr. | |
| 4 | H233120300 | Outrig. Cyl. Mnt. | |
| 5 | H233123400 | Dozer Cyl. Mount. | |
| 6 | H233125500 | Selector Valve | |
| 7 | N01/0380722 | Bolt, Hex. | |
| 8 | N03/1310011 | Washer, Spr. | |
| 9 | H323102100 | Tee | |
| 10 | 99Q073715 | Hose Assy | |
| 11 | N10/2001216 | O-Ring | |
| 12 | N16/K600303 | Rekor | |
| 14 | H233125600 | Plate | |
| 15 | N01/0232438 | Bolt, Hex. | |
| 16 | N03/1310011 | Washer, Spr. | |
| 17 | 99R173712 | Hose Assy | |
| 18 | N10/2001216 | O-Ring | |
| 19 | 99N073715 | Hose Assy | |
| 20 | N10/2001216 | O-Ring | |
| 21 | 99R173712 | Hose Assy | |
| 22 | N10/2001216 | O-Ring | |
| 23 | 99N073715 | Hose Assy | |
| 24 | N10/2001216 | O-Ring | |
| 25 | 99Q173714 | Hose Assy | |
| 26 | N10/2001216 | O-Ring | |
| 27 | 99Q073715 | Hose Assy | |
| 28 | N10/2001216 | O-Ring | |
| 29 | 99Q173714 | Hose Assy | |
| 30 | N10/2001216 | O-Ring | |
| 31 | N16/K130124 | Connector | |
| 32 | N10/2001724 | O-Ring | |
| 33 | 99Q073745 | Hose Assy | |
| 34 | N10/2001216 | O-Ring | |
| 35 | N16/K130123 | Connector | |
| 36 | N10/2002436 | O-Ring | |
| 37 | 99N073722 | Hose Assy | |
| 38 | N10/2001216 | O-Ring | |
| 39 | H323102100 | Tee | |
| 40 | 99Q073726 | Hose Assy | |
| 41 | N10/2001216 | O-Ring | |
| 42 | H323102100 | Tee | |
| 43 | N16/K130124 | Connector | |
| 44 | N10/2001724 | O-Ring | |
| 45 | 99Q073726 | Hose Assy | |
| 46 | N10/2001216 | O-Ring | |
| 47 | N16/K130123 | Connector | |
| 48 | N10/2002436 | O-Ring | |
| 49 | N16/K114354 | Connector | |
| 50 | N10/2001724 | O-Ring | |
| 51 | N16/K114341 | Connector | |
| 52 | N10/2001024 | O-Ring | |
| 53 | 99U091225 | Hose Assy | |
| 54 | N16/K114342 | Connector | |
| 55 | N10/2001322 | O-Ring | |
| 56 | N16/K114356 | Connector | |
| 57 | N10/2001024 | O-Ring | |
| 58 | 99S092225 | Hose Assy | |
| 59 | 99Q073710 | Hose Assy | |
| 60 | N10/2001216 | O-Ring | |
| 61 | 99Q073710 | Hose Assy | |
| 62 | N10/2001216 | O-Ring | |
| 63 | 99S073710 | Hose Assy | |
| 64 | N10/2001216 | O-Ring | |
| 65 | 99V173728 | Hose Assy | |
| 66 | N10/2001216 | O-Ring | |
| 67 | 99Q173721 | Hose Assy | |
| 68 | N10/2001216 | O-Ring | |
| 69 | 99Q173721 | Hose Assy | |
| 70 | N10/2001216 | O-Ring | |
| 71 | 99T173732 | Hose Assy | |
| 72 | N10/2001216 | O-Ring |
