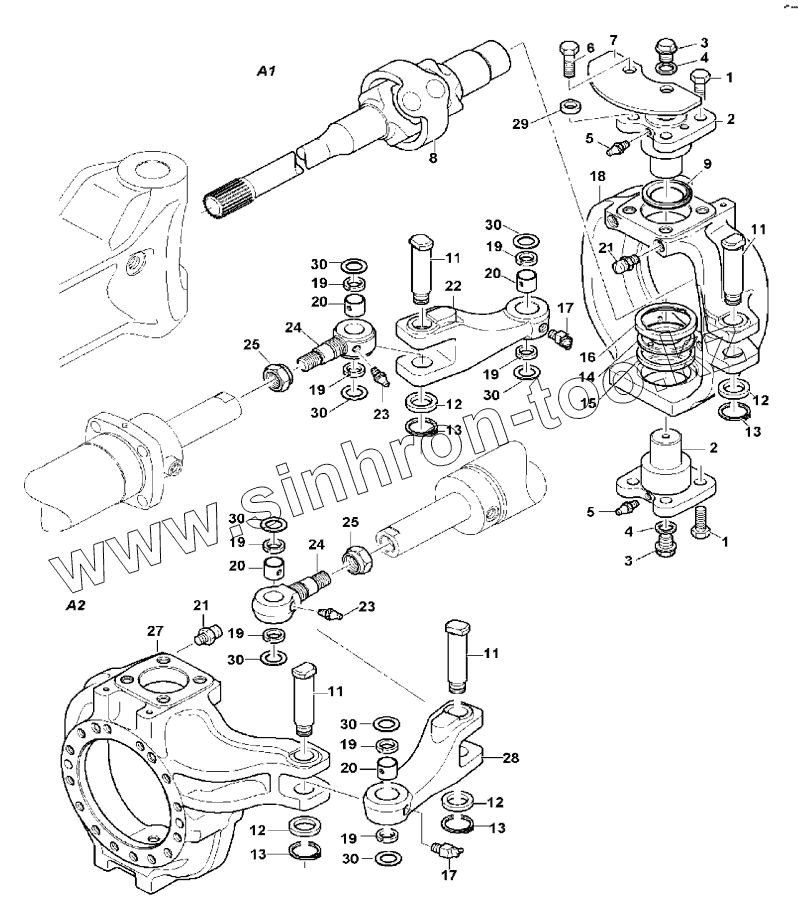

Каталог запасных частей к технике: Hidromek HMK 200W. KNUCKLE - FRONT AXLE
1
1
2
2
3
3
4
4
5
5
6
7
8
9
9
9
9
9
9
9
11
11
11
11
12
12
12
12
13
13
13
13
14
15
16
17
17
19
19
19
19
19
19
19
19
20
20
20
20
21
21
23
23
24
24
25
25
27
28
29
30
30
30
30
30
30
30
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H239032083 | Bolt | |
| 2 | H239032084 | Axle Pin | |
| 3 | H239032085 | Plug | |
| 4 | H239032086 | Washer | |
| 5 | H239032087 | Grease Nipple | |
| 6 | H239032088 | Bolt | |
| 7 | H239032089 | Cover | |
| 8 | H239032124 | Shaft | |
| 9 | H239032091 | KIT, Shim | |
| 9 | H239032092 | Shim | |
| 9 | H239032093 | Shim | |
| 9 | H239032094 | Shim | |
| 9 | H239032095 | Shim | |
| 9 | H239032096 | Shim | |
| 9 | H239032097 | Shim | |
| 11 | H239032098 | Pin | |
| 12 | H239032099 | Washer, HV | |
| 13 | H239032100 | Retaining Ring | |
| 14 | H239032101 | Bearing Washer | |
| 15 | H239032102 | Bearing Washer | |
| 16 | H239032103 | Rebaund Strip | |
| 17 | H239032104 | Grease Nipple | |
| 19 | H239032106 | Seal, Grease | |
| 20 | H239032107 | Bushing | |
| 21 | H239032108 | Ventling Plug | |
| 23 | H239032087 | Grease Nipple | |
| 24 | H239032111 | Rod | |
| 25 | H239032112 | Nut | |
| 27 | H239032145 | Knuckle Assy | |
| 28 | H239032146 | Push Rod | |
| 29 | H239032113 | Washer | |
| 30 | H239032114 | KIT, SHIM | |
| 30 | H239032115 | Shim | |
| 30 | H239032116 | Shim |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
