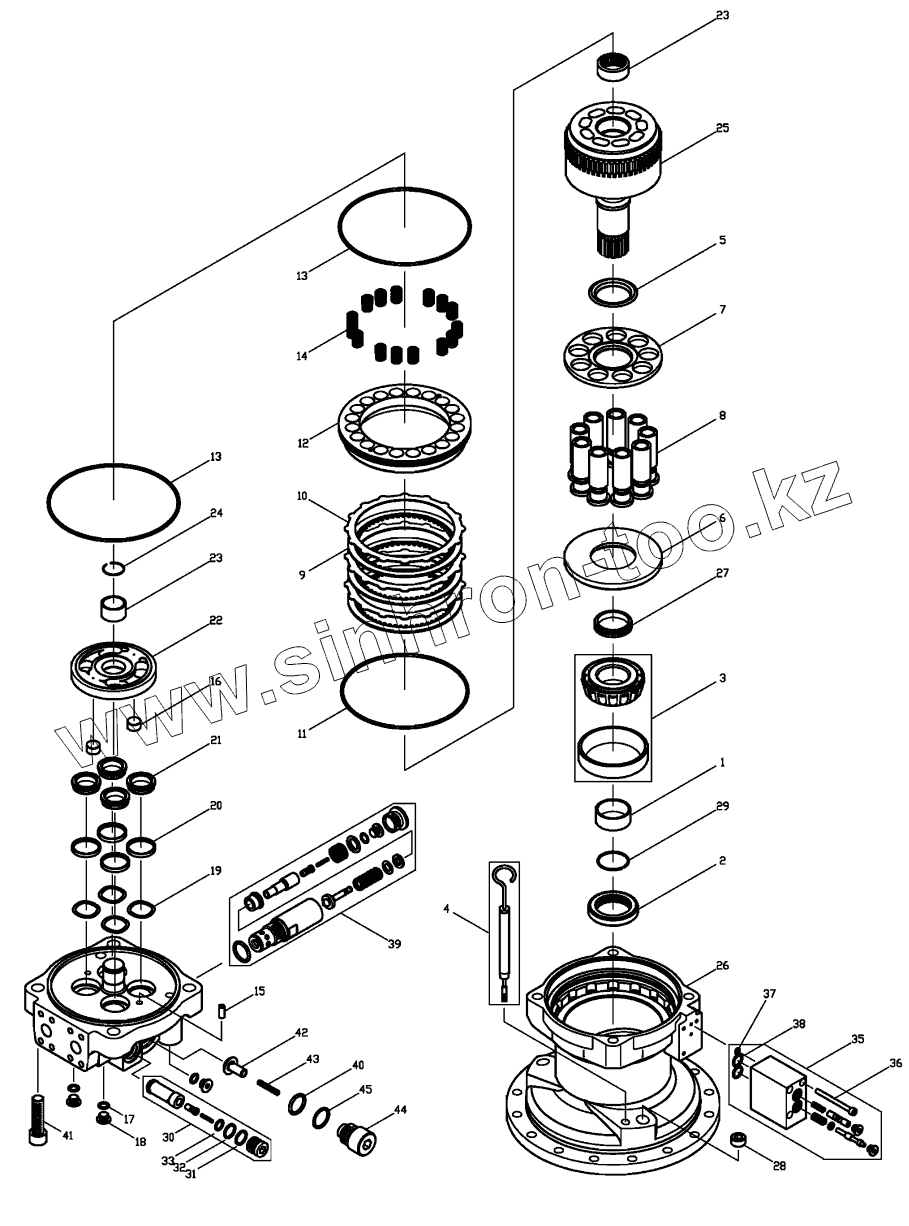

Каталог запасных частей к технике: Hidromek HMK 200W. HYDRAULIC OIL MOTOR-SWING UNIT

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

13

14

15

16

17

18

19

20

21

22

23

23

24

25

26

27

28

29

30

31

32

33

35

36

37

38

39

40

41

42

43

44

45

Позиция на иллюстрации	Заводской номер детали		Название детали
H343001900	H343001900		Swing Motor
1	H349020001		Inner Ring
2	H349020002		Oil Seal
3	H349020003		Tapero Roller Being
4	H349020004		Leel Gauge Ass'y
5	H349020005		Backing, Spring
6	H349020006		Cam Plate
7	H349020007		Return Plate
8	H349020008		Piston Ass'y
9	H349020009		Lining Plate
10	H349020010		Plate
11	H349020011		O-Ring
12	H349020012		Piston
13	H349020013		O-Ring
14	H349020014		Spring
15	H349020015		Pallel Pin
16	H349020016		Piston
17	H349020017		O-Ring
18	H349020018		Cap
19	H349020019		Scrowave
20	H349020020		Teflon Ring
21	H349020021		Bush
22	H349020022		Balance Plate
23	H349020023		Needle Being
24	H349020024		Snap Ring
25	H349020025		Cylinder Ass'y
26	H349020026		Housing
27	H349020027		Coll
28	H349020028		Plug
29	H349020029		Snap Ring
30	H349020030		Bypass Valve Ass'y
31	H349020031		Back Up Ring
32	H349020032		O-Ring
33	H349020033		O-Ring
34	H349020034		Cover
35	H349020035		Cover
36	H349020036		Hex. Socket Bolt
37	H349020037		O-Ring
38	H349020038		O-Ring
39	H349020039		Relief Valve
40	H349020040		O-Ring
41	H349020041		Hex. Socket Bolt
42	H349020042		Check
43	H349020043		Spring
44	H349020044		Cap
45	H349020045		Back Up Ring
