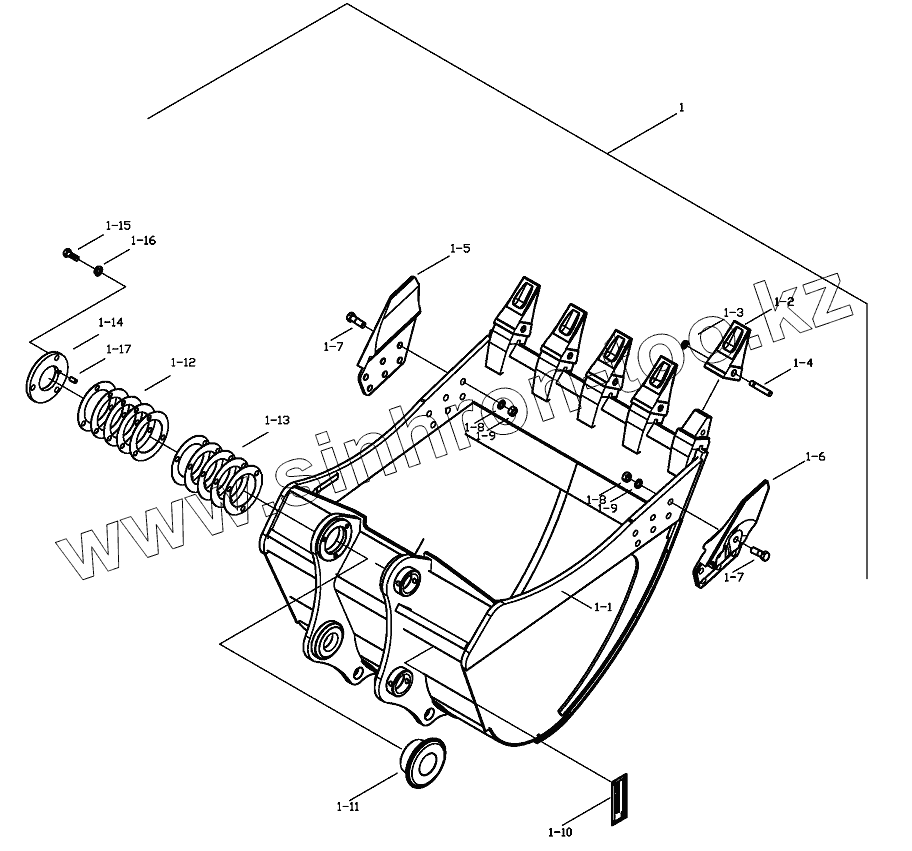

Каталог запасных частей к технике: Hidromek HMK 200W. HEAVY DUTY BUCKET

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1A
1A
1B
1B
1С
1С
1D
1D
1E
1E
1F
1F
1.1A
1.1A
1.1B
1.1B
1.1C
1.1C
1.1D
1.1D
1.1E
1.1E
1.1F
1.1F
1-2
1-2
1-2
1-2
1-3
1-3
1-3
1-3
1-4
1-4
1-4
1-4
1-5
1-6
1-7
1-7
1-8
1-8
1-9
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
Позиция на иллюстрации Заводской номер детали Название детали
1A H340325000 H. Duty. Buc. Assy
1A H340325001 H. Duty. Buc. Ass'y
1B H340330000 H. Duty. Buc. Assy
1B H340330001 H. Duty. Buc. Ass'y
1С H340335000 H. Duty. Buc. Assy
1С H340335001 H. Duty. Buc. Ass'y
1D H340340000 H. Duty. Buc. Assy
1D H340340001 H. Duty. Buc. Ass'y
1E H345310000 H. Duty. Buc. Assy
1E H345310001 H. Duty. Buc. Ass'y
1F H340350000 H. Duty. Buc. Assy
1F H340350001 H. Duty. Buc. Ass'y
1.1A H340325100 H. Duty. Buc. W.A.
1.1A H340325101 H. Duty. Buc. W.A.
1.1B H340330100 H. Duty. Buc. W.A.
1.1B H340330101 H. Duty. Buc. W.A.
1.1C H340335100 H. Duty. Buc. W.A.
1.1C H340335101 H. Duty. Buc. W.A.
1.1D H340340100 H. Duty. Buc. W.A.
1.1D H340340101 H. Duty. Buc. W.A.
1.1E H345310100 H. Duty. Buc. W.A.
1.1E H345310101 H. Duty. Buc. W.A.
1.1F H340350100 H. Duty. Buc. W.A.
1.1F H340350101 H. Duty. Buc. W.A.
1-2 H345302800 Point
1-2 H345302800 Point
1-2 H345302800 Point
1-2 H345302800 Point
1-3 H345302900 Washer, Tooth
1-3 H345302900 Washer, Tooth
1-3 H345302900 Washer, Tooth
1-3 H345302900 Washer, Tooth
1-4 H345303000 Pin, Tooth
1-4 H345303000 Pin, Tooth
1-4 H345303000 Pin, Tooth
1-4 H345303000 Pin, Tooth
1-5 H345303100 Cutter, Slide, R/H
1-6 H345303200 Cutter, Slide, L/H
1-7 N01/0385028 Bolt, Hex.
1-8 N03/1310017 Washer, Spr.
1-9 N02/3580410 Nut, Hex.
1-10 H347000600 Decal, Attachment
1-11 H345303501 Spacer
1-12 H345303502 Spacer
1-13 H345002400 Shim
1-14 H345002500 Shim
1-15 H345303600 Plate
1-16 N01/0381226 Bolt, Hex.
1-17 N03/1310014 Washer, Spr.
1-18 H345303700 Pin, Lock
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
