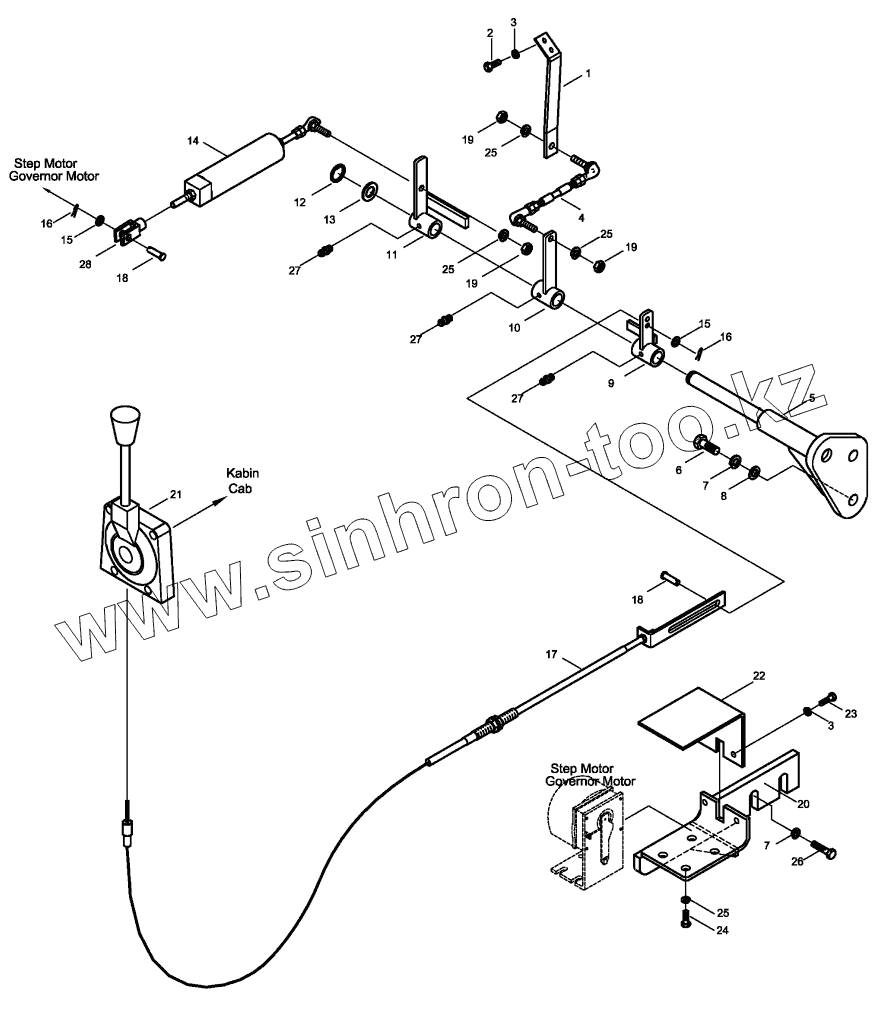

Каталог запасных частей к технике: Hidromek HMK 200W. ENGINE CONTROL MOUNTING
1
2
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
16
17
18
18
19
19
19
20
21
22
23
24
25
25
25
25
26
27
27
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H342600200 | Lever, Throttle | |
| 2 | N01/0231478 | Bolt, Hex. | |
| 3 | N03/1310008 | Washer, Spr. | |
| 4 | H342600300 | Link Assy | |
| 5 | H342600500 | Bracket W.A. | |
| 6 | N01/0232846 | Bolt, Hex. | |
| 7 | N03/1310012 | Washer, Spr. | |
| 8 | N03/0100023 | Washer, Pln. | |
| 9 | H342600900 | Lever, W.A. | |
| 10 | H342601300 | Lever, W.A. | |
| 11 | H342601600 | Lever, W.A. | |
| 12 | N05/0760014 | Snap Ring | |
| 13 | H342604300 | Washer, Pln | |
| 14 | H342602000 | Damper Assy | |
| 15 | N03/0100013 | Washer, Pln. | |
| 16 | N06/1001615 | Pin, Split | |
| 17 | H342602801 | Cabble, Accel | |
| 18 | H342604200 | Pin | |
| 19 | N02/3570182 | Nut, Hex. | |
| 20 | H342603000 | Braket, | |
| 21 | F31/13000 | Lever Ass'y | |
| 22 | H342604400 | Cover, | |
| 23 | N01/0221478 | Bolt, Hex. | |
| 24 | N01/0232138 | Bolt, Hex. | |
| 25 | N03/1310010 | Washer, Spr. | |
| 26 | N01/0232858 | Bolt, Hex. | |
| 27 | N08/1210020 | Lubricants | |
| 28 | F99/60100 | Knurling Tool |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
