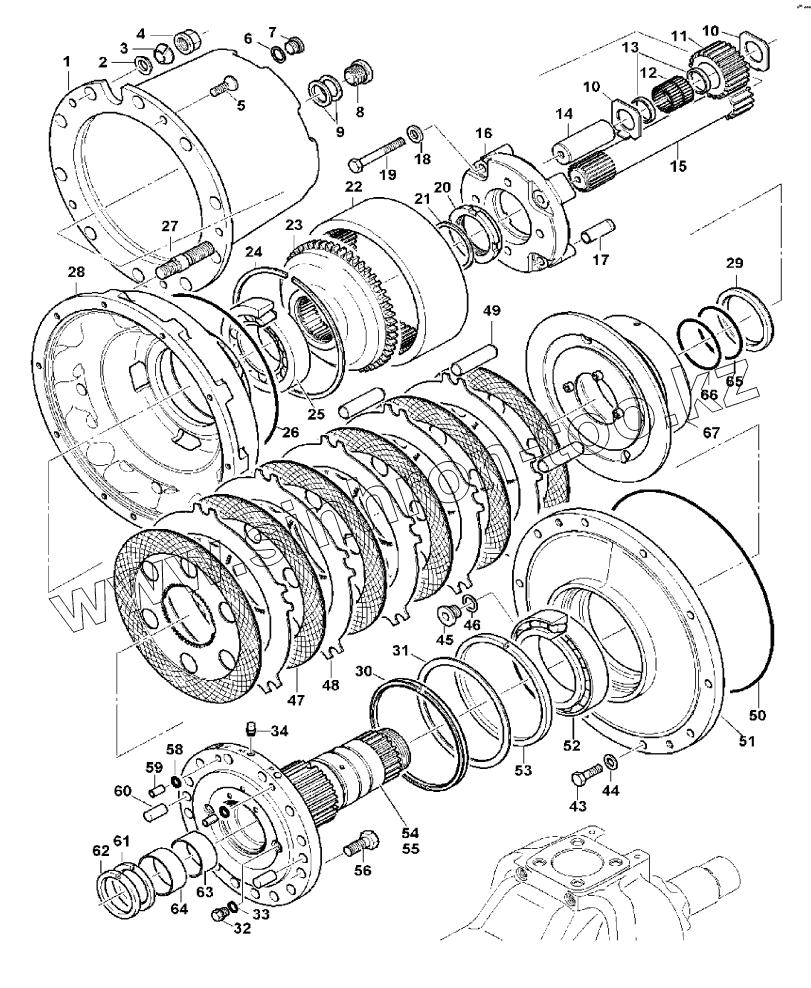

Каталог запасных частей к технике: Hidromek HMK 200W. DRIVE ASSEMBLY - FRONT AXLE
1
2
3
4
5
6
7
8
9
9
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
21
21
21
21
21
21
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
43
44
45
46
47
48
49
50
51
52
53
54
55
56
58
59
60
61
62
63
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H239032151 | Hub, Wheel | |
| 2 | H239032152 | Centering Ring | |
| 3 | H239032153 | Conical Ring | |
| 4 | H239032154 | Assembling Nut | |
| 5 | H239032155 | Bolt | |
| 6 | H239032156 | Washer | |
| 7 | H239032157 | Plug | |
| 8 | H239032158 | Plug | |
| 9 | H239032159 | KIT, Shim | |
| 9 | H239032160 | Shim | |
| 9 | H239032161 | Shim | |
| 9 | H239032162 | Shim | |
| 10 | H239032163 | Buffer Disc | |
| 11 | H239032164 | Planet Gear | |
| 12 | H239032165 | Bearing | |
| 13 | H239032166 | Spacer Ring | |
| 14 | H239032167 | Pin, Planet | |
| 15 | H239032168 | Sun Gear | |
| 16 | H239032169 | Planet Cage | |
| 17 | H239032170 | Bushing | |
| 18 | H239032171 | Washer | |
| 19 | H239032172 | Bolt | |
| 20 | H239032173 | Nut | |
| 21 | H239032179 | Shim | |
| 21 | H239032184 | Shim | |
| 21 | H239032183 | Shim | |
| 21 | H239032182 | Shim | |
| 21 | H239032181 | Shim | |
| 21 | H239032180 | Shim | |
| 21 | H239032178 | Shim | |
| 21 | H239032177 | Shim | |
| 21 | H239032176 | Shim | |
| 21 | H239032175 | Shim | |
| 21 | H239032174 | KIT, Shim | |
| 22 | H239032185 | Gear, Annulus Ring | |
| 23 | H239032186 | Carrier, Annulus | |
| 24 | H239032187 | Snap Ring | |
| 25 | H239032188 | Bearing, Roller | |
| 26 | H239032189 | O-Ring | |
| 27 | H239032190 | Radbolzen | |
| 28 | H239032191 | Gear Hub | |
| 29 | H239032192 | Washer | |
| 30 | H239032193 | V-Ring | |
| 31 | H239032194 | Thrust Washer | |
| 32 | H239032195 | Plug | |
| 33 | H239032196 | Sealing Ring | |
| 34 | H239032082 | Ventilation Plug | |
| 34 | H239032082a | Bleeder | |
| 43 | H239032198 | Bolt | |
| 44 | H239032171 | Washer | |
| 45 | H239032157 | Plug | |
| 46 | H239032156 | Washer | |
| 47 | H239032202 | inside Lamella | |
| 48 | H239032203 | Outside Lamella | |
| 49 | H239032204 | Pin | |
| 50 | H239032205 | O-Ring | |
| 51 | H239032206 | Hub, Wheel | |
| 52 | H239032207 | Conical Bearing | |
| 53 | H239032208 | Oil Seal | |
| 54 | H239032209 | Steering Axle | |
| 55 | H239032210 | Steering Axle | |
| 56 | H239032021 | Bolt | |
| 58 | H239032212 | O-Ring | |
| 59 | H239032213 | Bushing | |
| 60 | H239032214 | Pin | |
| 61 | H239032215 | Oil Seal | |
| 62 | H239032216 | Oil Seal | |
| 63 | H239032217 | Bushing | |
| 64 | H239032218 | Bushing | |
| 65 | H239032219 | O-Ring | |
| 66 | H239032220 | O-Ring | |
| 67 | H239032221 | Brake Piston Assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
