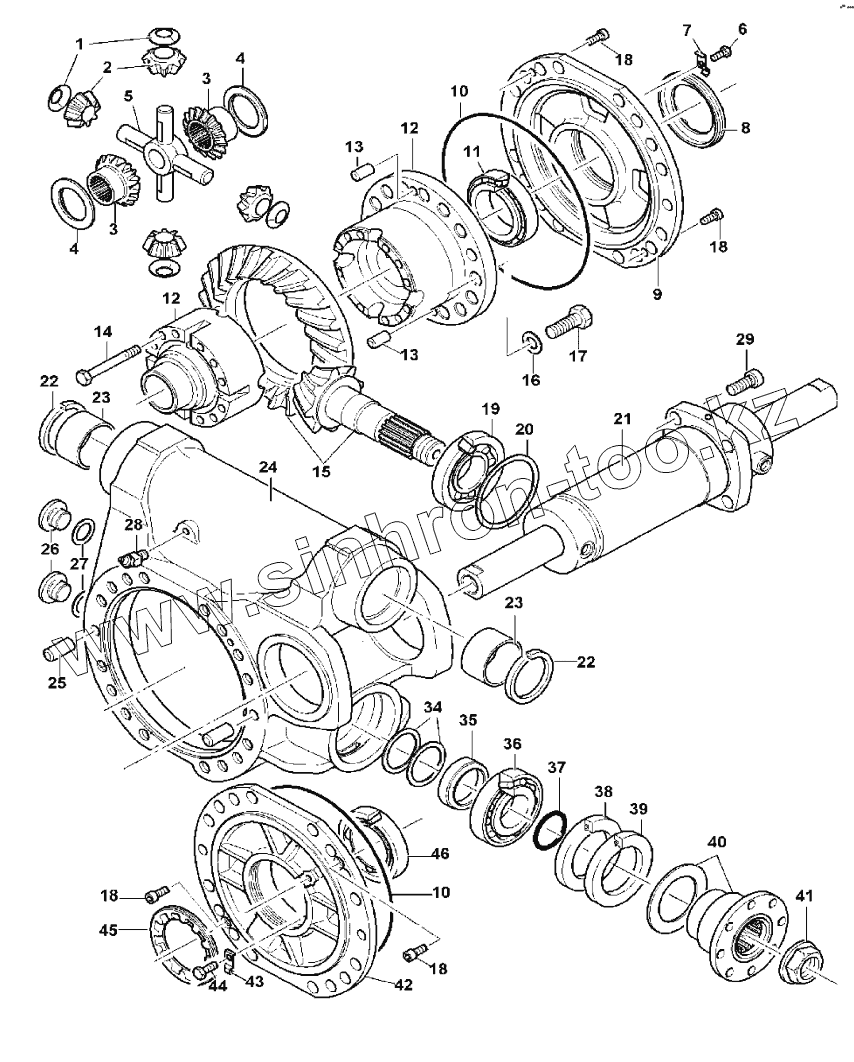

Каталог запасных частей к технике: Hidromek HMK 200W. DIFFERENTIAL-FRONT AXLE
H239032063
1
2
3
3
4
4
4
4
4
4
5
6
7
8
9
10
10
11
12
12
13
13
14
15
16
17
18
18
18
18
19
20
20
20
20
21
21
22
22
23
23
24
25
26
27
28
29
34
34
34
34
34
34
34
34
34
34
34
34
34
34
35
36
37
38
39
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| H239032065 | H239032065 | Pin, Slot | |
| H239032064 | H239032064 | Data Plate | |
| H239032063 | H239032063 | Differential Piston Assy | |
| 1 | H239032001 | Thrust Washer | |
| 2 | H239032002 | Conical Gear | |
| 3 | H239032003 | Differential Pinion | |
| 4 | H239032007 | Spacer | |
| 4 | H239032004 | KIT, Shim | |
| 4 | H239032005 | Spacer | |
| 4 | H239032006 | Spacer | |
| 4 | H239032008 | Spacer | |
| 5 | H239032009 | Spider | |
| 6 | H239032010 | Bolt | |
| 7 | H239032011 | Bracket,Safe | |
| 8 | H239032012 | Nut | |
| 9 | H239032013 | Flange | |
| 10 | H239032014 | O-Ring | |
| 11 | H239032015 | Bearing, Roller | |
| 12 | H239032016 | Differential Piston | |
| 13 | H239032017 | Pin | |
| 14 | H239032018 | Bolt | |
| 15 | H239032019 | Gear, Crown Wheel Pinion | |
| 16 | H239032020 | Washer | |
| 17 | H239032021 | Bolt | |
| 18 | H239032022 | Bolt | |
| 19 | H239032023 | Rulman | |
| 20 | H239032026 | Shim | |
| 20 | H239032024 | KIT, Shim | |
| 20 | H239032025 | Shim | |
| 20 | H239032027 | Shim | |
| 21 | H239032028a | Cylinder | |
| 21 | H239032028 | Cylinder | |
| 22 | H239032029 | Seal | |
| 23 | H239032030 | Bushing | |
| 24 | H239032031 | Differantial Housing | |
| 25 | H239032032 | Pim | |
| 26 | H239032033 | Plug | |
| 27 | H239032034 | Washer | |
| 28 | H239032035 | Grease Nipple | |
| 29 | H239032036 | Bolt | |
| 34 | H239032039 | Sim | |
| 34 | H239032037 | KIT, Shim | |
| 34 | H239032050 | Sim | |
| 34 | H239032049 | Sim | |
| 34 | H239032048 | Sim | |
| 34 | H239032047 | Sim | |
| 34 | H239032045 | Sim | |
| 34 | H239032038 | Sim | |
| 34 | H239032040 | Sim | |
| 34 | H239032041 | Sim | |
| 34 | H239032042 | Sim | |
| 34 | H239032043 | Sim | |
| 34 | H239032044 | Sim | |
| 34 | H239032046 | Sim | |
| 35 | H239032051 | Spacer | |
| 36 | H239032052 | Roller Bearing | |
| 37 | H239032053 | O-Ring | |
| 38 | H239032054 | Yaglama Bilezigi | |
| 39 | H239032055 | Yaglama Bilezigi | |
| 40 | H239032056 | Shaft Connector | |
| 41 | H239032057 | Nut | |
| 42 | H239032058 | Flange | |
| 43 | H239032011 | Bracket,Safe | |
| 44 | H239032010 | Bolt | |
| 45 | H239032012 | Nut | |
| 46 | H239032062 | Roller Bearing |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
