Каталог запасных частей к технике: Hidromek HMK 200W. DECAL MOUNTING (ENGLISH)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
45
46
47
48
49
50

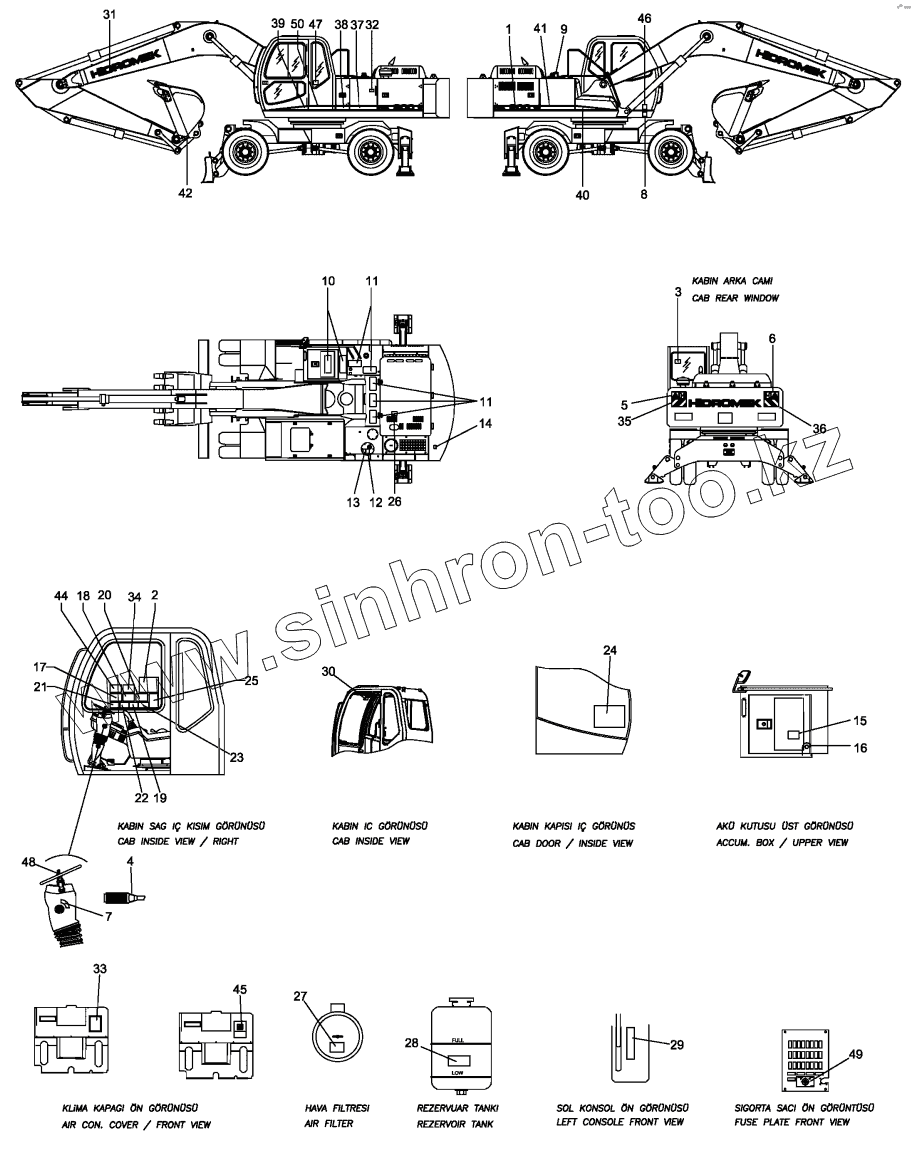

Позиция на иллюстрации Заводской номер детали Название детали
1 H237000201 Decal, Model
2 H237011100 Lifting Capacity
3 H347000500 Emergency Exit
4 H237001000 Forward-Reverse
5 H347000800 Keep Away, L/H
6 H347000900 Keep Away, R/H
7 H237000900 Mode Selection
8 H347001101 Name Plate
9 H347011200 Fuel Decal
10 H347001300 Anti Skid Strip
11 H347001400 Anti Skid Strip
12 H347011500 Decal, Hyd. Oil
13 H347011600 Wning Decal
14 H347011700 Wning Decal
15 H347011800 Accum. Wn. Decal
16 H347001900 Master Switch On/Off
17 H347012000 Before Operating
18 H347012100 Wning Decal
19 H347012200 Wning Decal
20 H347012300 Decal, Safe Operation
21 H347002400 Decal, Operation
22 H347012500 Decal, Air Bleeding
23 H347012600 Decal, Throttle Cable
24 H237010401 Inspection
25 H237010600 Technical Spec.
26 H347012900 Wning Decal, Hot
27 H347013001 Decal, Air Filter
28 H347013100 Reservoir Tank, Wn.
29 H347013200 Decal, Safety Lock.
30 H347013300 Wning Decal
31 H347005101 Decal, Logo
32 H347013500 Decal, Hyd. Oil Level
33 H237010500 Fuse
34 H237010800 Warninig Decal
35 H347003900 Decal, Reflector
36 H347004000 Decal, Reflector
37 H347005302 Hyd. Oil Level
38 H347004702 Tool Box
39 H347004802 Cab Door
40 H347004902 Accum. Box
41 H347005701 Fuel Tank
42 H347000600 Decal, Attachment
44 H237000700 Dozer-Outrig. Operation
45 Y06/11340 Decal, Electric Wn.
46 H347005800 Sound Level, Outside
47 H347005900 Sound Level, Inside
48 H237001200 HMK
49 H347003800 Decal, Auto-Manuel
50 H347005202 Cab
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
