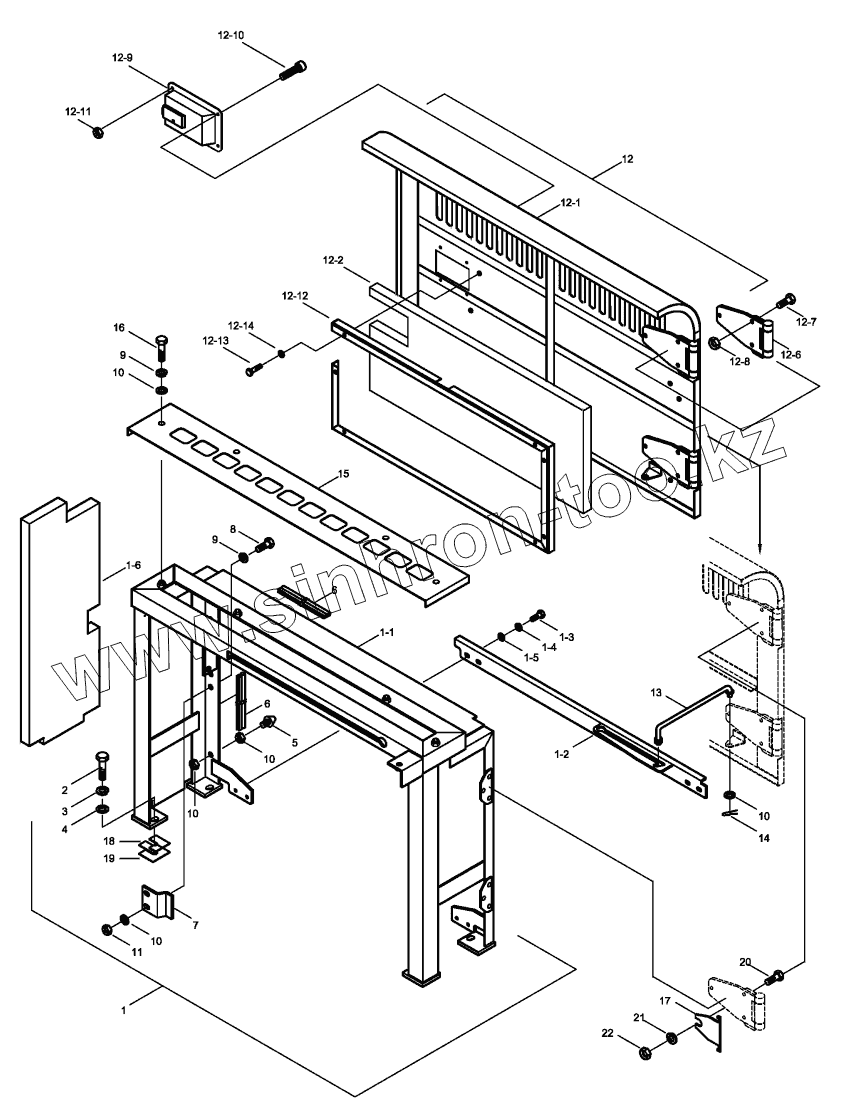

Каталог запасных частей к технике: Hidromek HMK 200W. COWLING MOUNTING
1
1-1
1-2
1-3
1-4
1-5
1-6
2
3
4
5
6
6
7
8
9
9
10
10
10
10
10
11
12
12-1
12-2
12-6
12-7
12-8
12-9
12-10
12-11
12-12
12-13
12-14
13
14
15
16
17
18
19
20
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H341100201 | Support Assy, R/H | |
| 1-1 | H341100301 | Support W.A., R/H | |
| 1-2 | H341102400 | Bracket, W.A. | |
| 1-3 | N01/0232114 | Bolt, Hex. | |
| 1-4 | N03/1310010 | Washer, Spr. | |
| 1-5 | N03/0100016 | Washer, Pln. | |
| 1-6 | H341102701 | Sponge | |
| 2 | N01/0232858 | Bolt, Hex. | |
| 3 | N01/1310012 | Washer, Spr. | |
| 4 | N03/0100023 | Washer, Pln. | |
| 5 | H341102900 | Stopper | |
| 6 | 98Z020010 | Wheather Strip | |
| 7 | H341103101 | Plate, Lock | |
| 8 | N01/0232462 | Bolt, Hex. | |
| 9 | N03/1310011 | Washer, Spr. | |
| 10 | N03/0100020 | Washer, Pln. | |
| 11 | N02/3570206 | Nut, Hex. | |
| 12 | H341103301 | Side DoorAssy, R/H | |
| 12-1 | H341103401 | Side DoorW.A., R/H | |
| 12-2 | H341104801 | Sponge | |
| 12-6 | H343407300 | Hinge | |
| 12-7 | N01/0080182 | Bolt | |
| 12-8 | N02/5900050 | Nut, Hex. | |
| 12-9 | H343407600 | Lock Assy | |
| 12-10 | N01/1661862 | Bolt, Cylinder Head | |
| 12-11 | N02/5880026 | Nut, Hex. | |
| 12-12 | H341130700 | Sash, Sponge | |
| 12-13 | N01/0221514 | Bolt, Hex. | |
| 12-14 | N03/0100013 | Washer, Pln. | |
| 13 | H341105300 | B, Lock | |
| 14 | N06/1002015 | Pin, Split | |
| 15 | H341105400 | Cover, Radiator | |
| 16 | N01/0232438 | Bolt, Hex. | |
| 17 | H341114201 | Shim | |
| 18 | H341114300 | Shim | |
| 19 | H341114400 | Shim | |
| 20 | N01/0380242 | Bolt, Hex. | |
| 21 | N03/1310008 | Washer, Spr. | |
| 22 | N02/3570158 | Nut, Hex. |
