Каталог запасных частей к технике: Hidromek HMK 200W. CAB

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
5
6
6
6
6
7
7
7
7
8
9
10
11
12
12-1
12-2
13
13
14
15
16
17
18
19
20
21
22
22
23
24
25
27
28
30
30
31
32
33
34
35
36
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
55
55
55
55
56
57
58
59
60
61
62
63
64
65
65
66
66

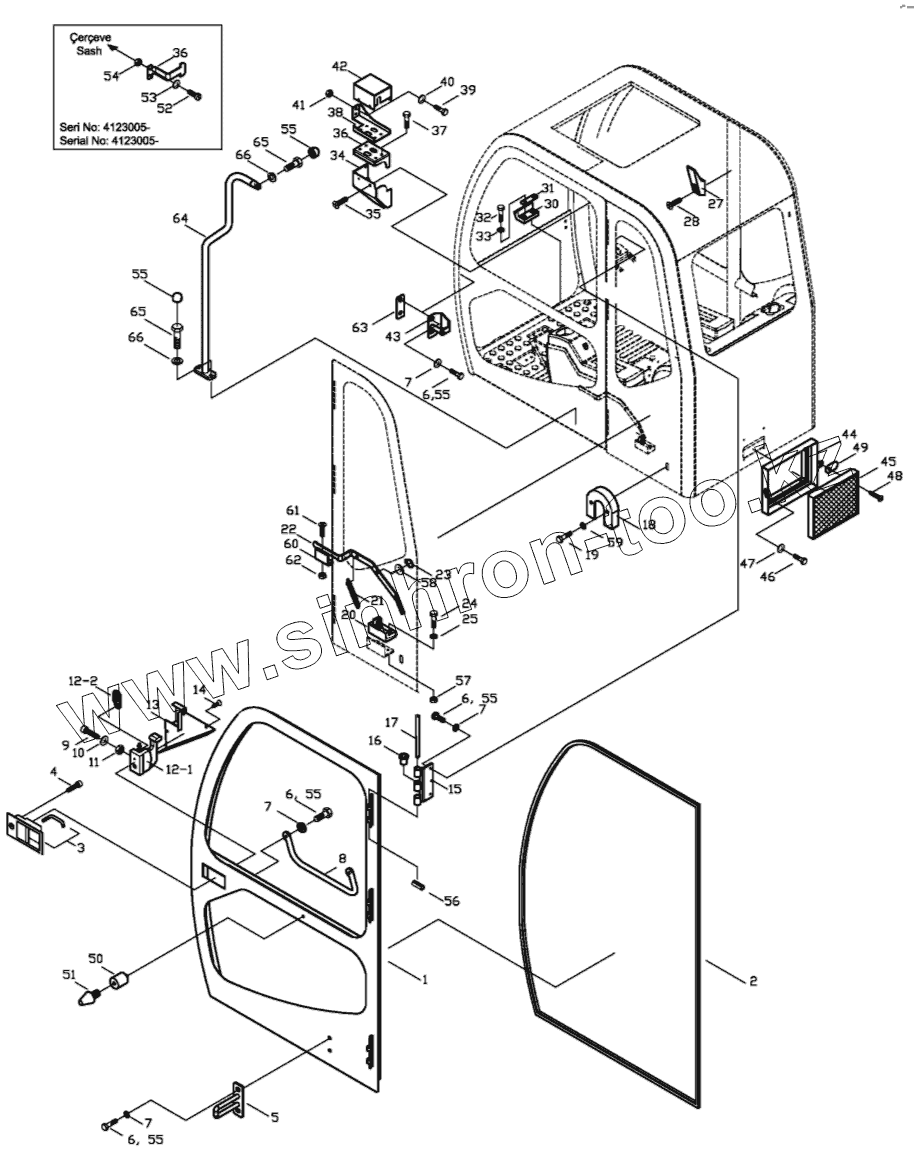

Позиция на иллюстрации Заводской номер детали Название детали
1 H346042100 Door, W.A.
1 H346042101 Door, W.A.
2 H346045000 Dust Rubber, Door
3 H346043800 Built-In Lock
4 N04/1672455 Bolt
5 H346045101 Mate, Back Lock
6 N01/0222114 Bolt, Hex.
7 N03/0100017 Washer, Pln.
8 H346044000 Door Handle, Inside
9 N01/5870350 Bolt
10 N03/0100013 Washer, Pln.
11 N02/3570158 Nut, Hex.
12 H346065500 Lock, Inside
12-1 H346065600 Lock, Inside
12-2 H346065700 Lock Plate
13 H346044100 Plate, Inside Lock
13 H346044101 Plate, Inside Lock
14 N04/9530350 Bolt
15 H346031900 Hinge
16 810/40030 Bushing, Rubber
17 H346045800 Pin, Hinge
18 H346062300 Bracket, Back Lock
19 N04/1671838 Bolt
20 H346036401 Back Lock
21 H346036300 Spring, Back Lock
22 H346036000 Lever, Back Lock
22 H346036001 Lever, Back Lock
23 N05/0020015 Retaining Ring
24 N01/0222162 Bolt, Hex.
25 N02/0020011 Washer,Pln.
27 F32/18690 Hanger
28 N04/1150359 Bolt
30 H346039000 Support
30 H346039001 Support
31 H346039100 Plate
32 N01/0221538 Bolt, Hex.
33 N03/0100013 Washer, Pln.
34 H346037200 Bracket
35 N04/1150349 Bolt
36 H346035400 Bracket
36 H346035401 Bracket
37 N01/0221514 Bolt, Hex.
38 H346047000 Bracket
39 N01/0221514 Bolt, Hex.
40 N03/0100013 Washer, Pln.
41 N02/5900050 Nut, Hex.
42 H346037300 Bracket
43 H346037400 Striker
44 H346034300 Bracket, Filter
45 H346069000 Filter Ass'y.
46 N01/0221478 Bolt, Hex.
47 N03/0020006 Washer, Pln.
48 N04/1150349 Bolt
49 H346063600 Plate, Conn.
50 H346045400 Stopper Connector
51 H346069600 Stopper
52 N04/1671838 Bolt
53 N03/0100011 Washer, Pln.
54 N02/3570146 Nut
55 814/00155 Cover, Bolt
56 N15/6450958 Safety Spring Pin
57 N02/3570182 Nut, Hex.
58 N03/0020018 Washer, Pln.
59 N03/0100011 Washer, Pln.
60 H346035900 Support
61 N04/1671838 Bolt
62 N03/0100011 Washer, Pln.
63 H346036701 Striker Plate
64 H346035000 Inside Handle
65 N01/0222462 Bolt, Hex.
66 N03/0100021 Washer, Pln.
