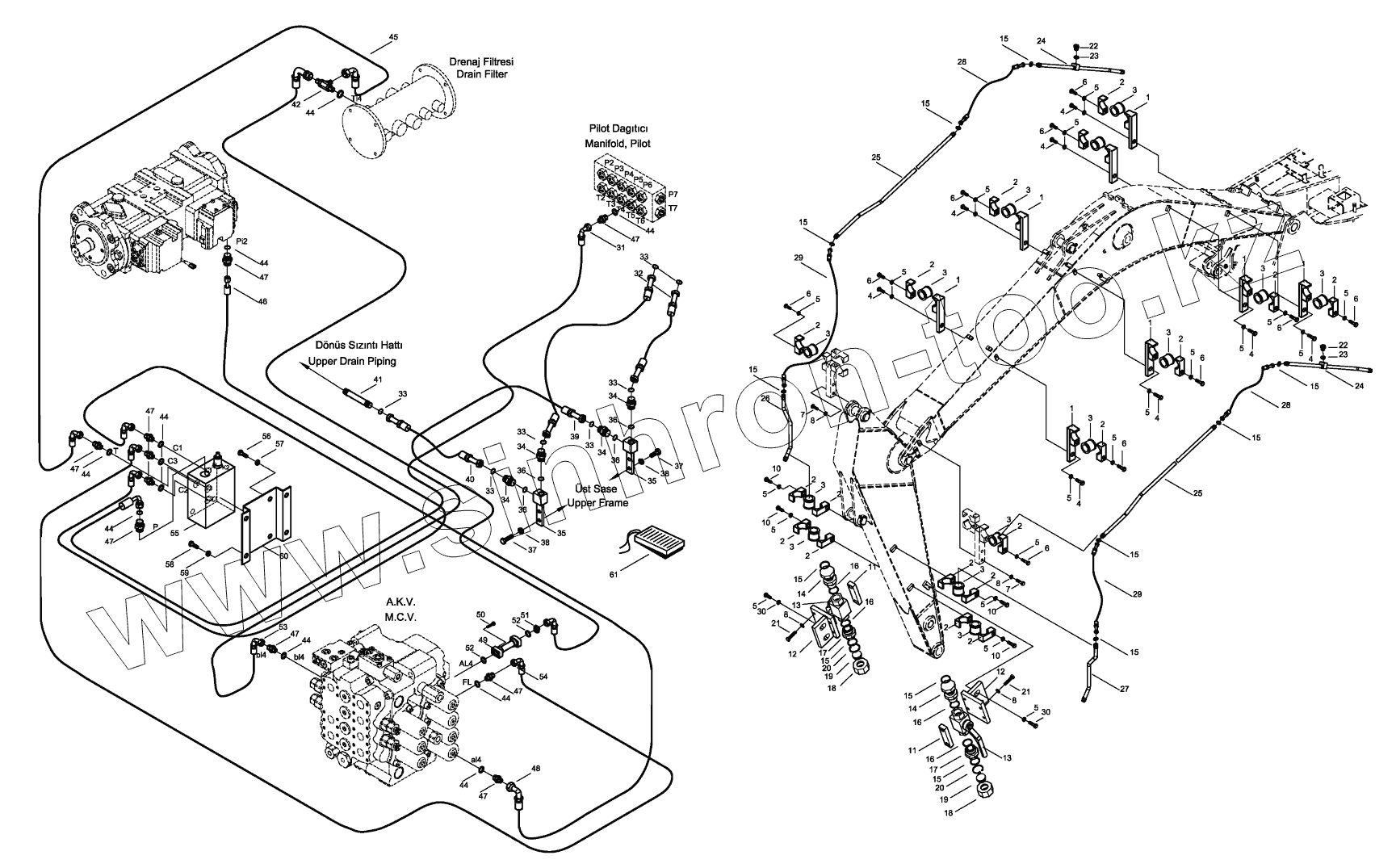

Каталог запасных частей к технике: Hidromek HMK 200W. BREAKER PIPING MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
H230100101
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
7
7
8
8
8
8
10
10
10
10
11
11
12
12
13
13
14
14
15
15
15
15
15
15
15
15
15
15
15
15
16
16
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
27
28
28
29
29
30
30
31
32
33
33
33
33
33
33
34
34
34
34
35
35
36
36
36
36
37
37
38
38
39
40
41
42
44
44
44
44
44
44
44
44
44
45
46
47
47
47
47
47
47
47
47
48
49
50
51
52
52
53
54
55
56
57
58
59
60
61
Позиция на иллюстрации Заводской номер детали Название детали
H230100101 H230100101 Breaker Piping Mount.
1 H340104100 Clamp Plate, W.A.
2 H343301500 Clamp
3 H340102500 Rubber
4 N01/0381190 Bolt, Hex.
5 N03/1310014 Washer, Spr.
6 N01/0381238 Bolt, Hex.
7 N01/0380866 Bolt, Hex.
8 N03/1310012 Washer, Spr.
10 N01/0381310 Bolt, Hex.
11 H340102201 Clamp Plate, Valve
12 H340102601 Clamp Plate WA, Valve
13 H340102100 Valve
14 H340101700 Connector
15 N10/2002317 O-Ring
16 N10/2002835 O-Ring
17 N16/K130129 Connector
18 H340101900 Ring
19 H340102000 Plug
20 N05/0020051 Retaining Ring
21 N01/0380962 Bolt, Hex.
22 N16/X120005 Plug
23 N10/2002835 O-Ring
24 H340100200 Pipe Ass'y
25 H340100800 Pipe Ass'y
26 H230101100 Pipe Assy
27 H230101400 Pipe Assy
28 99N075624 Hose Ass'y
29 99Q175627 Hose Ass'y
30 N01/0233566 Bolt, Hex.
31 99Q091248 Hose Assy
32 99N175628 Hose
33 N10/2002317 O-Ring
34 N16/K130129 Connector
35 H340103300 Elbow, W.A.
36 N10/2002835 O-Ring
37 N01/0233566 Bolt, Hex.
38 N03/1310014 Washer, Spr.
39 H230100200 Hose
40 99Q175622 Hose
41 H340105500 Pipe, W.A.
42 N16/T020202 Tee
44 N10/2001024 O-Ring
45 97Q091220 Hose Assy
46 97S091215 Hose
47 N16/K114341 Connector
48 97U091228 Hose Ass'y
49 H230105300 Pipe, W.A.
50 N01/5890830 Bolt, Cyl. Hd.
51 N16/J360104 Flange
52 N10/2003335 O-Ring
53 97Q091234 Hose Ass'y
54 97T091224 Hose Assy
55 H340103600 Valve, Breaker
56 N01/0380698 Bolt, Hex.
57 N03/1310011 Washer, Spr.
58 N01/0232846 Bolt, Hex.
59 N03/1310012 Washer, Spr.
60 H340102300 Bracket
61 H340103800 Pedal, Breaker
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
