Каталог запасных частей к технике: Hidromek HMK 200W. BOOM MOUNTING
1
1
1-1
1-1
1-2
1-2
1-3
1-3
1-4
1-4
1-5
1-5
1-6
1-6
1-7
1-7
2
3
3
4
5
6
6
7
8
8
8
8
8
8
9
10
11
11
12
12
12
13
13
13
14
15
16

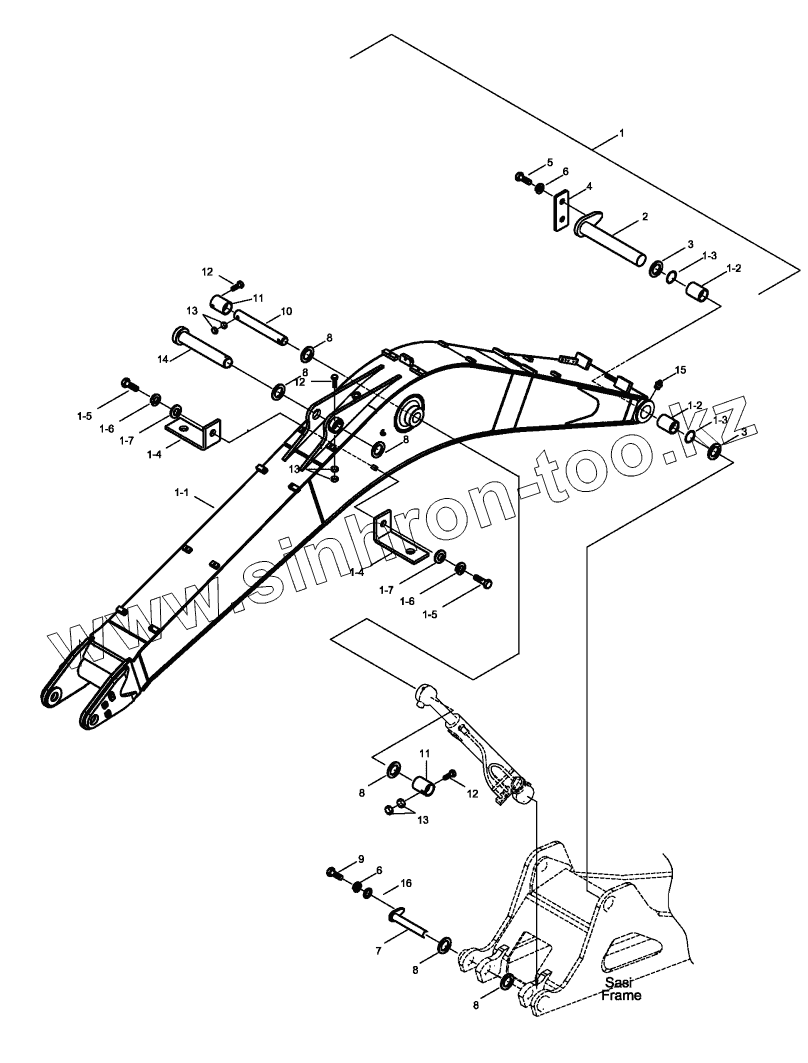

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H345100101 | Boom Assy | |
| 1 | H345100102 | Boom Assy | |
| 1-1 | H345100201 | Boom W.A. | |
| 1-1 | H345100202 | Boom W.A. | |
| 1-2 | H345104501 | Bushing | |
| 1-3 | N10/5910006 | Seal, Dust | |
| 1-4 | H345104700 | Plate, W/Lamp | |
| 1-5 | N01/0232846 | Bolt, Hex. | |
| 1-6 | N03/1310012 | Washer, Spr. | |
| 1-7 | N03/0100023 | Washer, Pln. | |
| 2 | H345000201 | Pin Ass'y | |
| 3 | H345002201 | Shim | |
| 4 | H345000500 | Plate | |
| 5 | N01/0233578 | Bolt, Hex. | |
| 6 | N03/1310014 | Washer, Spr. | |
| 7 | H345000601 | Pin Ass'y | |
| 8 | H345002300 | Shim | |
| 9 | N01/0233530 | Bolt, Hex. | |
| 10 | H345000900 | Pin | |
| 11 | H345001000 | Stopper | |
| 12 | N01/0381418 | Bolt, Hex. | |
| 13 | N02/3570314 | Nut, Hex. | |
| 14 | H345001100 | Pin | |
| 15 | N08/1110000 | Grease, Nipple | |
| 16 | H344500270 | Support, Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
