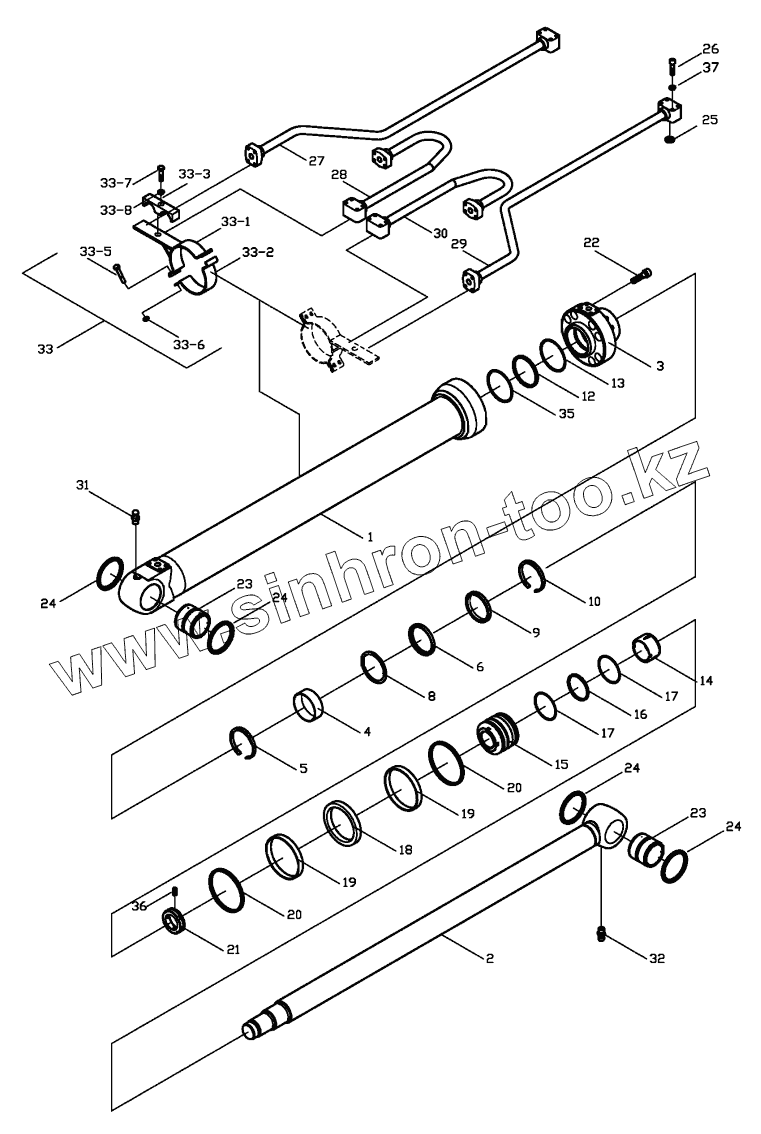

Каталог запасных частей к технике: Hidromek HMK 200W. BOOM CYLINDER (R/L)
1
2
3
4
5
6
8
9
10
12
13
14
15
16
17
17
18
19
19
20
20
21
22
23
23
24
24
24
24
25
26
27
28
29
30
31
32
33
33-1
33-2
33-3
33-5
33-6
33-7
33-8
35
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H343303201 | Tube | |
| 2 | H343303701 | Rod | |
| 3 | H343304001 | Gland | |
| 4 | N10/0008530 | Bush | |
| 5 | N05/1350066 | Retaining Ring | |
| 6 | N10/4850012 | Seal, Gland | |
| 8 | N10/4851006 | Seal, Gland | |
| 9 | N10/5859908 | Seal, Dust | |
| 10 | N05/1350072 | Retaining Ring | |
| 12 | N10/2011903 | O-Ring | |
| 13 | N10/2612001 | O-Ring, Back Up | |
| 14 | H343304101 | Ring, Cushion | |
| 15 | H343306000 | Piston | |
| 16 | N10/2006403 | O-Ring | |
| 17 | N10/2665701 | O-Ring, Back Up | |
| 18 | N10/3910216 | Seal, Piston | |
| 19 | N10/1912509 | Ring, We | |
| 20 | N10/0911706 | Ring, Dust | |
| 21 | H343304300 | Nut, Lock | |
| 22 | N01/5902078 | Bolt, Cylinder Head | |
| 23 | H343304600 | Bush | |
| 24 | N10/5809505 | Seal, Dust | |
| 25 | N10/2002435 | O-Ring | |
| 26 | N01/5900878 | Bolt, Cylinder Head | |
| 27 | H343305301 | Pipe Ass'y, L | |
| 28 | H343305500 | Pipe Ass'y, L | |
| 29 | H343305701 | Pipe Ass'y, R | |
| 30 | H343305800 | Pipe Ass'y, R | |
| 31 | N08/1110000 | Grease, Nipple | |
| 32 | N08/1210040 | Grease, Nipple | |
| 33 | Clamp | Clamp Ass'y | |
| 33-1 | H343304801 | Plate, Clamp | |
| 33-2 | H343304900 | Plate, Clamp | |
| 33-3 | H343305201 | Clamp | |
| 33-4 | N02/3570206 | Nut, Hex. | |
| 33-5 | N01/0380566 | Bolt, Hex. | |
| 33-6 | N03/1310011 | Washer, Spr. | |
| 33-7 | N01/0380914 | Bolt | |
| 33-8 | N03/1310012 | Washer, Spr. | |
| 35 | N10/2012503 | O-Ring | |
| 36 | N04/3050772 | Screw | |
| 37 | N03/1310011 | Washer, Spr. | |
| H343306901 | H343306901 | KIT-Seal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
