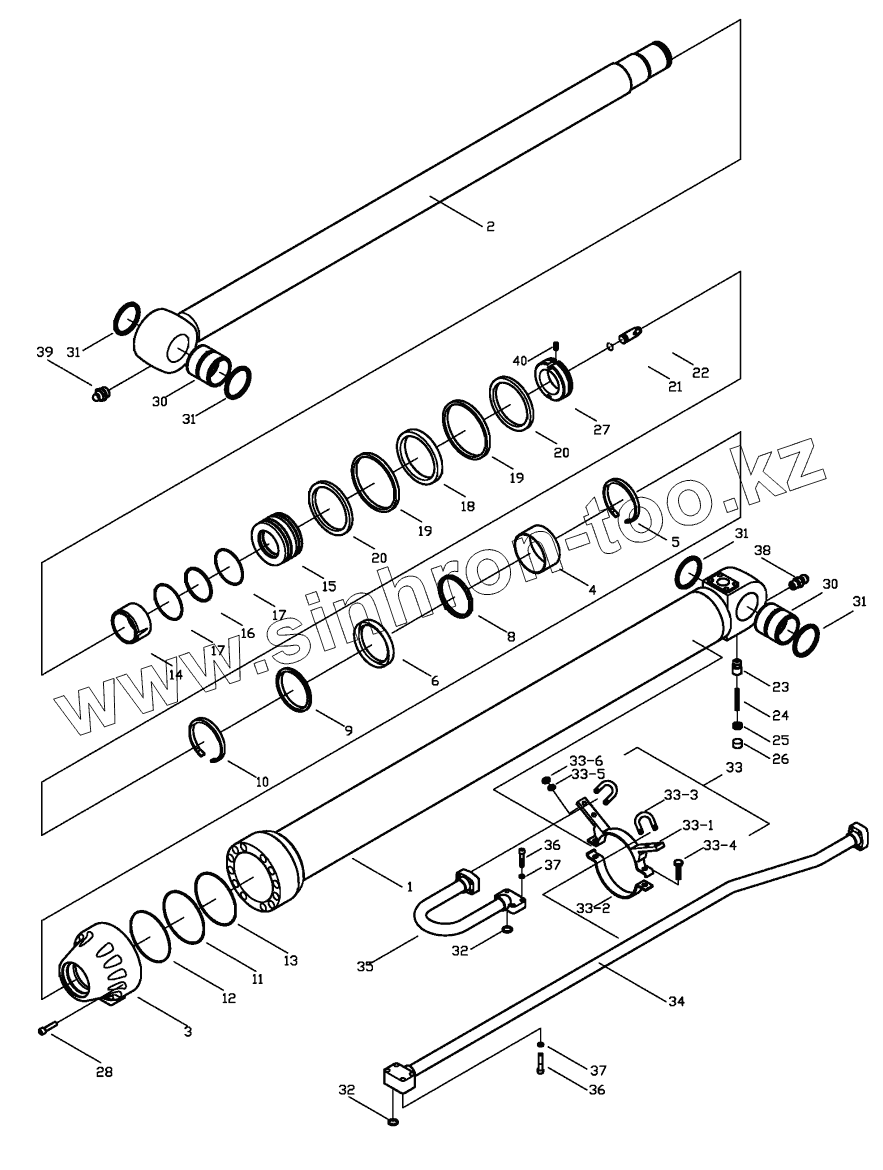

Каталог запасных частей к технике: Hidromek HMK 200W. ARM CYLINDER
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
17
18
19
19
20
20
21
22
23
24
25
26
27
28
30
30
31
31
31
31
32
32
33
33-1
33-2
33-3
33-4
33-5
33-6
34
35
36
36
37
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H343307101 | Tube | |
| 2 | H343307601 | Rod | |
| 3 | H343307901 | Gland | |
| 4 | N10/0010030 | Bush | |
| 5 | N05/1350075 | Retaining Ring | |
| 6 | N10/4910012 | Seal, Gland | |
| 8 | N10/4910006 | Seal, Gland | |
| 9 | N10/5910008 | Seal, Dust | |
| 10 | N05/1350081 | Retaining Ring | |
| 11 | N10/2013403 | O-Ring | |
| 12 | N10/2613501 | O-Ring, Back Up | |
| 13 | N10/2013902 | O-Ring | |
| 14 | H343308001 | Ring, Cushion | |
| 15 | H343308101 | Piston | |
| 16 | N10/2007903 | O-Ring | |
| 17 | N10/2608001 | O-Ring, Back Up | |
| 18 | N10/3911716 | Seal, Piston | |
| 19 | N10/1913509 | Ring, We | |
| 20 | N10/0913206 | Ring, Dust | |
| 21 | H343309900 | Retaining Ring | |
| 22 | H343308200 | Plunger, Cushion | |
| 23 | H343308300 | Check Valve | |
| 24 | H343308400 | Spring | |
| 25 | H343308500 | Cap | |
| 26 | N16/X683001 | Plug | |
| 27 | H343308600 | Nut, Lock | |
| 28 | N01/5901646 | Bolt, Cylinder Head | |
| 30 | H343308800 | Bush | |
| 31 | N10/5809505 | Seal, Dust | |
| 32 | N10/2003335 | O-Ring | |
| 33 | Clamp | Clamp Ass'y | |
| 33-1 | H343309000 | Plate, Clamp | |
| 33-2 | H343309100 | Plate, Clamp | |
| 33-3 | H343309400 | Bolt | |
| 33-4 | N01/0380566 | Bolt, Hex. | |
| 33-5 | N03/1310011 | Washer, Spr. | |
| 33-6 | N02/3570206 | Nut, Hex. | |
| 34 | H343309500 | Pipe | |
| 35 | H343309700 | Pipe | |
| 36 | N01/5901238 | Bolt, Cylinder Head | |
| 37 | N03/1310012 | Washer, Spr. | |
| 38 | N08/1210040 | Grease, Nipple | |
| 39 | N08/1110000 | Grease, Nipple | |
| 40 | N04/3050772 | Screw | |
| H343311901 | H343311901 | KIT-Seal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
