Каталог запасных частей к технике: Hidromek HMK 102S ALPHA. TOW HOOK (MECHANICAL) (OP)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано ENGINE & TRANSMISSION MOUNTING (STANDARD) ENGINE & TRANSMISSION MOUNTING (LUCK-UP) ENGINE CONTROL SYSTEM AIR INTAKE SYSTEM AIR INTAKE SYSTEM (OP) EXHAUST MOUNTING ENGINE COOLING MOUNTING ENGINE COOLING MOUNTING RADIATOR ASSEMBLY FUEL SYSTEM HEATING VENTING SYSTEM HEATER UNIT HEATING VENTING AIR CONDITIONING SYSTEM AIR CONDITIONER UNIT A/C UNIT ASS'Y CHASSIS STABILIZER, SIDESHIFT POWER SLIDER (OP) STABILIZER PADS KINGPOST CARRIAGE KINGPOST CARRIAGE (WITH POWER SLIDER) KINGPOST BOOM LOCK AND MECHANISM BONNET-PANEL-FRONT GRILL-SIDE COVER MOUNTING FENDERS, FRONT FENDER, REAR CAB & CAB MOUNTING DOOR AND WINDOW, RH DOOR AND WINDOW, RH DOOR AND WINDOW, LH DOOR AND WINDOW, LH WINDOWS, FRONT - REAR CAB ACCESSORIES CAB (LEVERS MECHANISM) CAB (JOYSTICK MECHANISM) (OP) CONSOLE, FRONT CONSOLE, LH CONSOLE, LH CONSOLE, RH CONSOLE, RH JOYSTICK MECHANISM, RH JOYSTICK MECHANISM, RH JOYSTICK MECHANISM, LH JOYSTICK MECHANISM, LH STEERING COLUMN ASSEMBLY OPERATOR SEAT ASSEMBLY OPERATOR SEAT ASSEMBLY (WITH AIR SUSPENSION) OPERATOR SEAT MOUNTING OPERATOR SEAT MOUNTING (WITH AIR SUSPENSION) LOADER ARM MOUNTING (1) LOADER ARM MOUNTING (2) LOADER ARM MOUNTING (3) MULTIPORPUSE BUCKET, LOADER (1.1 m3) MULTIPORPUSE BUCKET, LOADER (1.1 m3) CUTTING EDGE, MULTIPORPUSE BUCKET (OP) MULTIPURPOSE BUCKET, LOADER (1.3 m3) (OP) MULTIPURPOSE BUCKET, LOADER (1.3 m3) (OP) MULTIPURPOSE BUCKET, LOADER(WITH QUICK COUPLER)(OP) MULTIPORPUSE BUCKET, LOADER (1 m3) (OP) MULTIPORPUSE BUCKET, LOADER (1 m3) (OP) MULTIPORPUSE BUCKET, LOADER (1,2 m3) (OP) MULTIPORPUSE BUCKET, LOADER (1,2 m3) (OP) GRAPPLE BUCKET (OP) MULTIPORPUSE BUCKET (OP) SHOVEL (1.2 m3) (OP) CUTTING EDGE, SHOVEL (OP) SHOVEL (1.5 m3) (OP) CONNECTION MOUNTING, LOADER (NO BUCKET) (OP) SHOVEL (OP) SHOVEL (1.2 m3) (WITH QUICK COUPLER) (OP) SHOVEL (1.5 m3) (WITH QUICK COUPLER) (OP) LEVELLING BLADE (716x2800) (OP) LEVELLING BLADE (900x2800) (OP) LEVELLING BLADE WITH QUICK COUPLER (716x2800)(OP) ADAPTER, QUICK COUPLER (LEVELLING BLADE) (OP) LEVELLING BLADE WITH QUICK COUPLER(900x 2800)(OP) LEVELLING BLADE (DOUBLE AXIS) (OP) LOG GRAPPLE (2+1 CLAMP) (OP) ADAPTER, QUICK COUPLER (LOG GRAPPLE) (OP) LOG GRAPPLE, (WITH VERTICAL MOVEMENT O200mm) (OP) LOG GRAPPLE (WITH VERTICAL MOVEMENT O500mm) (OP) LOG GRAPPLE (3+2 CLAMP) (OP) LOG GRAPPLE (WITH VERTICAL MOVEMENT, 3+2 CLAMP) (OP) BALE GRAPPLE (WITH VERTICAL MOVEMENT, 4+3 CLAMP) (OP) FORKLIFT (MULTIPURPOSE BUCKET) (OP) FORKLIFT (MULTIPURPOSE BUCKET) (OP) FORKLIFT (SHOVEL 1.2 m3) (OP) FORKLIFT (SHOVEL 1.5 m3) (OP) FORKLIFT (WITH QUICK COUPLER) (OP) QUICK COUPLER (LOADER) (OP) BOOM MOUNTING ARM MOUNTING TELESCOPIC ARM MOUNTING (OP) TELESCOPIC ARM MOUNTING (AUGER/TILTING BUCKET)(OP) BUCKET LINKAGE BUCKET, BACKHOE (300 mm) (OP) BUCKET, BACKHOE (350 mm) (OP) BUCKET, BACKHOE (400 mm) (OP) BUCKET, BACKHOE (500 mm) (OP) BUCKET, BACKHOE (600 mm) (OP) BUCKET, BACKHOE (700 mm) (OP) BUCKET, BACKHOE (800 mm) (OP) BUCKET, BACKHOE (900 mm) (OP) CONNECTION MOUNTING, BACKHOE (NO BUCKET) (OP) BUCKET, BACKHOE (1500 mm) SKELETON BUCKET (OP) TILTING BUCKET (OP) BUCKET, BACKHOE (TRAPEZE) (OP) QUICK COUPLER, BACKHOE (OP) BREAKER MOUNTING (MONTABERT- SC 36) (OP) BREAKER ASSEMBLY (MONTABERT- SC 36) (OP) BREAKER MOUNTING (MONTABERT- SC 28) (OP) BREAKER ASSEMBLY (MONTABERT- SC 28) (OP) BREAKER MOUNTING (DEMO DMB50) (OP) BREAKER ASSEMBLY (DEMO DMB50) (OP) BREAKER MOUNTING (DEMO DMB70) (OP) BREAKER ASSEMBLY (DEMO DMB70) (OP) BREAKER MOUNTING (LIFTON LH 360) (OP) BREAKER ASSEMBLY (LIFTON LH 360) (OP) BREAKER MOUNTING (TOKU) (OP) BREAKER ASSEMBLY (TOKU) (OP) BREAKER MOUNTING (MONTABERT-HKR 140) (OP) BREAKER ASSEMBLY (MONTABERT- HKR 140) (OP) BREAKER MOUNTING (MONTABERT- 95) (OP) BREAKER ASSEMBLY (MONTABERT- 95) (OP) BREAKER MOUNTING (DEMO S700V) (OP) BREAKER ASSEMBLY (DEMO S700V) (OP) AUGER (O350x1000) (OP) AUGER (O500x1300) (OP) AUGER (O610x1600) (OP) RIPPER (OP) ADAPTER, QUICK COUPLER (GRAPPLE) (OP) GRAPPLE (OP) TOW HOOK (MECHANICAL) (OP) POWER TRAIN MOUNTING POWER TRAIN MOUNTING WHELL & TIRE GROUP, FRONT WHELL & TIRE GROUP FRONT AXLE FRONT AXLE, BEVEL GEAR SET - CR (TURNER) FRONT AXLE, INPUT FLANGE - CR (TURNER) FRONT AXLE, DIFFERENTIAL - CR (TURNER) FRONT AXLE, AXLE CASING PARTS - CR (TURNER) FRONT AXLE, HUB FRONT AXLE, FINAL REDUCTION FRONT AXLE, STEERING CYLINDER- CR (TURNER) REAR AKS - CR (TURNER) REAR AXLE, BEVEL GEAR SET - CR (TURNER) REAR AXLE, INPUT FLANGE - CR (TURNER) REAR AXLE, DIFFERENTIAL - CR (TURNER) REAR AXLE, HALF-SHAFTS AND BRAKES - CR (TURNER) REAR AXLE, AXLE HOUSING - CR (TURNER) REAR AXLE, WHEEL HUB - CR (TURNER) REAR AXLE, BRAKE CALIPER - CR (TURNER) REAR AXLE, FINAL REDUCTION - CR (TURNER) REAR AXLE, SWIVEL HOUSING AND STEERING CYLINDER - CR (TURNER) REAR AXLE, DIFFERENTIAL LOCKING - CR (TURNER) TRANSMISSION (STANDARD) TRANSMISSION, TORGUE CONVERTER ARRANGMENT (STANDARD) TRANSMISSION, PUMP GROUP TRANSMISSION, FRONT CASING AND ANCILLIARIES (STANDARD) TRANSMISSION, VALVE GROUP TRANSMISSION, REAR CASING AND ANCILLIARIES (STANDARD) TRANSMISSION, CLUTCH GROUP TRANSMISSION, SHAFT GROUP - MAIN (STANDARD) TRANSMISSION, SHAFT GROUP IDLER TRANSMISSION, SHAFT GROUP INPUT (STANDARD) TRANSMISSION, SHAFT GROUP PTO (STANDARD) TRANSMISSION, SHAFT GROUP COUNTER (STANDARD) TRANSMISSION (LUCK-UP) TRANSMISSION, TORGUE CONVERTER ARRANGMENT (LUCK-UP) TRANSMISSION, PUMP GROUP (LUCK- UP) TRANSMISSION, FRONT CASING AND ANCILLIARIES (LUCK-UP) TRANSMISSION, VALVE GROUP (LUCK- UP) TRANSMISSION, REAR CASING AND ANCILLIARIES (LUCK-UP) TRANSMISSION, CLUTCH GROUP (LUCK- UP) TRANSMISSION, SHAFT GROUP - MAIN (LUCK-UP) TRANSMISSION, SHAFT GROUP IDLER TRANSMISSION, SHAFT GROUP INPUT (LUCK-UP) TRANSMISSION, SHAFT GROUP PTO (LUCK-UP) TRANSMISSION, SHAFT GROUP COUNTER (LUCK-UP) PARKING BRAKE HYDRAULIC TANK MOUNTING (VERSION 2) LOADER CONTROL MECHANISM (MULTIPURPOSE BUCKET & LEVERS) (TYPE A) LOADER CONTROL MECHANISM (MULTIPURPOSE BUCKET & LEVERS) (TYPE A) LOADER CONTROL&MECHANISM(SHOVEL & LEVERS) (TYPE A) LOADER CONTROL MECHANISM (MULTIPURPOSE BUCKET & JOYSTICK) (TYPE A) LOADER CONTROL MECHANISM (SHOVEL & JOYSTICK) (TYPE A) LOADER CONTROL MECHANISM (SHOVEL & JOYSTICK) (TYPE A) BACKHOE CONTROL & MECHANISM (TYPE A) BACKHOE CONTROL & MECHANISM (TYPE A) BACKHOE CONTROL & MECHANISM (X- DIAGONAL) (TYPE A) BACKHOE CONTROL & MECHANISM (X- DIAGONAL) (TYPE A) ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A) ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & MULRIPURPOSE BUCKET & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & SHOVEL & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & SHOVEL & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & SHOVEL & GEAR PUMP) (TYPE A) HYD. PIPING MAIN (TELESCOPIC & SHOVEL & GEAR PUMP) (TYPE A) HYDRAULIC PIPING, PILOT (TYPE A) HYDRAULIC PIPING, PILOT (TYPE A) HYDRAULIC PIPING, PILOT (LEFT HAND) (TYPE A) PATTERN SHIFTER (TYPE A) LOADER HYDRAULIC PIPING (SHOVEL) (TYPE A) (OP) LOADER HYDRAULIC PIPING (MULTIPURPOSE BUCKET) (TYPE A) LOADER HYDRAULIC PIPING, LIFT CYLINDER, WITH PROTECTION VALVE LOADER HYD. PIPING, BUCKET CYLINDER LOADER HYDRAULIC PIPING, MSS HOSE HOLDER SET (STD. ARM) HOSE HOLDER SET (STD. ARM) HOSE HOLDER SET (TELESCOPIC ARM) HOSE HOLDER SET (TELESCOPIC ARM) HYDRAULIC PIPING, STABILIZER CYLINDER (TYPE A) HYD. PIPING, STABILIZER CYLINDER (WITH SAFETY LOCKING VALVE) (OP) HYDRAULIC PIPING, HYDROCLAMP (TYPE A) HYDRAULIC PIPING, SWING CYLINDER (TYPE A) BACKHOE HYDRAULIC PIPING, BOOM CYLINDER (TYPE A) BACKHOE HYD. PIPING, BOOM CYLINDER (WITH SAFETY LOCK VALVE) (OP) BACKHOE HYDRAULIC PIPING, ARM CYLINDER (TYPE A) BACKHOE HYD. PIPING, ARM CYLINDER (WITH SAFETY LOCK VALVE) (OP) BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER (TYPE A) BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER (TYPE A) BACKHOE HYD. PIPING, BUCKET CYLINDER (TELESCOPIC) (TYPE A) (OP) BACKHOE HYD. PIPING, BUCKET CYLINDER (TELESCOPIC) (TYPE A) (OP) SINGLE ACTING HYDRAULIC PIPING (BREAKER & STD. ARM) (TYPE A) SINGLE ACTING HYDRAULIC PIPING (BREAKER & STD. ARM) (TYPE A) SINGLE ACTING HYDRAULIC PIPING (BREAKER & TELESCOPIC)(TYPE A) SINGLE ACTING HYDRAULIC PIPING (BREAKER & TELESCOPIC)(TYPE A) DOUBLE ACTING HYD.PIPING,STD ARM(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) DOUBLE ACTING HYD.PIPING,STD ARM(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) DOUBLE ACTING HYD.PIPING,TELESCOPIC,LV(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) DOUBLE ACTING HYD.PIPING,TELESCOPIC,LV(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) DOUBLE ACTING HYD.PIPING,TELESCOPIC,JY(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) DOUBLE ACTING HYD.PIPING,TELESCOPIC,JY(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) HYDRAULIC, HAND BREAKER (TYPE A) (OP) HYDRAULIC PIPING, DIFFERENTIAL LOCK POWER SLIDER HYDRAULIC (OP) GEAR PUMP GEAR PUMP GEAR PUMP LOADER CONTROL VALVE, MULTIPURPOSE BUCKET (PROPORTIONAL) (TYPE A) LOADER CONTROL VALVE, GP BUCKET (TYPE A) BACKHOE CONTROL VALVE, MECHANIC (TYPE A) BACKHOE CONTROL VALVE, MECHANIC (TYPE A) BACKHOE CONTROL VALVE (LEVER & X- DIAGONAL) (TYPE A) BACKHOE CONTROL VALVE, JOYSTICK (TYPE A) BACKHOE CONTROL VALVE, JOYSTICK (TYPE A) ADDITIONAL ATTACHMENT CONTROL VALVE (TYPE A) ADDITIONAL ATTACHMENT CONTROL VALVE (TYPE A) REMOTE CONTROL VALVE, RH REMOTE CONTROL VALVE, LEFT LIFT CYLINDER, LOADER BUCKET CYLINDER, LOADER, RH BUCKET CYLINDER, LOADER, LH MULTIPURPOSE BUCKET CYLINDER MULTIPURPOSE BUCKET CYLINDER STABILIZER CYLINDER, RH STABILIZER CYLINDER, LH SWING CYLINDER BOOM CYLINDER, BACKHOE BOOM CYLINDER, BACKHOE ARM CYLINDER, BACKHOE ARM CYLINDER, BACKHOE BUCKET CYLINDER, BACKHOE BUCKET CYLINDER, BACKHOE, TELESCOPIC TELESCOPIC CYLINDER, BACKHOE QUICK COUPLER CYLINDER, LOADER LEVELLING BLADE CYLINDER LEVELLING BLADE CYLINDER (DOUBLE AXIS) RH LEVELLING BLADE CYLINDER (DOUBLE AXIS) LH LEVELLING BLADE CYLINDER (DOUBLE AXIS) CENTER LOG GRAPPLE CYLINDER LOG GRAPPLE CYLINDER (WITH VERTICAL MOVEMENT) TILTING BUCKET CYLINDER BOOM LOCKING CYLINDER (OP) ARM CYLINDER, BACKHOE (WITH SAFETY LOCK VALVE) (OP) ARM CYLINDER, BACKHOE (WITH SAFETY LOCK VALVE) (OP) POWER SLIDER CYLINDER, OUTER (OP) POWER SLIDER CYLINDER, INNER (OP) PILOT SUPPLY BLOCK (WITH PROPORTIONAL VALVE) MSS, VALVE VALVE, PATTERN SHIFTER RAM, GRAPPLE BUCKET RAM, GRAPPLE MULTIPURPOSE BUCKET CYLINDER HYDRAULIC PIPING, STEERING (GEAR PUMP) HYDRAULIC PIPING, STEERING (GEAR PUMP) COMBINATION VALVE COMBINATION VALVE HYDRAULIC PIPING, BRAKE (GEAR PUMP) CAB ELECTRIC (1) CAB ELECTRIC (2) CAB ELECTRIC (2) CAB ELECTRIC (3) CAB ELECTRIC (4) CAB ELECTRIC (5) CAB ELECTRIC (6) CAB ELECTRIC (7) CAB ELECTRIC (8) ELECTRIC (1) ELECTRIC (1) LEVELLING BLADE,(WITH TWO AXIS TURN) HARNESS (OP) COMPRESSOR & HARNESS SMARTLINK (GEAR PUMP) DECALS, WARNING DECAL AND PLATES (1) DECAL AND PLATES, TR (2) DECAL AND PLATES, EN (2) DECAL AND PLATES, FR (2) DECAL AND PLATES ES (2) DECAL AND PLATES, RUS (2) DECAL AND PLATES, POR (2) DECAL AND PLATES, BUL (2) DECAL AND PLATES (RUMANIAN) (2) DECAL AND PLATES, BREAKER TOOL KIT ENGINE, PERKINS 1104D-44TA CYLINDER HEAD COVER CAM SHAFT ROCKER ASSEMBLY PISTONS & RINGS FLYWHEEL FLYWHEEL HOUSING CRANKSHAFT MAIN & BIG END BEARINGS CYLINDER HEAD ASSY CYLINDER BLOCK &LINERS CONNECTING RODS REAR END OIL SEAL BLANKING PLATES FRONT END DRIVE INPUT TIMING CASE (1) TIMING CASE (2) TIMING COVER (3) DRIVE ADAPTOR BLANKING PLUGS INDUCTION MANIFOLD ENGINE LIFTING EYES MISCALLANEOUS & AUXILIARIES BLANKING PLATES SUMP DIPSTICK & FILLER TUBE OIL STRAINER FILLER OIL COOLER OIL FILTER REMOTE LUBRICATING OIL FILTER LUBRICATING OIL PUMP & DELIVERY HOUSING FEED PIPES LEAK-OFF PIPES BREATHER FAN DRIVE WATER PUMP PIPES WATER OUTLET HOUSING FUEL INJECTION PUMP HIGH PRESSURE FUEL PIPES ATOMISERS FUEL LEAK-OFF PIPE LIFT PUMP LIFT PUMP INJECTION PUMP TO FILTER PIPE BOOST CONTROL PIPE FUEL FILTER PICK-UP SENSOR PICK-UP SENSOR STARTER MOTOR ALTERNATOR ALTERNATOR BRACKET & FIXINGS PULLEYS HEATER PLUGS LUBRICATION OIL PRESSURE SWITCHGAUGE TEMPERATURE GAUGE & SENDER TURBOCHARGER PIPEWORK & CONNECTIONS EXHAUST MANIFOLD PIPEWORK & CONNECTION INDUCTION MANIFOLD

1

2

3

4

5

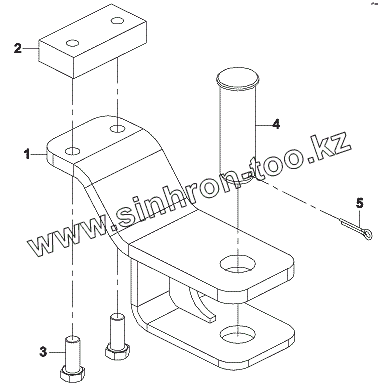

Позиция на иллюстрации	Заводской номер детали		Название детали
1	06790030		TOW HOOK W.A
2	02020726		BRACKET
3	N010234286		BOLT
4	80110530		PIN
5	N061008070		COTTER PIN

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
