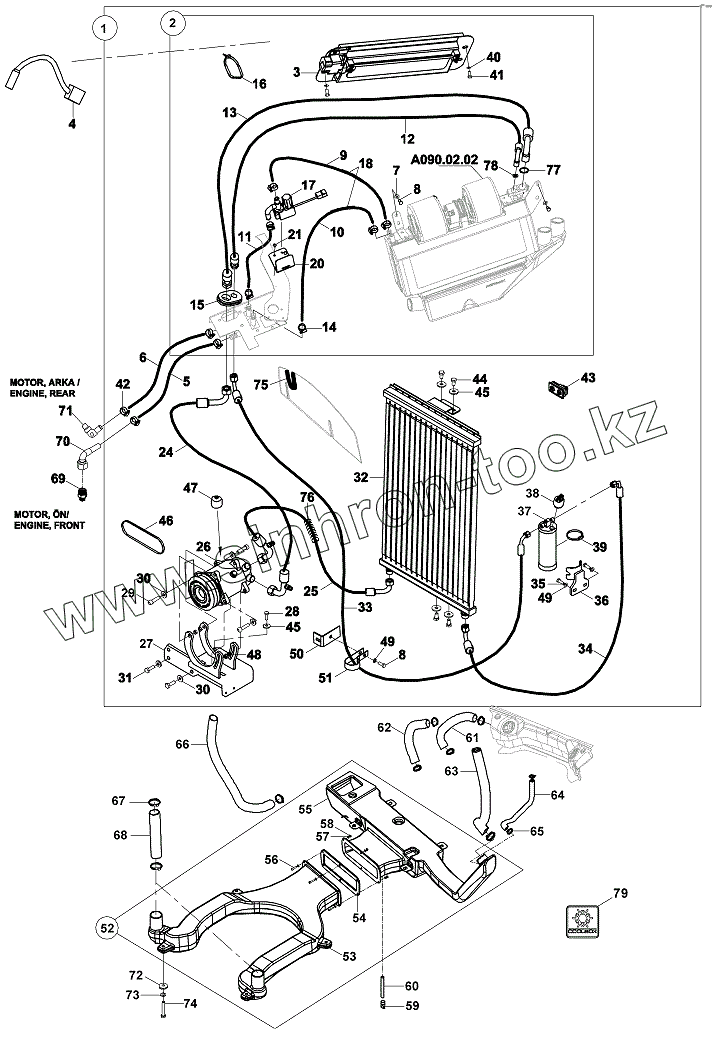

Каталог запасных частей к технике: Hidromek HMK 102S ALPHA. HEATING VENTING AIR CONDITIONING SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
20
21
24
24
25
25
26
27
28
29
30
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
Позиция на иллюстрации Заводской номер детали Название детали
1 01750009 A/C UNIT ASS'Y
2 01829320 AIR CONDITIONER ASS'Y
3 F3112023 AIR INTAKE
4 55400300 TEMPERATURE SENSOR, OUTDOOR
5 6B11058195 HOSE, HEATER
5 79901026 HOSE, HEATER
6 79901027 HOSE, HEATER
6 6B11058130 HOSE, HEATER
7 N030720006 WASHER
8 N010232114 Bolt
9 H067031508 HOSE
10 H067031508 HOSE
11 79901023 HOSE
12 6A14211076 Hose
13 6A1A211102 Hose
14 N074016025 CLAMP
15 81040072 GROMMET
16 51011700 Tie, cable
17 F9929201 HEATER VALVE
18 H134201800 HOSE PROTECTOR, SPIRAL
20 02043056 BRACKET
21 N049602042 SCREW
24 6A1A615235 HOSE ASS'Y
24 6A0315234130240 HOSE ASS'Y
25 6A17625130 HOSE ASS'Y
25 6A0223824020186 HOSE ASS'Y
26 F2520012 COMPRESSOR, A/C
27 01990043 BRACKET
28 N010232138 BOLT
29 N015890842 Bolt
30 N030020121 Washer
31 N010232486 Bolt
32 F2594012 CONDENSER
33 6A14611295 HOSE ASS'Y
33 6A0115211810276 HOSE ASS'Y
34 6A14621047 HOSE ASS'Y
34 6A0134014010050 HOSE ASS'Y
35 N010232114 Bolt
36 01991478 BRACKET
37 F2594011 DRIER
38 51520001 Switch, ac
39 N074050070 CLAMP
40 N030020004 WASHER
41 N010231514 BOLT
42 N074016025 CLAMP
43 52201032 A/C CONTROL ASS'Y
44 N010232078 Bolt
45 N030020111 Washer
46 N993600000 BELT A/C
47 Y0492800 TUBE, A/C
48 N025910086 Nut
49 N030810014 Washer
50 01993021 BRACKET
51 N077002200 Hose holder
52 01829673 AIR CHANNEL ASS'Y
53 02043007 AIR CHANNEL
54 81602015 GASKET
55 02043001 AIR CHANNEL
56 N015890326 Bolt m6x25
57 N030100013 WASHER
58 N025910050 Nut
59 F2520460 EVACUATOR, A/C
60 79900120 HOSE
61 79905063 HOSE, AC
62 79905064 HOSE, AC
63 79905062 HOSE, AC
64 79905058 HOSE, AC
65 N074016027 CLAMP
66 79905060 HOSE, AC
67 N074040070 CLAMP
68 79905061 HOSE, AC
69 80620200 ADAPTER
70 N19610508 FITTINGS, HOSE
71 80624228 ADAPTER
72 80504300 WASHER
73 N030810014 Washer
74 N010380410 Bolt
75 H130135102 STRIP
76 H134200800 Protective hose
77 N102001717 O-RING
78 N102000717 O-RING
79 Y0620495 DECAL,COOLING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
