Каталог запасных частей к технике: Hidromek HMK 102S ALPHA. BREAKER ASSEMBLY (DEMO DMB70) (OP)

Тип техники

Марка

Модель

Схема

1

2

2

3

3

4

4

5

6

7

7

8

8

9

9

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

25-1

26

26

27

28

29

30

31

32

32

32

32

33

34

35

35

36

36

37

38

38

39

40

41

42

43

44

45

46

47

48

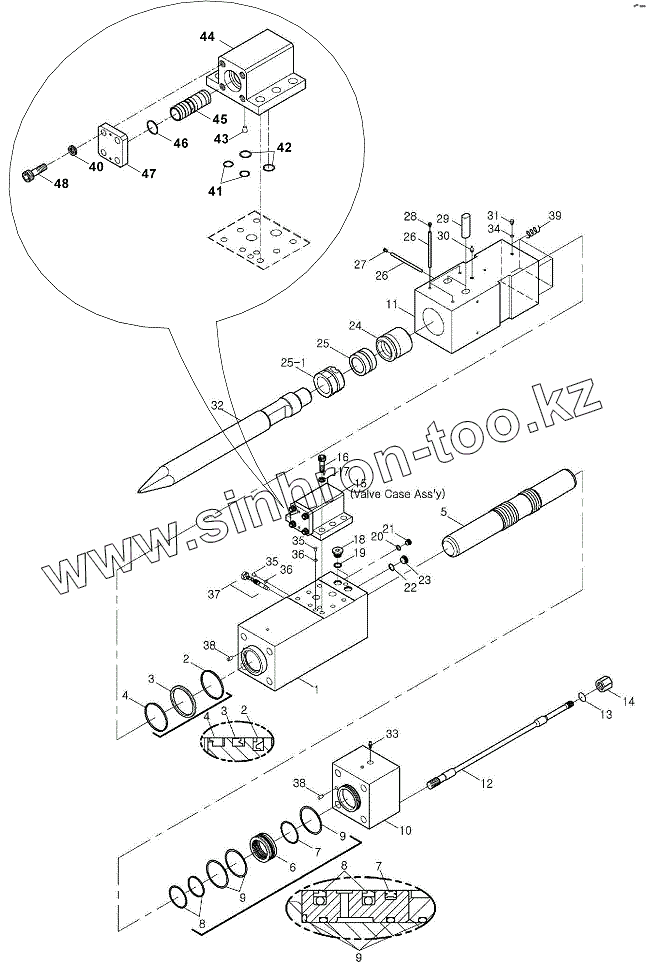

Позиция на иллюстрации	Заводской номер детали		Название детали
F4504370	F4504370		BREAKER ASSEMBLY
1	S4515522		CYLINDER
2	S4514947		RING, BUFFER
3	S4514943		U-PACKING
4	S4514945		SEAL DUST
5	S4514969		PISTON
6	S4515518		BUSHING, CYLINDER
7	S4515410		QUAD RING
8	S4515411		SEAL STEP
9	S4514941		O-RING
10	S4515523		CAP HEAD
11	S4515524		FRONT HEAD
12	S4515516		THROUGH BOLT
13	S4515028		WASHER, FOR T BOLT
14	S4515517		NUT
15	S4515529		VALVE CASE ASSY
16	S4515555		BOLT
17	S4515470		WASHER, NORD-LOCK
18	S4515466		PLUG, HEX. SOCKET
19	S4514936		O-RING
20	S4514929		O-RING
21	S4515016		PLUG, HEX. SOCKET
22	S4514939		O-RING
23	S4515018		PLUG, HEX. SOCKET
24	S4514992		RING THRUST
25	S4515541		FRONT COVER
25-1	S4515545		FRONT COVER
26	S4514944		PIN STOP
27	S4515096		PLUG, SCREW+RUBBER
28	S4515086		PLUG, SCREW+RUBBER
29	S4515521		PIN CHISEL
30	S4515020		GREASE NIPPLE
31	S4515018		PLUG, HEX. SOCKET
32	F4501420		CHISEL, MOIL POINT
32	F4501425		CHISEL, FLAT
32	F4501430		CHISEL, CONICAL
32	F4501432		CHISEL, BLUNT
33	S4515502		SCREW COUPLING
34	S4514927		O-RING
35	S4515017		PLUG, HEX. SOCKET
36	S4514911		O-RING
37	S4515035		ADJUST ASS'Y
38	S4514967		KNOCK PIN
39	S4515525		HELI COIL
40	S4515480		BOLT
41	S4514933		O-RING
42	S4514937		O-RING
43	S4515010		PLUG
44	S4515519		CASE, VALVE
45	S4514993		VALVE
46	S4514938		O-RING
47	S4515565		PLATE, VALVE
48	S4515470		WASHER, NORD-LOCK
K1	S4515526		SEAL KIT, ALL
K2	S4515551		SEAL KIT, CYLINDER
K3	S4515072		SEAL KIT, VALVE CASE
K4	S4515560		THROUGH BOLT SET
