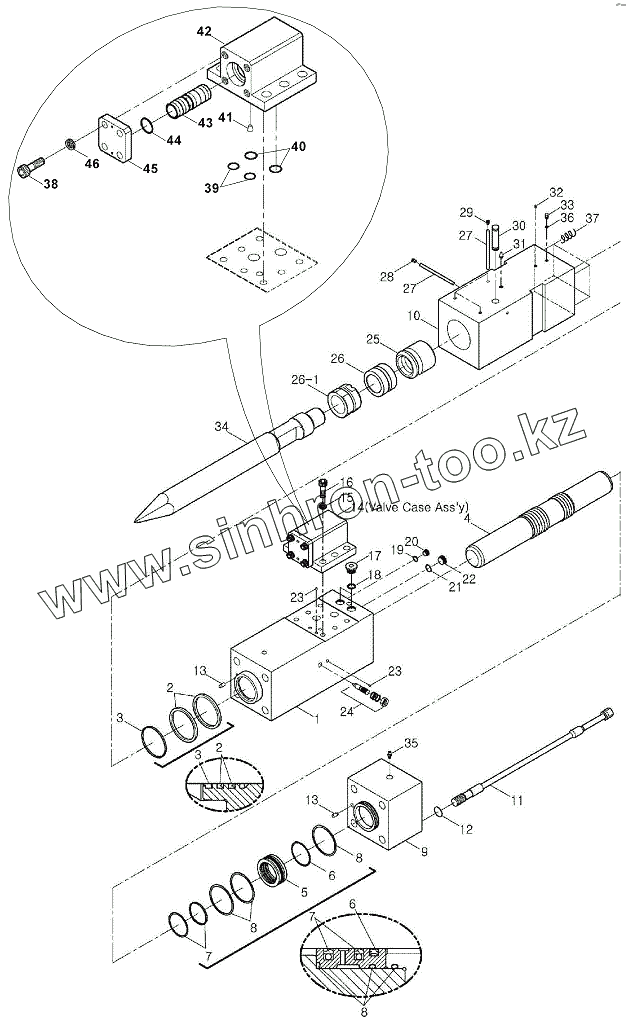

Каталог запасных частей к технике: Hidromek HMK 102S ALPHA. BREAKER ASSEMBLY (DEMO DMB50) (OP)

Тип техники

Марка

Модель

Схема

1

2

2

3

3

4

5

6

6

7

7

8

8

8

9

10

11

12

13

13

14

15

16

17

18

19

20

21

22

23

23

24

25

26

26-1

27

27

28

29

30

31

32

33

34

34

34

34

35

36

37

38

39

40

41

42

43

44

45

46

Позиция на иллюстрации	Заводской номер детали		Название детали
F4504305	F4504305		BREAKER ASS'Y, DEMO
1	S4515350		CYLINDER
2	S4515402		U-PACKING
3	S4515403		SEAL DUST
4	S4515421		PISTON
5	S4515422		BUSHING, CYLINDER
6	S4515407		QUAD RING
7	S4515408		SEAL STEP
8	S4515401		O-RING
9	S4515355		CAP HEAD
10	S4515360		FRONT HEAD
11	S4515425		THROUGH BOLT
12	S4515428		WASHER, FOR T BOLT
13	S4514967		KNOCK PIN
14	S4515380		VALVE CASE ASSY
15	S4515470		WASHER, NORD-LOCK
16	S4515480		BOLT
17	S4515466		PLUG, HEX. SOCKET
18	S4514936		O-RING
19	S4514939		O-RING
20	S4515018		PLUG, HEX. SOCKET
21	S4514911		O-RING
22	S4515017		PLUG, HEX. SOCKET
23	S4515465		PLUG, HOLOW
24	S4515035		ADJUST ASS'Y
25	S4515455		RING, THRUST
26	S4515307		FRONT COVER
26-1	S4515450		FRONT COVER
27	S4515460		PIN STOP
28	S4515096		PLUG, SCREW+RUBBER
29	S4515086		PLUG, SCREW+RUBBER
30	S4515490		PIN CHISEL
31	S4515020		GREASE NIPPLE
32	S4515015		PLUG HOLLOW
33	S4515418		PLUG
34	S4515435		CHISEL, MOIL POINT
34	S4515440		CHISEL, FLAT
34	S4515445		CHISEL, CONICAL
34	S4515430		CHISEL, BLUNT
35	S4515502		SCREW COUPLING
36	S4514927		O-RING
37	S4515505		HELI COIL
38	S4515480		BOLT
39	S4514929		O-RING
40	S4515475		O-RING
41	S4515501		PLUG, CHOKE
42	S4515366		CASE, VALVE
43	S4515365		VALVE
44	S4515404		O-RING
45	S4515370		PLATE, VALVE
46	S4515470		WASHER, NORD-LOCK
K1	S4515384		SEAL KIT, ALL
K2	S4515385		SEAL KIT, CYLINDER
K3	S4515485		SEAL KIT, VALVE CASE
K4	S4515492		THROUGH BOLT SET
