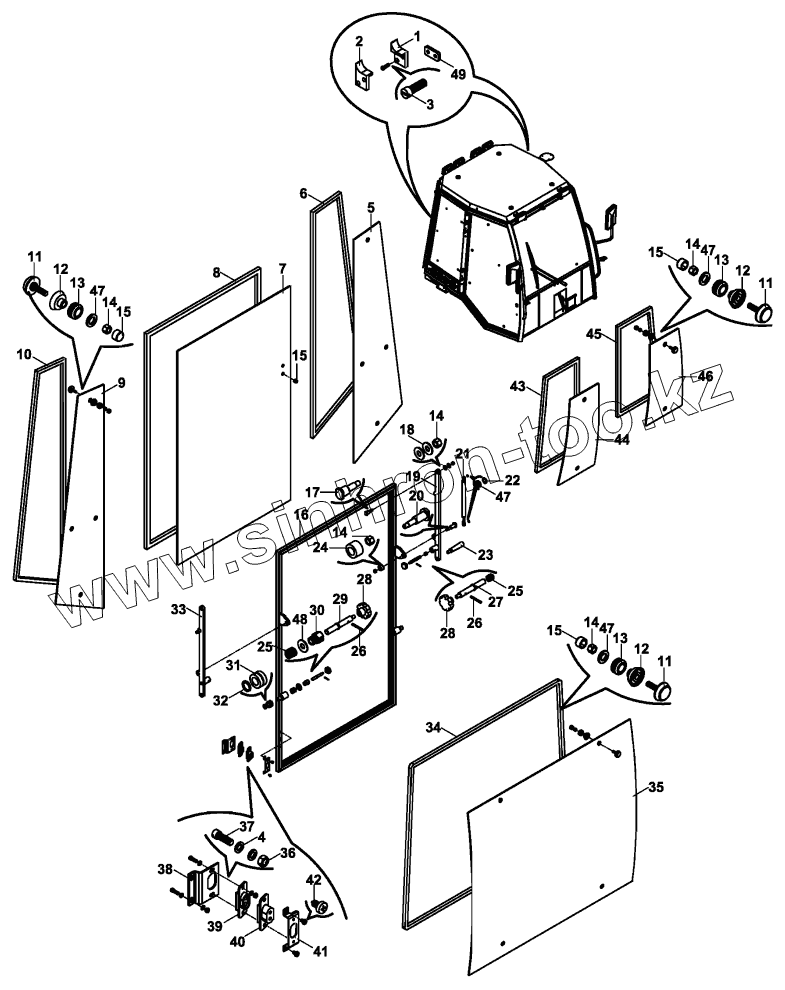

Каталог запасных частей к технике: Hidromek HMK 102S. WINDOWS, FRONT - REAR

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
11
11
12
12
12
13
13
13
14
14
14
14
14
15
15
15
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
47
47
48
49
Позиция на иллюстрации Заводской номер детали Название детали
1 810/40056 SUPPORT, LEFT
2 810/40058 SUPPORT, RIGHT
3 N04/9530350 Bolt
4 N03/0100011 Washer, Pln.
5 F33/21025 GLASS, REAR, LEFT
6 816/01230 STRIP, REAR, LEFT GLASS
7 F33/21010 GLASS, REAR
8 806/01300 STRIP, GLASS, REAR
9 F33/21020 GLASS, REAR, RIGHT
10 816/01220 STRIP, GLASS, REAR, RIGHT
11 N01/0000008 Bolt, Glass Conn.
12 810/40040 PLASTIC, GLASS
13 810/40006 GROMMET
14 N02/5900062 Washer, Pln.
15 814/00155 Cover, Bolt
16 019/24522 FRAME, REAR WINDOW
17 810/14423 PIN
18 N03/0216221 WASHER
19 019/92606 MECHANISM LEVER, GLASS, REAR, LEFT
20 810/14424 PIN
21 S91/70036 DAMPER, REAR GLASS
22 N05/0760003 RETAINING RING
23 F99/20020 LEVER
24 802/01571 BUSH
25 807/06630 SPRING
26 N15/6450628 EXPANSION PIN
27 810/14426 SHAFT
28 N02/0000050 NUT M6
29 810/14427 SHAFT
30 813/00090 SCREW
31 N09/0400680 BEARING
32 N05/0020029 RETAINING RING
33 019/92605 MECHANISM LEVER, GLASS, REAR, RIGHT
34 816/01241 STRIP, RUBBER
35 F33/21001 GLASS, FRONT
36 N02/3570146 Nut
37 N04/1671862 BOLT, M5x15
38 F32/18105 PLATE, SWITCH, UPPER
39 554/00600 SWITCH
40 554/00610 SWITCH
41 F32/18106 PLATE, SWITCH
42 N04/1150362 Bolt
43 816/01250 STRIP, FRONT, RIGHT
44 F33/21040 GLASS, FRONT, RIGHT SIDE
45 816/01255 STRIP, FRONT, LEFT
46 F33/21045 GLASS, FRONT, LEFT SIDE
47 N03/0108017 Washer Pln.
48 N03/0216221 WASHER
49 020/01175 PLATE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
