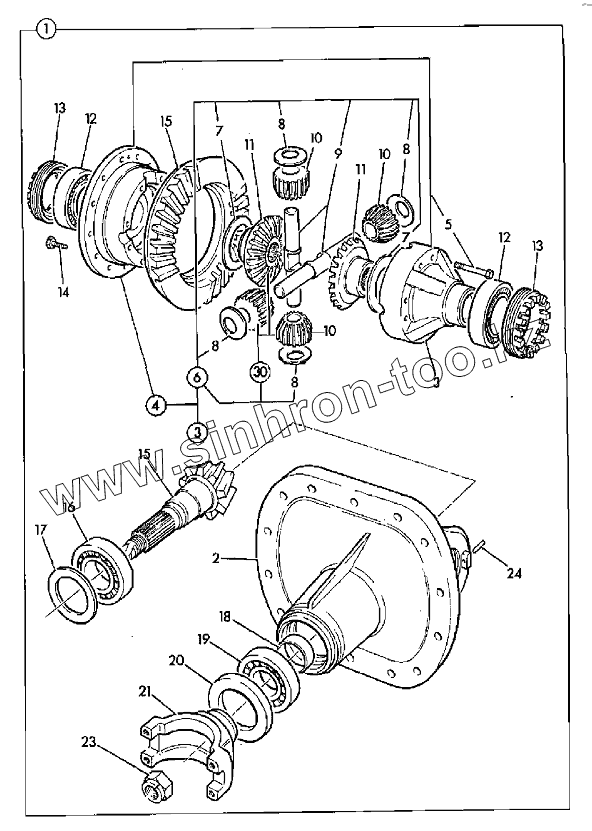

Каталог запасных частей к технике: Hidromek HMK 102S. DIFFERENTIAL, FRONT AXLE, SD 80

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
6
7
8
8
8
8
9
12
12
13
13
14
15
15
15
15
16
17
18
19
20
21
23
23
23
24
30
Позиция на иллюстрации Заводской номер детали Название детали
1 F06/15632 DIFFERENTIAL, ASSY
2 F06/14901 CASING, DRIVE HEAD
3 F06/13910 DIFFERENTIAL, ASSY
4 F06/13905 CASING, ASSEMBLY, DIFFERENTIAL
5 F06/10739 BOLT
6 F06/13950 GEAR, SET, ASSY.
7 F06/17200 WASHER, THRUST
8 F06/17201 WASHER, THRUST
9 F06/13913 PIN, TRUNNION
12 F06/18550 BEARING
13 F06/14750 NUT, ADJUSTING
14 F06/17940 BOLT
15 F06/45868 GEAR, CROWN WHEEL AND PINION, 11T/37T
15 F06/44815 GEAR, CROWN WHEEL AND PINION, 11T/37T
16 F06/18430 BEARING
17 F06/19600 KIT-SHIM
18 F06/19720 KIT-SPACER
19 F06/18410 BEARING
20 F06/18377 SEAL
21 F06/14250 YOKE
23 F06/18040 NUT, M24
23 F06/18050 NUT, M30
24 F06/17880 PIN, TENSION
30 F06/14090 KIT-GEAR, DIFFERENTIAL
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
