Каталог запасных частей к технике: Hidromek HMK 102B ALPHA. ENGINE LIFTING EYES B060001 -

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано ENGINE & TRANSMISSION MOUNTING (STANDARD) B060001 - ENGINE & TRANSMISSION MOUNTING (LUCK-UP) B060001 - ENGINE CONTROL SYSTEM B060001 - AIR INTAKE SYSTEM B060001 - AIR INTAKE SYSTEM B060001 - EXHAUST MOUNTING B060001 - ENGINE COOLING MOUNTING B060001 - B060871 ENGINE COOLING MOUNTING B060872 - RADIATOR ASSEMBLY B060001 - FUEL SYSTEM B060001 - HEATING VENTING SYSTEM B060001 - HEATER UNIT B060001 - HEATING VENTING AIR CONDITIONING SYSTEM B060001 - B062872 HEATING VENTING AIR CONDITIONING SYSTEM B062873 - AIR CONDITIONER UNIT B060001 - B060360 A/C UNIT ASS'Y B060361 - CHASSIS B060001 - STABILIZER, SIDESHIFT B060001 - B062980 POWER SLIDER (OP) B060001 - STABILIZER PADS B060001 - KINGPOST CARRIAGE B060001 - KINGPOST CARRIAGE (WITH POWER SLIDER) B060001 - KINGPOST B060001 - BOOM LOCK AND MECHANISM B060001 - BONNET- PANEL - FRONT GRILL - SIDE COVER MOUNTING B060001 - FENDERS B060001 - B060004 FENDERS B060005 - FENDER , FRONT (NARROW PROFILE TIRE) B060001 - FENDER , FRONT (HMK AXLE) B062099 - FENDER, REAR B060001 - CAB & CAB MOUNTING B060001 - DOOR AND WINDOW, RH B060001 - B061372 DOOR AND WINDOW, RH B061373 - DOOR AND WINDOW, LH B060001 - B061372 DOOR AND WINDOW, LH B061373 - WINDOWS, FRONT - REAR B060001 - CAB ACCESSORIES B060001 - B062797 CAB ACCESSORIES B062798 - CAB (LEVERS MECHANISM) B060001 - CAB (JOYSTICK MECHANISM) (OP) B060001 - CONSOLE, FRONT B060001 - CONSOLE, LH B060001 - B061692 CONSOLE, LH B061693 - CONSOLE, RH B060001 - B061692 CONSOLE, RH B061693 - JOYSTICK MECHANISM, RH B060001 - B060004 JOYSTICK MECHANISM, RH B060005 - JOYSTICK MECHANISM, LH B060001 - B060004 JOYSTICK MECHANISM, LH B060005 - STEERING COLUMN ASSEMBLY B060001 - OPERATOR SEAT ASSEMBLY B060001 - OPERATOR SEAT ASSEMBLY (WITH AIR SUSPENSION) B060001 - OPERATOR SEAT MOUNTING OPERATOR SEAT MOUNTING (WITH AIR SUSPENSION LOADER ARM MOUNTING (1) B060001 - LOADER ARM MOUNTING (1) B060998 - LOADER ARM MOUNTING (2) B060001 - LOADER ARM MOUNTING (3) B060001 - MULTIPORPUSE BUCKET, LOADER (1.1 m3) B060001 - B060978 MULTIPORPUSE BUCKET, LOADER (1.1 m3) B060979 - CUTTING EDGE, MULTIPORPUSE BUCKET (OP) MULTIPURPOSE BUCKET, LOADER (1.3 m3) (OP) B060001 - MULTIPURPOSE BUCKET, LOADER (1.3 m3) (OP) B060001 - MULTIPURPOSE BUCKET, LOADER(WITH QUICK COUPLER)(OP) B060001 - MULTIPORPUSE BUCKET, LOADER (1 m3) (OP) B060001 - MULTIPORPUSE BUCKET, LOADER (1 m3) (OP) B060001 - MULTIPORPUSE BUCKET, LOADER (1,2 m3) (OP) B060001 - MULTIPORPUSE BUCKET, LOADER (1,2 m3) (OP) B060001 - GRAPPLE BUCKET (OP) B060001 - MULTIPORPUSE BUCKET (OP) B060001 - SHOVEL (1.2 m3) (OP) B060001 - CUTTING EDGE, SHOVEL (OP) B060001 - SHOVEL (1.5 m3) (OP) B060001 - CONNECTION MOUNTING, LOADER (NO BUCKET) (OP) B060001 - SHOVEL (OP) SHOVEL (1.2 m3) (WITH QUICK COUPLER) (OP) B060001 - SHOVEL (1.5 m3) (WITH QUICK COUPLER) (OP) B060001 - LEVELLING BLADE (716x2800) (OP) B060001 - LEVELLING BLADE (900x2800) (OP) B060001 - LEVELLING BLADE WITH QUICK COUPLER (716x2800)(OP) B060001 - ADAPTER, QUICK COUPLER (LEVELLING BLADE) (OP) B060001 - LEVELLING BLADE WITH QUICK COUPLER(900x 2800)(OP) B060001 - LEVELLING BLADE (DOUBLE AXIS) (OP) LOG GRAPPLE (2+1 CLAMP) (OP) ADAPTER, QUICK COUPLER (LOG GRAPPLE) (OP) B060001 - LOG GRAPPLE, (WITH VERTICAL MOVEMENT O200mm) (OP) B060001 - LOG GRAPPLE (WITH VERTICAL MOVEMENT O500mm) (OP) B060001 - LOG GRAPPLE (3+2 CLAMP) (OP) B060001 - LOG GRAPPLE (WITH VERTICAL MOVEMENT, 3+2 CLAMP) (OP) BALE GRAPPLE (WITH VERTICAL MOVEMENT, 4+3 CLAMP) (OP) FORKLIFT (MULTIPURPOSE BUCKET) (OP) B060001 - B060978 (NOT: (1) THIS FORKLIFT CAN BE USED WITH MULTIPURPOSE BUCKET NO 06010624-06010647-06010625-06010802-06010646) FORKLIFT (MULTIPURPOSE BUCKET) (OP) B060979 - FORKLIFT (SHOVEL 1.2 m3) (OP) B060001 - FORKLIFT (SHOVEL 1.5 m3) (OP) B060001 - FORKLIFT (WITH QUICK COUPLER) (OP) B060001 - QUICK COUPLER (LOADER) (OP) B060001 - BOOM MOUNTING B060001 - ARM MOUNTING B060001 - TELESCOPIC ARM MOUNTING (OP) B060001 - B062892 TELESCOPIC ARM MOUNTING (OP) B062893 - TELESCOPIC ARM MOUNTING (AUGER/TILTING BUCKET)(OP) B060001 - B062892 BUCKET LINKAGE B060001 - BUCKET, BACKHOE (300 mm) (OP) B060001 - BUCKET, BACKHOE (350 mm) (OP) B060001 - BUCKET, BACKHOE (400 mm) (OP) B060001 - BUCKET, BACKHOE (500 mm) (OP) B060001 - BUCKET, BACKHOE (600 mm) (OP) B060001 - BUCKET, BACKHOE (700 mm) (OP) B060001 - BUCKET, BACKHOE (800 mm) (OP) B060001 - BUCKET, BACKHOE (900 mm) (OP) B060001 - CONNECTION MOUNTING, BACKHOE (NO BUCKET) (OP) B060001 - BUCKET, BACKHOE (1500 mm) B060001 - SKELETON BUCKET (OP) B060001 - TILTING BUCKET (OP) B060001 - BUCKET, BACKHOE (TRAPEZE) (OP) B060001 - QUICK COUPLER, BACKHOE (OP) B060001 - BREAKER MOUNTING (MONTABERT- SC 36) (OP) B060001 - BREAKER ASSEMBLY (MONTABERT- SC 36) (OP) B060001 - BREAKER MOUNTING (MONTABERT- SC 28) (OP) B060001 - BREAKER ASSEMBLY (MONTABERT- SC 28) (OP) B060001 - BREAKER MOUNTING (DEMO DMB50) (OP) B060001 - BREAKER ASSEMBLY (DEMO DMB50) (OP) B060001 - BREAKER MOUNTING (DEMO DMB70) (OP) B060001 - BREAKER ASSEMBLY (DEMO DMB70) (OP) B060001 - BREAKER MOUNTING (LIFTON LH 360) (OP) B060001 - BREAKER ASSEMBLY (LIFTON LH 360) (OP) B060001 - BREAKER MOUNTING (TOKU) (OP) B060001 - BREAKER ASSEMBLY (TOKU) (OP) B060001 - BREAKER MOUNTING (MONTABERT-HKR 140) (OP) B060001 - BREAKER ASSEMBLY (MONTABERT- HKR 140) (OP) B060001 - BREAKER MOUNTING (MONTABERT- 95) (OP) B060001 - BREAKER ASSEMBLY (MONTABERT- 95) (OP) B060001 - BREAKER MOUNTING (DEMO S700V) (OP) B060001 - BREAKER ASSEMBLY (DEMO S700V) (OP) B060001 - AUGER (O350x1000) (OP) B060001 - AUGER (O500x1300) (OP) B060001 - AUGER (O610x1600) (OP) B060001 - RIPPER (OP) B060001 - ADAPTER, QUICK COUPLER (GRAPPLE) (OP) B060001 - GRAPPLE (OP) B060001 - TOW HOOK (MECHANICAL) (OP) B060001 - TOOTH PROTECTOR (OP) B060001 - POWER TRAIN MOUNTING B060001 - POWER TRAIN MOUNTING (HMK AXLE) B062099 - WHELL & TIRE GROUP, FRONT B060001 - WHELL & TIRE GROUP, FRONT (NARROW PROFILE TIRE) B060001 - WHELL & TIRE GROUP, FRONT (HMK AXLE) B060001 - WHEEL & TIRE GROUP, REAR (NARROW PROFILE TIRE) B060001 - WHEEL & TIRE GROUP, REAR B060001 - WHEEL & TIRE GROUP, REAR B060001 - WHEEL & TIRE GROUP, REAR (NARROW PROFILE TIRE) B060001 - FRONT AXLE FRONT AXLE, BEVER GEAR SET B060001 - B060249 FRONT AXLE, INPUT FLANGE B060001 - B060249 FRONT AXLE, DIFFERENTIAL B060001 - B060249 FRONT AXLE, AXLE CASING PARTS B060001 - B060249 FRONT AXLE, HUB B060001 - B060249 FRONT AXLE, PLANETARY DRIVE B060001 - B060249 FRONT AXLE, STEERING CYLINDER B060001 - B060249 FRONT AXLE, AXLE CASING B060001 - B060249 FRONT AXLE, JOINT HOUSING MOUNTING B060001 - B060249 FRONT AXLE B060250 - FRONT AXLE, BEVER GEAR SET B060250 - FRONT AXLE, INPUT FLANGE B060250 - FRONT AXLE, DIFFERENTIAL B060250 - FRONT AXLE, AXLE CASING PARTS B060250 - FRONT AXLE, HUB B060250 - FRONT AXLE, PLANETARY DRIVE B060250 - FRONT AXLE, STEERING CYLINDER B060250 - FRONT AXLE, AXLE CASING B060250 - FRONT AXLE, JOINT HOUSING MOUNTING B060250 - FRONT AXLE, HMK B062099 - FRONT AXLE, BALL JOINT- HMK B062099 - FRONT AXLE, INPUT FLANGE- HMK B062099 - FRONT AXLE, DIFFERANTIAL- HMK B062099 - FRONT AXLE, AXLE CASING PARTS- HMK FRONT AXLE, PLANETARY DRIVE, RIGHT- HMK B062099 - FRONT AXLE, PLANETARY DRIVE, LEFT- HMK B062099 - FRONT AXLE, STEERING CYLINDER- HMK B062099 - REAR AKS B060001 - REAR AXLE, BEVEL GEAR SET B060001 - REAR AXLE, INPUT FLANGE B060001 - REAR AXLE, DIFFERENTIAL B060001 - REAR AXLE, M- DISC BRAKE B060001 - REAR AXLE, AXLE CASING PARTS B060001 - REAR AXLE, HUB AND PLANETARY DRIVE B060001 - REAR AXLE, PARK BRAKE B060001 - REAR AXLE, AXLE CASING PARTS B060001 - TRANSMISSION (STANDARD) B060001 - TRANSMISSION, TORGUE CONVERTER ARRANGMENT (STANDARD) B060001 - TRANSMISSION, PUMP GROUP B060001 - TRANSMISSION, FRONT CASING AND ANCILLIARIES (STANDARD) B060001 - TRANSMISSION, VALVE GROUP B060001 - TRANSMISSION, REAR CASING AND ANCILLIARIES (STANDARD) B060001 - TRANSMISSION, CLUTCH GROUP B060001 - TRANSMISSION, SHAFT GROUP - MAIN (STANDARD) B060001 - TRANSMISSION, SHAFT GROUP IDLER B060001 - TRANSMISSION, SHAFT GROUP INPUT (STANDARD) B060001 - TRANSMISSION, SHAFT GROUP PTO (STANDARD) B060001 - TRANSMISSION, SHAFT GROUP COUNTER (STANDARD) B060001 - TRANSMISSION (LUCK-UP) B060001 - TRANSMISSION, TORGUE CONVERTER ARRANGMENT (LUCK-UP) B060001 - TRANSMISSION, PUMP GROUP (LUCK- UP) B060001 - TRANSMISSION, FRONT CASING AND ANCILLIARIES (LUCK-UP) B060001 - TRANSMISSION, VALVE GROUP (LUCK- UP) B060001 - TRANSMISSION, REAR CASING AND ANCILLIARIES (LUCK-UP) B060001 - TRANSMISSION, CLUTCH GROUP (LUCK- UP) B060001 - TRANSMISSION, SHAFT GROUP - MAIN (LUCK-UP) B060001 - TRANSMISSION, SHAFT GROUP IDLER B060001 - TRANSMISSION, SHAFT GROUP INPUT (LUCK-UP) B060001 - TRANSMISSION, SHAFT GROUP PTO (LUCK-UP) B060001 - TRANSMISSION, SHAFT GROUP COUNTER (LUCK-UP) B060001 - PARKING BRAKE HYDRAULIC TANK MOUNTING (VERSION 2) B060001 - (NOTE: (1) ALSO APPLIED TO THE MACHINE WITH SERIAL NO B061298-B061300-B061301-B061302-B061303-B061304-B061306) LOADER CONTROL MECHANISM (MULTIPURPOSE BUCKET & LEVERS) (TYPE A) B060001 - B060499 LOADER CONTROL MECHANISM (MULTIPURPOSE BUCKET & LEVERS) (TYPE A) B060500 - LOADER CONTROL&MECHANISM(SHOVEL & LEVERS) (TYPE A) B060001 - LOADER CONTROL MECHANISM (MULTIPURPOSE BUCKET & JOYSTICK) (TYPE A) B060001 - LOADER CONTROL MECHANISM (SHOVEL & JOYSTICK) (TYPE A) B060001 - B060074 LOADER CONTROL MECHANISM (SHOVEL & JOYSTICK ) (TYPE A) B060075 - BACKHOE CONTROL & MECHANISM (TYPE A) B060001 - B060074 BACKHOE CONTROL & MECHANISM (TYPE A) B060075 - B060086 BACKHOE CONTROL & MECHANISM (TYPE A) B060087 - BACKHOE CONTROL & MECHANISM (X- DIAGONAL) (TYPE A) B060001 - B060141 BACKHOE CONTROL & MECHANISM (X- DIAGONAL) (TYPE A) B060142 - ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A) B060252 - ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A) B060001 - B060251 ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A) B060252 - HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & TURNER) (TYPE A) B060001 - B060024 HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & TURNER) (TYPE A) B060025 - B060074 HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & TURNER) (TYPE A) B060075 - B060086 HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & TURNER) (TYPE A) B060087 - B060308 HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & TURNER) (TYPE A) B060309 - B061398 HYDRAULIC PIPING, MAIN (STD. ARM & MULRIPURPOSE BUCKET & TURNER) (TYPE A) B061399 - HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & TURNER) (TYPE A) B060001 - B060024 HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & TURNER) (TYPE A) B060025 - B060074 HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & TURNER) (TYPE A) B060075 - B060086 HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & TURNER) (TYPE A) B060087 - B060308 HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & TURNER) (TYPE A) B060309 - B061398 HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL & TURNER) (TYPE A) B061399 - HYD. PIPING MAIN (TELESCOPIC ARM&MULRIPURPOSE BUCKET&TURNER)(TYPE A) B060001 - B060024 HYD. PIPING MAIN (TELESCOPIC ARM&MULRIPURPOSE BUCKET&TURNER)(TYPE A) B060025 - B060074 HYD. PIPING MAIN (TELESCOPIC ARM&MULRIPURPOSE BUCKET&TURNER)(TYPE A) B060075 - B060086 HYD. PIPING MAIN (TELESCOPIC ARM&MULRIPURPOSE BUCKET&TURNER)(TYPE A) B060087 - B060308 HYD. PIPING MAIN (TELESCOPIC ARM&MULRIPURPOSE BUCKET&TURNER)(TYPE A) B060309 - B061398 HYD. PIPING MAIN (TELESCOPIC ARM&MULRIPURPOSE BUCKET&TURNER)(TYPE A) B061399 - HYD. PIPING MAIN (TELESCOPIC ARM&SHOVEL&TURNER) (TYPE A) B060001 - B060024 HYD. PIPING MAIN (TELESCOPIC ARM&SHOVEL&TURNER) (TYPE A) B060025 - B060074 HYD. PIPING MAIN (TELESCOPIC ARM&SHOVEL&TURNER) (TYPE A) B060075 - B060086 HYD. PIPING MAIN (TELESCOPIC ARM&SHOVEL&TURNER) (TYPE A) B060087 - B060308 HYD. PIPING MAIN (TELESCOPIC ARM&SHOVEL&TURNER) (TYPE A) B060309 - B061398 HYD. PIPING MAIN (TELESCOPIC ARM&SHOVEL&TURNER) (TYPE A) B061399 - HYDRAULIC PIPING, PILOT (TYPE A) B060001 - B060074 HYDRAULIC PIPING, PILOT (TYPE A) B060075 - B060086 HYDRAULIC PIPING, PILOT (TYPE A) B060087 - HYDRAULIC PIPING, PILOT (LEFT HAND) (TYPE A) B060001 - PATTERN SHIFTER (TYPE A) B060001 - LOADER HYDRAULIC PIPING (SHOVEL) (TYPE A) (OP) B060001 - B060004 LOADER HYDRAULIC PIPING (SHOVEL) (TYPE A) (OP) B060005 - LOADER HYDRAULIC PIPING (MULTIPURPOSE BUCKET) (TYPE A) B060001 - B060004 LOADER HYDRAULIC PIPING (MULTIPURPOSE BUCKET) (TYPE A) B060005 - LOADER HYDRAULIC PIPING, LIFT CYLINDER, WITH PROTECTION VALVE B060001 - LOADER HYD. PIPING, BUCKET CYLINDER B060001 - LOADER HYDRAULIC PIPING, MSS B060001 - HOSE HOLDER SET (STD. ARM) B060001 - B060473 HOSE HOLDER SET (STD. ARM) B060474 - HOSE HOLDER SET (TELESCOPIC ARM) B060001 - B060473 HOSE HOLDER SET (TELESCOPIC ARM) B060474 - HYDRAULIC PIPING, STABILIZER CYLINDER (TYPE A) B060001 - HYD. PIPING, STABILIZER CYLINDER (WITH SAFETY LOCKING VALVE) (OP) B060001 - HYDRAULIC PIPING, HYDROCLAMP (TYPE A) B060001 - HYDRAULIC PIPING, SWING CYLINDER (TYPE A) B060001 - BACKHOE HYDRAULIC PIPING, BOOM CYLINDER (TYPE A) B060001 - BACKHOE HYD. PIPING, BOOM CYLINDER (WITH SAFETY LOCK VALVE) (OP) B060001 - BACKHOE HYDRAULIC PIPING, ARM CYLINDER (TYPE A) B060001 - BACKHOE HYD. PIPING, ARM CYLINDER (WITH SAFETY LOCK VALVE) (OP) B060001 - BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER (TYPE A) B060001 - B060499 BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER (TYPE A) B060500 - BACKHOE HYD. PIPING, BUCKET CYLINDER (TELESCOPIC) (TYPE A) (OP) B060001 - B060473 BACKHOE HYD. PIPING, BUCKET CYLINDER (TELESCOPIC) (TYPE A) (OP) B060474 - SINGLE ACTING HYDRAULIC PIPING (BREAKER & STD. ARM) (TYPE A) B060001 - B060499 SINGLE ACTING HYDRAULIC PIPING (BREAKER & STD. ARM) (TYPE A) B060500 - SINGLE ACTING HYDRAULIC PIPING (BREAKER & TELESCOPIC)(TYPE A) B060001 - B060014 SINGLE ACTING HYDRAULIC PIPING (BREAKER & TELESCOPIC)(TYPE A) B060015 - B060473 SINGLE ACTING HYDRAULIC PIPING (BREAKER & TELESCOPIC)(TYPE A) B060474 - DOUBLE ACTING HYD.PIPING,STD ARM(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) B060001 - B060473 DOUBLE ACTING HYD.PIPING,STD ARM(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) B060474 - DOUBLE ACTING HYD.PIPING,TELESCOPIC,LV(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) B060001 - B060473 DOUBLE ACTING HYD.PIPING,TELESCOPIC,LV(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) B060474 - DOUBLE ACTING HYD.PIPING,TELESCOPIC,JY(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) B060001 - B060473 DOUBLE ACTING HYD.PIPING,TELESCOPIC,JY(AUGER/TILTING BUCKET,BREAKER)(TYPE A)(OP) B060474 - HYDRAULIC, HAND BREAKER (TYPE A) (OP) B060001 - HYDRAULIC PIPING, DIFFERENTIAL LOCK B060001 - POWER SLIDER HYDRAULIC (OP) B060001 - GEAR PUMP B060001 - B060024 GEAR PUMP B060025 - B061398 GEAR PUMP B061399 - LOADER CONTROL VALVE, MULTIPURPOSE BUCKET (PROPORTIONAL) (TYPE A) B060001 - LOADER CONTROL VALVE, GP BUCKET (TYPE A) B060001 - BACKHOE CONTROL VALVE, MECHANIC (TYPE A) B060001 - B060201 BACKHOE CONTROL VALVE, MECHANIC (TYPE A) B060202 - BACKHOE CONTROL VALVE (LEVER & X- DIAGONAL) (TYPE A) B060001 - BACKHOE CONTROL VALVE, JOYSTICK (TYPE A) B060001 - B060503 BACKHOE CONTROL VALVE, JOYSTICK (TYPE A) B060504 - ADDITIONAL ATTACHMENT CONTROL VALVE (TYPE A) B060001 - B060052 ADDITIONAL ATTACHMENT CONTROL VALVE (TYPE A) B060053 - REMOTE CONTROL VALVE, RH B060001 - REMOTE CONTROL VALVE, LEFT B060001 - LIFT CYLINDER, LOADER, RH B060001 - B060004 LIFT CYLINDER, LOADER B060005 - LIFT CYLINDER, LOADER, LEFT B060001 - B060004 BUCKET CYLINDER, LOADER, RH B060001 - BUCKET CYLINDER, LOADER, LH B060001 - MULTIPURPOSE BUCKET CYLINDER B060001 - B060518 MULTIPURPOSE BUCKET CYLINDER B060519 - STABILIZER CYLINDER, RH B060001 - STABILIZER CYLINDER, LH B060001 - SWING CYLINDER B060001 - BOOM CYLINDER, BACKHOE B060001 - B060461 BOOM CYLINDER, BACKHOE B060462 - ARM CYLINDER, BACKHOE B060001 - B060399 ARM CYLINDER, BACKHOE B060400 - BUCKET CYLINDER, BACKHOE B060001 - BUCKET CYLINDER, BACKHOE, TELESCOPIC B060001 - TELESCOPIC CYLINDER, BACKHOE B060001 - QUICK COUPLER CYLINDER, LOADER B060001 - LEVELLING BLADE CYLINDER B060001 - LEVELLING BLADE CYLINDER (DOUBLE AXIS) RH B060001 - LEVELLING BLADE CYLINDER (DOUBLE AXIS) LH B060001 - LEVELLING BLADE CYLINDER (DOUBLE AXIS) CENTER B060001 - LOG GRAPPLE CYLINDER B060001 - LOG GRAPPLE CYLINDER (WITH VERTICAL MOVEMENT) B060001 - TILTING BUCKET CYLINDER B060001 - BOOM LOCKING CYLINDER (OP) B060001 - ARM CYLINDER, BACKHOE (WITH SAFETY LOCK VALVE) (OP) B060001 - B060399 ARM CYLINDER, BACKHOE (WITH SAFETY LOCK VALVE) (OP) B060400 - POWER SLIDER CYLINDER, OUTER (OP) B060001 - POWER SLIDER CYLINDER, INNER (OP) B060001 - PILOT SUPPLY BLOCK (WITH PROPORTIONAL VALVE) B060001 - MSS, VALVE B060001 - VALVE, PATTERN SHIFTER B060001 - RAM, GRAPPLE BUCKET B060001 - RAM, GRAPPLE B060001 - MULTIPURPOSE BUCKET CYLINDER B060001 - HYDRAULIC PIPING, STEERING (GEAR PUMP) (OP) B060001 - HYDRAULIC PIPING, STEERING (GEAR PUMP, HMK AXLE) (OP) B062099 - HYDRAULIC PIPING, BRAKE (GEAR PUMP) CAB ELECTRIC (1) B060001 - CAB ELECTRIC (2) B060001 - CAB ELECTRIC (2) B060001 - CAB ELECTRIC (3) B060001 - CAB ELECTRIC (4) B060001 - CAB ELECTRIC (5) B060001 - CAB ELECTRIC (6) B060001 - CAB ELECTRIC (7) B060001 - CAB ELECTRIC (8) B060001 - ELECTRIC (1) B060001 - B060379 ELECTRIC (1) B060380 - B062737 ELECTRIC (1) B062738 - LEVELLING BLADE,(WITH TWO AXIS TURN) HARNESS (OP) COMPRESSOR & HARNESS B060001 - SMARTLINK (GEAR PUMP) B060001 - TOOL KIT ENGINE, 1104D-44TA B060001 - CYLINDER HEAD COVER B060001 - CAM SHAFT B060001 - ROCKER ASSEMBLY B060001 - PISTONS & RINGS B060001 - FLYWHEEL B060001 - FLYWHEEL HOUSING B060001 - CRANKSHAFT MAIN & BIG END BEARINGS B060001 - CYLINDER HEAD ASSY B060001 - CYLINDER BLOCK &LINERS B060001 - CONNECTING RODS B060001 - REAR END OIL SEAL B060001 - BLANKING PLATES B060001 - FRONT END DRIVE INPUT B060001 - TIMING CASE (1) B060001 - TIMING CASE (2) B060001 - TIMING COVER (3) B060001 - DRIVE ADAPTOR B060001 - BLANKING PLUGS B060001 - INDUCTION MANIFOLD B060001 - ENGINE LIFTING EYES B060001 - MISCALLANEOUS & AUXILIARIES B060001 - BLANKING PLATES B060001 - SUMP B060001 - DIPSTICK & FILLER TUBE B060001 - OIL STRAINER B060001 - FILLER B060001 - OIL COOLER B060001 - OIL FILTER B060001 - REMOTE LUBRICATING OIL FILTER B060001 - LUBRICATING OIL PUMP & DELIVERY HOUSING B060001 - FEED PIPES B060001 - LEAK-OFF PIPES B060001 - BREATHER B060001 - FAN DRIVE B060001 - WATER PUMP B060001 - PIPES B060001 - WATER OUTLET HOUSING B060001 - FUEL INJECTION PUMP B060001 - HIGH PRESSURE FUEL PIPES B060001 - ATOMISERS B060001 - FUEL LEAK-OFF PIPE B060001 - LIFT PUMP B060001 - B060020 LIFT PUMP B060021 - INJECTION PUMP TO FILTER PIPE B060001 - BOOST CONTROL PIPE B060001 - FUEL FILTER B060001 - PICK-UP SENSOR B060001 - PICK-UP SENSOR B060001 - STARTER MOTOR B060001 - ALTERNATOR B060001 - ALTERNATOR BRACKET & FIXINGS B060001 - PULLEYS B060001 - HEATER PLUGS B060001 - LUBRICATION OIL PRESSURE SWITCHGAUGE B060001 - TEMPERATURE GAUGE & SENDER B060001 - TURBOCHARGER B060001 - PIPEWORK & CONNECTIONS B060001 - EXHAUST MANIFOLD B060001 - PIPEWORK & CONNECTION B060001 - INDUCTION MANIFOLD B060001 -

1

2

3

4

5

6

7

8

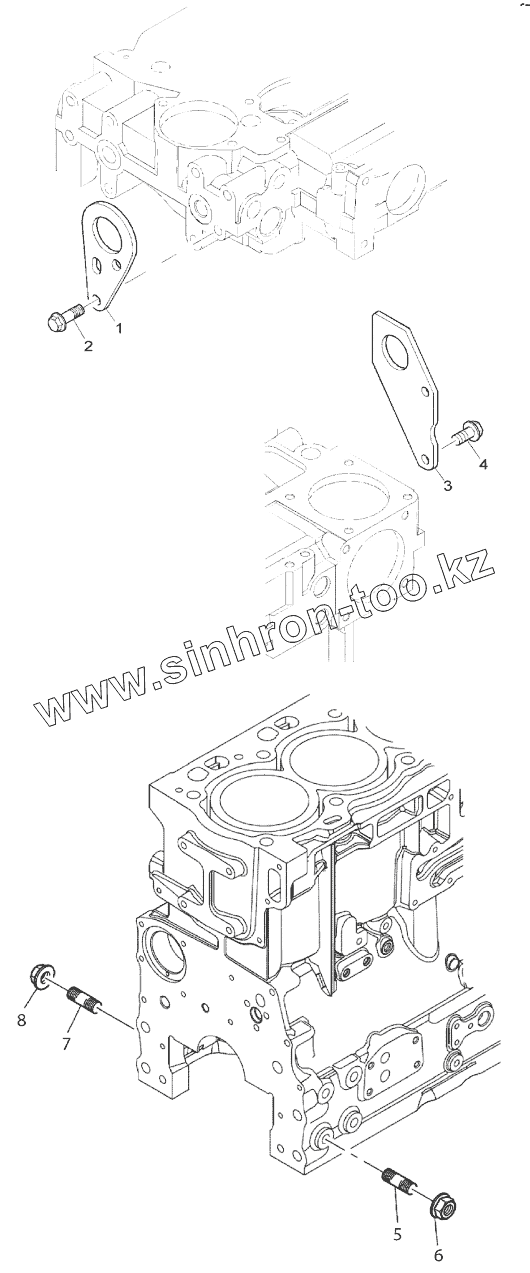

Позиция на иллюстрации	Заводской номер детали		Название детали
1	F0136120		LIFTING BRACKET
2	F0123123		BOLT
3	F0136220		LIFTING BRACKET
4	F0123123		BOLT
5	S0120401		STUD
6	S0120402		NUT
7	S0120401		STUD
8	S0120402		NUT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
