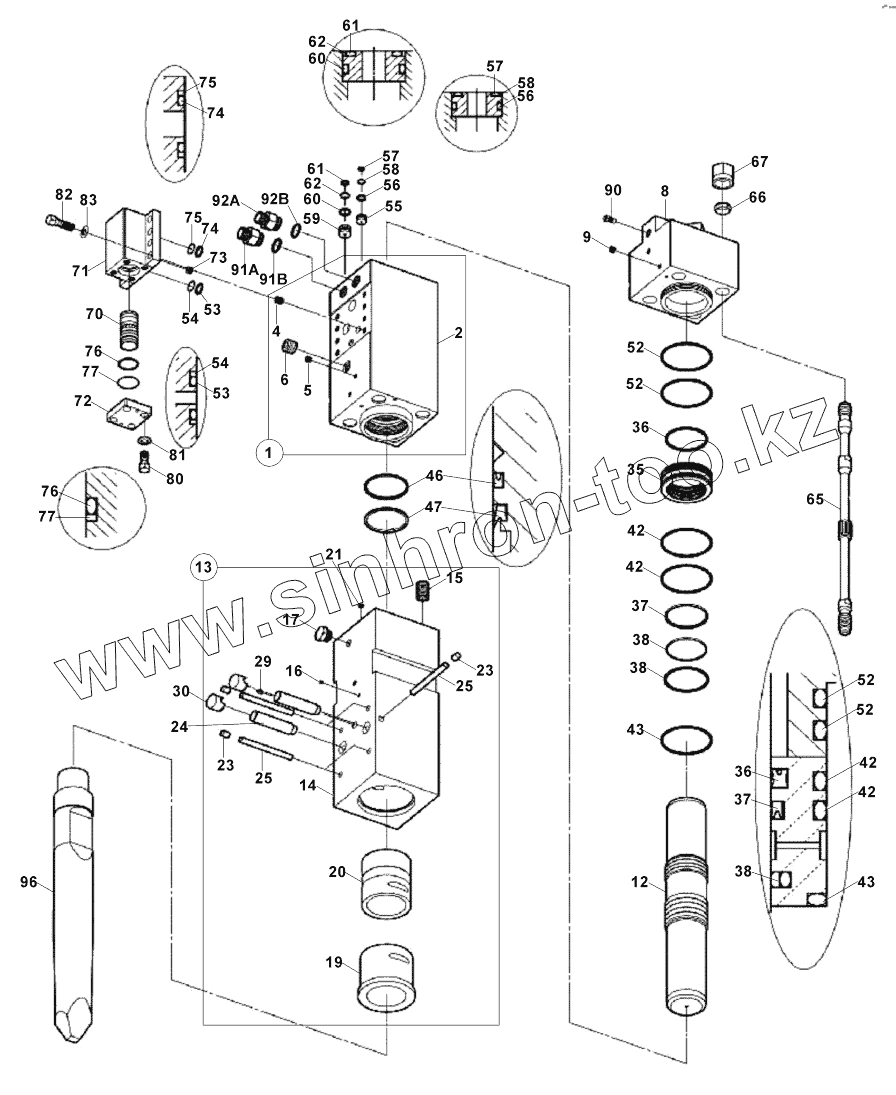

  5. BREAKER ASSEMBLY (TOKU) (OP) B060001 -

Каталог запасных частей к технике: Hidromek HMK 102B ALPHA. BREAKER ASSEMBLY (TOKU) (OP) B060001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
4
5
6
8
9
12
13
14
15
16
17
19
20
21
23
23
24
25
25
29
30
35
36
36
37
37
38
38
38
42
42
42
42
43
43
46
47
52
52
52
52
53
53
54
54
55
56
56
57
57
58
58
59
60
60
61
61
62
62
65
66
67
70
71
72
73
74
74
75
75
76
76
77
77
80
81
82
83
90
91A
91A
91B
92A
92A
92B
96
96
96
96
96
96
Позиция на иллюстрации Заводской номер детали Название детали
F4502960 F4502960 BREAKER ASSEMBLY
1 S4502998 CYLINDER ASS'Y, BREAKER
2 S4503000 CYLINDER
4 S4502982 PLUG
5 S4502980 PLUG
6 S4502922 HELICOIL
8 S4503002 CYLINDER COVER
9 S4502980 PLUG
12 S4503004 PISTON
13 S4503006 CHISEL HOLDER CP
14 S4503007 CHISEL HOLDER
15 S4502924 HELICOIL
16 S4502978 PLUG
17 S4502992 PLUG
19 S4502996 CHISEL BUSHING
20 S4502994 CHISEL HOLDER BUSHING
21 S4502926 O-RING
23 S4502988 RETAINER PIN STOPPER PLUG
24 S4503010 PIN
25 S4503012 STOPPER PIN
29 S4502984 GREASE NIPPLE
30 S4502990 RETAINER PIN PLUG
34 S4502900 SEAL KIT
35 S4503020 PACKING BUSHING
36 S4502960 SEAL
37 S4502962 OIL SEAL
38 S4502968 SLIDE RING S
42 S4502938 O-RING
43 S4502940 O-RING
46 S4502964 OIL SEAL
47 S4502958 SEAL DUST
52 S4502938 O-RING
53 S4502932 O-RING
54 S4502952 BACK UP RING
55 S4503032 CYLINDER PLUG
56 S4502942 O-RING
57 S4502928 O-RING
58 S4502948 BACK UP RING
59 S4503030 CYLINDER PLUG
60 S4502944 O-RING
61 S4502930 O-RING
62 S4502950 BACK UP RING
65 S4503036 THROUGH BOLT
66 S4502986 SIDE BOLT RING
67 S4502976 NUT
70 S4503038 CONTROL VALVE
71 S4503022 CONTROL VALVE BOX
72 S4503024 CONTROL VALVE CAP
73 S4503040 CHOKE PLUG
74 S4502934 O-RING
75 S4502954 BACK UP RING
76 S4502936 O-RING
77 S4502956 BACK UP RING
80 S4502974 BOLT
81 S4502970 WASHER
82 S4502972 BOLT
83 S4502970 WASHER
90 S4503034 GAS VALVE CP
91A S4503026 ADAPTER
91A 80624230 ADAPTER
91B S4502946 O-RING
92A S4503028 ADAPTER
92A 80624232 ADAPTER
92B S4502946 O-RING
96 F4503211 POINT CHISEL
96 F4503213 POINT CHISEL LONG
96 F4503212 FLAT END CHISEL
96 F4503214 FLAT END CHISEL LONG
96 F4503210 CHISEL, FLAT
96 F4503215 CHISEL, FLAT, LONG
