Hidromek
HMK 102B
RAM, MAIN BOOM, BACKHOE

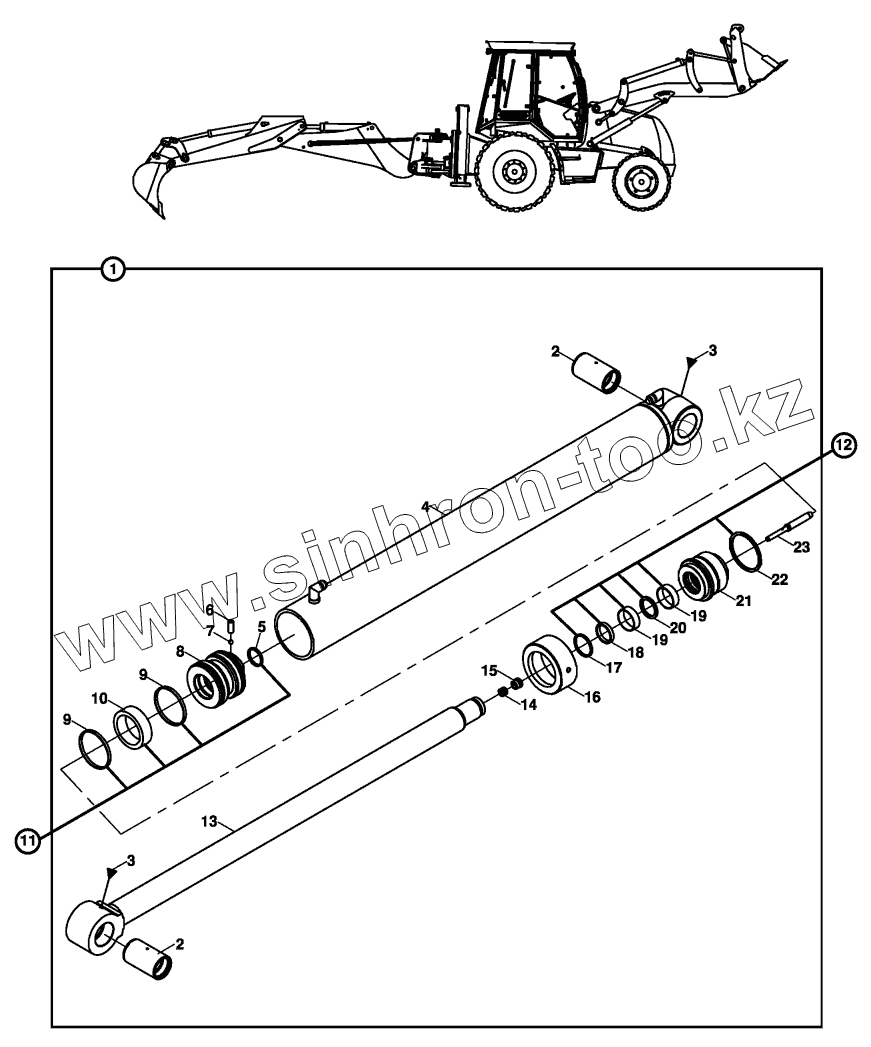

Каталог запасных частей к технике: Hidromek HMK 102B. RAM, MAIN BOOM, BACKHOE
