Каталог запасных частей к технике: Hidromek HMK 102B. POWER TRACKROD, FRONT AXLE, SD 55

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано SHOVEL, CLAM, 4 IN 1 MULTIPURPOSE SHOVEL SHOVEL, FORKLIFT MOUNTED SHOVEL, CLAM, FORKLIFT MOUNTED SHOVEL, CLAM, FORKLIFT MOUNTED BUCKET, BACKHOE CHASSIS BONNET - ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN BONNET - ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN PANEL, ENGINE, RIGHT SIDE PANEL, ENGINE, LEFT SIDE BONNET CHASSIS AND HYDRAULIC COMPONENTS MOUNTINGS CHASSIS - CAB - ENGINE MOUNTINGS TANK, HYDRAULIC TANK, FUEL AXLE - CHASSIS MOUNTINGS FENDERS OPERATOR CAB DOOR AND WINDOW, SIDE, RIGHT DOOR AND WINDOW, SIDE, LEFT WINDOWS, FRONT - REAR WIPER SYSTEM CAB INTERIOR TRIMMING AND ROOF COVER, FRONT, CONTROL INSTRUMENT PANEL, FRONT, CONTROL COVER CONTROL LEVERS COVER, SIDE, RIGHT INSTRUMENT PANEL, SIDE, RIGHT COVER, SIDE, LEFT AND CAB CONSOLES PROTECTION COVER, BACKHOE CONTROL MECHANISM ACCESSORIES, OPERATOR CAB OPERATOR SEAT RADIO-CASETTE PLAYER SYSTEM LIGHTS REAR LIGHTING UNIT, BACKHOE LOADER LOADER ATTACHMENT MOUNTING LOADER MOUNTING-1, LOADER ARM WITH BOX SECTION LOADER MOUNTING-2, LOADER ARM WITH BOX SECTION SHOVEL LEVELLING MECHANISM MOUNTINGS, BACKHOE COMPONENTS STABILISER, SIDESHIFT KINGPOST- CARRIAGE- SLEW / SWING RAM MOUNTINGS KINGPOST- CARRIAGE- SLEW / SWING RAM MOUNTINGS KINGPOST CARRIAGE KINGPOST CARRIAGE KINGPOST CARRIAGE KINGPOST CARRIAGE KINGPOST, STEEL KINGPOST, CASTING KINGPOST, CASTING MAIN BOOM DIPPER - TIPPING LINK - TIPPING LEVER AND RAM MOUNTINGS DIPPER-TIPPING LINK/LEVER-RAM MOUNT., COMMON CENTERED RAM&TIPPING LINK DIPPER DIPPER, COMMON CENTERED RAM AND TIPPING LINK DIPPER, TELESCOPIC TELESCOPIC DIPPER, COMMON CENTERED RAM AND TIPPING LINK ELECTRIC CIRCUIT DIAGRAM FUSE BOX & RELAYS AND LAYOUT HARNESS, CAB, SINGLE BRAKE PEDAL HARNESS, CAB, DOUBLE BRAKE PEDAL HARNESS, ENGINE, SINGLE BRAKE PEDAL HARNESS, ENGINE, DOUBLE BRAKE PEDAL HARNESS, HEADLIGHTS & TURN INDICATOR HARNESS, REAR LIGHTING UNIT & STABILISER SWITCH STABILISER SWITCH ASSEMBLY & WARNING HORN & RELAY ACCUMULATOR AND ELECTRIC CONNECTIONS FAN CABLE, AIR CONDITIONER CONTROL MECHANISM, LOADER- WITH LEVER CONTROL CONTROL MECHANISM, LOADER- WITH JOYSTICK CONTROL CONTROL LEVERS, LOADER CONTROL LEVERS, LOADER, JOYSTICK CONTROL MECHANISM, BACKHOE CONTROL LEVERS, BACKHOE PEDAL MOUNTING, NB+KT, TB, TB+KT BOOM LOCKING AND MECHANISM BOOM LOCKING AND MECHANISM BOOM LOCKING AND MECHANISM BOOM LOCKING AND MECHANISM HAND THROTTLE AND ACCELERATOR PEDAL HAND THROTTLE AND ACCELERATOR PEDAL PARKING BRAKE PEDAL, BRAKE, SUSPENDED, SINGLE PEDAL, BRAKE, SUSPENDED, DOUBLE STEERING COLUMN STEERING COLUMN, ADJUSTABLE CIRCIUT, HYDRAULIC CIRCIUT, HYDRAULIC, PUMP, COMMON CIRCUIT, HYDR., ADDITIONAL, NB, WITH E2-1-1-OP1 CIRCUIT, HYDR., ADDITIONAL, NB, WITH E2-1-1-OP2 CIRCUIT, HYDR., ADDITIONAL, NB+KT, A.K.V., WITH E2-1-1-OP1 CIRCUIT, HYDR., ADDITIONAL, NB+KT, A.K.V, WITH E2-1-1-OP2 CIRCUIT, HYDR., ADDITIONAL, NB+KT+E.K.K.V, WITH E2-1-1-OP1&OP2 CIRCUIT, HYDR., ADDITIONAL, TB, WITH E2-1-1-OP1 CIRCUIT, HYDR., ADDITIONAL, TB, WITH E2-1-1-OP2 CIRCIUT, HYDR., ADDITIONAL, TB+KT/TB+DK, WITH E2-1-1-OP2 CIRCUIT, HYDR., ADD., TB+KT, BUCHER HDS30/2, WITH E2-1-1-OP1 CIRCUIT, HYDR., ADD., TB+KT, BUCHER HDS30/2, WITH E2-1-1-OP2 CIRCIUT, HYDRAULIC STEERING CIRCUIT, HYDRAULIC BRAKE, WITH SINGLE BRAKE PEDAL CIRCUIT, HYDRAULIC BRAKE, WITH DOUBLE BRAKE PEDAL CIRCUIT, RAM, LIFT, LOADER CIRCUIT, RAM, LIFT, LOADER CIRCUIT, RAM, SHOVEL, LOADER HYDRAULIC, CLAMSHOVEL INSTALLATION, LOADER HYDRAULIC, SHOVEL INSTALLATION, LOADER HYDRAULIC, SOFT DRIVE SYSTEM, LOADER HOSE HOLDER SET, HYDRAULIC, NB, BACKHOE HOSE HOLDER SET, HYDRAULIC, NB+KT, BACKHOE HOSE HOLDER SET, HYDRAULIC, TB, BACKHOE HOSE HOLDER SET, HYDRAULIC, TB+KT, BACKHOE HYDRAULIC, RAM, STABILISER (DIS10968, FWD STABILISER F., WITH VALVE) HYDRAULIC, RAM, STABILISER (DIS10968, FWD STABILISER F.,) HYDRAULIC, HYDROCLAMP HYDRAULIC, RAM, SLEW/SWING, (DIS 10968) HYDRAULIC, RAM, MAIN BOOM, (DIS10968), BACKHOE HYDR., RAM, MAIN BOOM, (DIS 10968, WITH PROTECTION VALVE), BACKHOE HYDRAULIC, RAM, DIPPER, (DIS 10968), BACKHOE HYDR., RAM, DIPPER, (DIS 10968, WITH PROTECTION VALVE), BACKHOE HYDRAULIC, RAM, BUCKET, NB, (DIS10968) HYDRAULIC, RAM, BUCKET, TB, (DIS10968) HYDRAULIC, RAM, EXTENSION, TELESCOPIC HYDRAULIC, RAM, EXTENSION, TELESCOPIC, BUCHER HDS30/2 HYDRAULIC, BREAKER INSTALLATION, NK, WITH ATTACHMENT CONTROL VALVE HYDRAULIC, BREAKER INSTALLATION, NK, WITH ELECTRIC BREAKER CONTR. VALVE HYDRAULIC, BREAKER INSTALLATION, TELESCOPIC BOOM, SALAMI VALVE HYDRAULIC, BREAKER INSTALLATION, TELESCOPIC BOOM, BUCHER-HDS30/2 VALVE LOADER CONTROL VALVE BLOCK AND ADAPTERS- WIHT LEVER CONTROL LOADER CONTROL VALVE BLOCK AND ADAPTERS- WITH JOYSTICK CONTROL FLOW CONTROL VALVES, LOADER CONTROL BLOCK BOOT ASSEMBLY AND SEAL KIT, LOADER CONTROL BLOCK BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, DIS10968 FLOW CONTROL VALVES, BACKHOE CONTROL BLOCK BOOT ASSEMBLY AND SEAL KIT, BACKHOE CONTROL BLOCK ATTACHMENT CONTROL VALVE AND ADAPTERS, COMMERCIAL ATTACHMENT CONTROL VALVE AND ADAPTERS, SALAMI ATTACHMENT CONTROL VALVE AND ADAPTERS, BUCHER - HDS30/1 ATTACHMENT CONTROL VALVE AND ADAPTERS, BUCHER - HDS30/2 PRIORITY VALVE AND ADAPTERS PUMP, HYDRAULIC, HEMA, ( 37/29 cc/rev) PUMP, HYDRAULIC, HEMA, ( 46/23 cc/rev) TUBE, COLLECTOR STEERING CONTROL ACCUMULATOR VALVE, BRAKE PEDAL, WITH SINGLE BRAKE PEDAL VALVE, BRAKE PEDAL, WITH DOUBLE BRAKE PEDAL PUMP, BRAKE ELECTRIC BREAKER CONTROL VALVE & ADAPTERS OVER CENTRE VALVE, STABILISER RAM ACCUMULATOR-VALVE, SOFT DRIVE SYSTEM ADAPTER ASSY., CLAMSHOVEL PROTECTION VALVE, MAIN BOOM RAM PROTECTION VALVE, DIPPER RAM RAM, LIFT, RIGHT, LOADER RAM, LIFT, LEFT, LOADER RAM, SHOVEL, RIGHT, LOADER RAM, SHOVEL, LEFT, LOADER RAM, CLAMSHOVEL, RIGHT - LEFT, LOADER RAM, STABILISER, RIGHT RAM, STABILISER, RIGHT RAM, SLEW SWING (RIGHT - LEFT) RAM, SLEW SWING (RIGHT - LEFT) RAM, MAIN BOOM, BACKHOE RAM, MAIN BOOM, BACKHOE, WITH PROTECTION VALVE RAM, DIPPER, BACKHOE RAM, DIPPER, BACKHOE, WITH PROTECTION VALVE RAM, BUCKET, BACKHOE RAM, BUCKET, BACKHOE, COMMON CENTERED RAM AND TIPPING LINK RAM, EXTENSION, TELESCOPIC DIPPER, BACKHOE RAM, BUCKET, TELESCOPIC DIPPER, BACKHOE RAM, BUCKET,TELESCOPIC DIPPER,BACKHOE,COMMON CENTERED RAM&TIPPING LINK AXLE ASSEMBLY, FRONT (SD 55) AXLE ASSEMBLY, FRONT, SD 55 KNUCKLE, FRONT AXLE, SD55 HUB & COMPONENTS, FRONT AXLE, SD55 DIFFERENTIAL, FRONT AXLE, SD55 RAM, STEERING, FRONT AXLE SD 55 POWER TRACKROD, FRONT AXLE, SD 55 AXLE, DRIVE ASSEMBLY, REAR AXLE, PD 70 DIFFERENTIAL, ASSEMBLY, REAR AXLE, PD 70 CROWN WHEEL & PINION, REAR AXLE, PD 70 BRAKES, REAR AXLE, PD 70 BRAKE, PARKING, REAR AXLE, PD 70 TRANSMISSION ASSY, PS760, 102B TRANSMISSION, EXTERNAL COMPONENTS, PS760 CLUTCH, TRANSMISSION, PS760 CLUTCH - INPUT, TRANSMISSION, PS760 CLUTCH - REVERSE, TRANSMISSION, PS760 CLUTCH - MAINSHAFT &, COMPONENTS, TRANSMISSION, PS760 CLUTCH - LAYSHAFT &, COMPONENTS, TRANSMISSION, PS760 SOLENOID SWITCHES, + PIPEWORK, TRANSMISSION, PS760 PUMP, TRANSMISSION, PS760 TORK KONVERTOR, PS760 WHEEL & TYRE ASSEMBLY, FRONT, REAR PROPSHAFT, TRANSMISSION TO FRONT AXLE PROPSHAFT, TRANSMISSION TO REAR AXLE ENGINE, GREEN 2, 1104C-44T, RG38101 CYLINDER BLOCK &LINERS, ENGINE 1104C-44T, RG38101 CRANKSHAFT MAIN & BIG END BEARINGS , ENGINE 1104C-44T, RG38101 PISTONS & RINGS, ENGINE 1104C-44T, RG38101 CONNECTING RODS, ENGINE 1104C-44T, RG38101 REAR END OIL SEAL, ENGINE 1104C-44T, RG38101 CYLINDER HEAD ASSY, ENGINE 1104C-44T, RG38101 ROCKER ASSEMBLY, ENGINE 1104C-44T, RG38101 TIMING GEAR & CAM SHAFT, ENGINE 1104C-44T, RG38101 FUEL INJECTION PUMP, ENGINE 1104C-44T, RG38101 HIGH PRESSURE FUEL PIPES, ENGINE 1104C-44T, RG38101 ATOMISERS, ENGINE 1104C-44T, RG38101 PICK-UP SENSOR, ENGINE 1104C-44T, RG38101 BOOST CONTROL PIPE, ENGINE 1104C-44T, RG38101 FUEL LEAK-OFF PIPE, ENGINE 1104C-44T, RG38101 PICK-UP SENSOR, ENGINE 1104C-44T, RG38101 FLYWHEEL & STARTER RING, ENGINE 1104C-44T, RG38101 STARTER MOTOR, ENGINE 1104C-44T, RG38101 FAN DRIVE, ENGINE 1104C-44T, RG38101 PULLEYS, ENGINE 1104C-44T, RG38101 SUMP, ENGINE 1104C-44T, RG38101 OIL STRAINER, ENGINE 1104C-44T, RG38101 CYLINDER HEAD COVER, ENGINE 1104C-44T, RG38101 CYLINDER HEAD COVER, ENGINE 1104C-44T, RG38101 FILLER, ENGINE 1104C-44T, RG38101 BREATHER, ENGINE 1104C-44T, RG38101 OIL COOLER, ENGINE 1104C-44T, RG38101 OIL FILTER, ENGINE 1104C-44T, RG38101 BLANKING PLATES, ENGINE 1104C-44T, RG38101 REMOTE LUBRICATING OIL FILTER, ENGINE 1104C-44T, RG38101 FRONT END DRIVE INPUT, ENGINE 1104C-44T, RG38101 WATER PUMP, ENGINE 1104C-44T, RG38101 WATER PUMP, ENGINE 1104C-44T, RG38101 PIPES, ENGINE 1104C-44T, RG38101 WATER OUTLET HOUSING, ENGINE 1104C-44T, RG38101 FAN, ENGINE 1104C-44T, RG38101 ALTERNATOR, ENGINE 1104C-44T, RG38101 ALTERNATOR BRACKET & FIXINGS, ENGINE 1104C-44T, RG38101 PULLEYS, ENGINE 1104C-44T, RG38101 AUXILIARY DRIVE, ENGINE 1104C-44T, RG38101 TIMING CASE, ENGINE 1104C-44T, RG38101 TIMING CASE, ENGINE 1104C-44T, RG38101 TIMING COVER, ENGINE 1104C-44T, RG38101 DRIVE ADAPTOR, ENGINE 1104C-44T, RG38101 BLANKING PLUGS, ENGINE 1104C-44T, RG38101 LUBRICATIG OIL PUMP & DELIVERY HOUSING, ENGINE 1104C-44T, RG38101 TURBOCHARGER, ENGINE 1104C-44T, RG38101 FEED PIPES, ENGINE 1104C-44T, RG38101 LEAK-OFF PIPES, ENGINE 1104C-44T, RG38101 PIPEWORK & CONNECTIONS, ENGINE 1104C-44T, RG38101 EXHAUST MANIFOLD, ENGINE 1104C-44T, RG38101 PIPEWORK & CONNECTIONS, ENGINE 1104C-44T, RG38101 PIPEWORK & CONNECTION, ENGINE 1104C-44T, RG38101 LIFT PUMP, ENGINE 1104C-44T, RG38101 FILTER TO INJECTION PUMP PIPE, ENGINE 1104C-44T, RG38101 INJECTION PUMP TO FILTER PIPE, ENGINE 1104C-44T, RG38101 HEATER PLUGS, ENGINE 1104C-44T, RG38101 ENGINE LIFTING EYES, ENGINE 1104C-44T, RG38101 LUBRICATION OIL PRESSURE SWITCH/GAUGE, ENGINE 1104C-44T, RG38101 LUBRICATION OIL PRESSURE SWITCH/GAUGE, ENGINE 1104C-44T, RG38101 TEMPERATURE GAUGE & SENDER, ENGINE 1104C-44T, RG38101 MISCALLANEOUS & AUXILIARIES, ENGINE 1104C-44T, RG38101 MISCELLANEOUS & AUXILIARIES, ENGINE 1104C-44T, RG38101 TOP SERVICE KIT, ENGINE 1104C-44T, RG38101 BOTTOM SERVICE KIT, ENGINE 1104C-44T, RG38101 ENGINE ASSEMBLY, GREEN 2 ENGINE & TRANSMISSION ASSEMBLY AIR FILTER AND MOUNTINGS AIR FILTER AND PRE-CLEANER, WITH OIL FUEL SUCTION AND RETURN LINE EXHAUST ASSEMBLY - GREEN 2 ENGINE COMPRESSOR ASSEMBLY, WITH AIR CONDITIONER, GREEN ENGINE RADIATOR - OIL COOLER AND FITTINGS COOLING SYSTEM, ENGINE WATER COOLING SYSTEM, HYDRAULIC AND TRANSMISSION OIL COOLING SYSTEM, HYDRAULIC AND TRANSMISSION OIL HEATER, HEATING SYSTEM AIR CONDITIONER, COOLING SYSTEM AIR CONDITIONER, CAB, COOLING SYSTEM AIR CONDITIONER, CAB, COOLING SYSTEM DECAL AND PLATES, OPERATING & MAINTENANCE DECALS, WARNING DECAL AND PLATES, MACHINE MODEL & INFORMATION

1

1A

1B

1С

2

2A

2B

2С

3

3

4

4

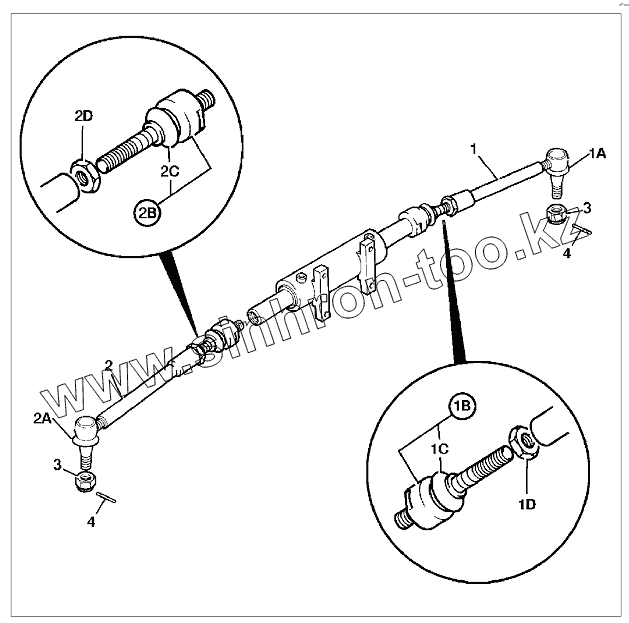

Позиция на иллюстрации	Заводской номер детали		Название детали
1	F06/10620		LINK, TRACKROD
1A	F06/19920		GAITER
1B	F06/12007		JOINT, BALL, TRACK ROD
1С	F06/19910		GAITER
2	F06/10620		LINK, TRACKROD
2A	F06/19920		GAITER
2B	F06/12007		JOINT, BALL, TRACK ROD
2С	F06/19910		GAITER
3	F06/17964		NUT, CASTLE, M20X1.5
4	F06/19930		PIN, SPLIT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
