Каталог запасных частей к технике: Hidromek HMK 102B. DECAL AND PLATES, MACHINE MODEL & INFORMATION

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

9

10

10

11

12

13

14

15

16

17

18

19

20

21

22

22

23

23

24

24

25

26

27

28

29

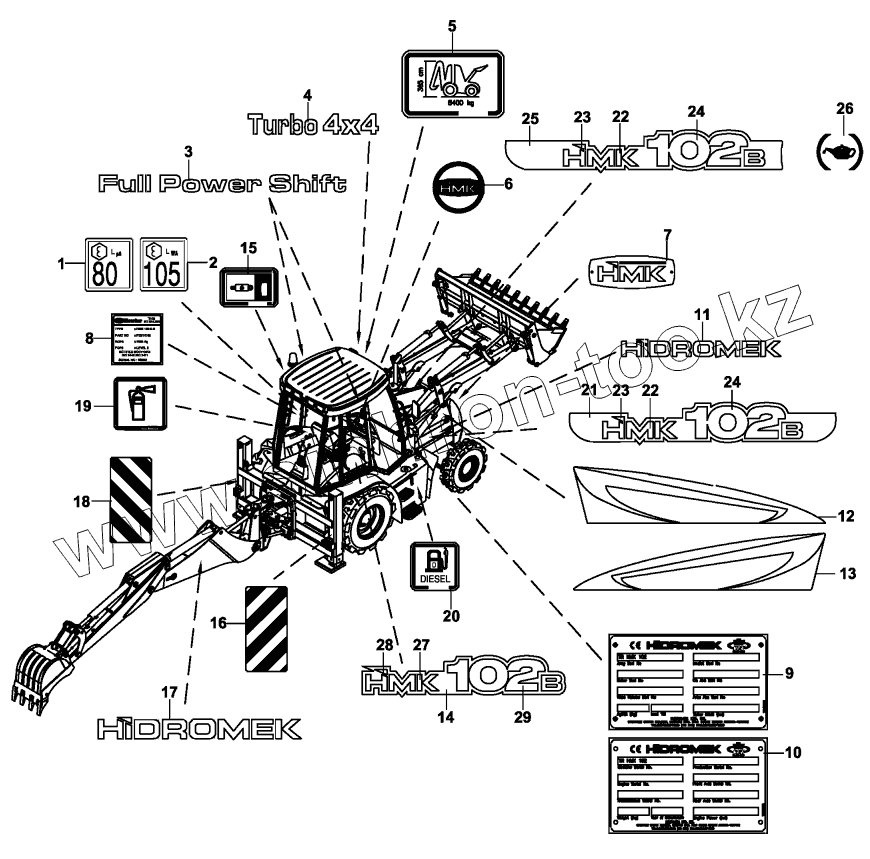

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Y06/11540		DECAL, NOISE, CAB INTERIOR
2	Y06/11550		DECAL, NOISE, CAB EXTERIOR
3	Y06/10661		DECAL, FULL POWER SHIFT
4	Y06/10571		DECAL, TURBO 4x4
5	Y06/11411		DECAL, DIMENSION
6	Y06/10245		DECAL, STEERING WHEEL
7	Y06/20261		PLATE, HMK
8	Y06/50142		DECAL, ROPS- FOPS, HISARLAR
9	Y06/21007		IDENTIFICATION PLATE
9	Y06/21012		IDENTIFICATION PLATE
10	Y06/50015		IDENTIFICATION PLATE, CE, ANK
10	Y06/50013		IDENTIFICATION PLATE, CE, ESB
11	Y06/10221		DECAL, ''HiDROMEK''
12	Y06/11812		STICKER, RIGHT, 102B
13	Y06/11862		STICKER, LEFT, 102B
14	Y06/11670		DECAL, dm102Bdm
15	Y06/11440		DECAL, HYDRAULIC OIL TANK
16	Y06/90052		REFLECTOR, RIGHT
17	Y06/11316		DECAL, ''HiDROMEK''
18	Y06/90051		REFLECTOR, LEFT
19	Y06/11355		DECAL, FIRE EXTINGUISHER
20	Y06/11430		DECAL, FUEL TANK
21	Y06/11656		DECAL, RIGHT, BLANK
22	Y06/11722		DECAL, ''HMK''
23	Y06/11730		STICKER
24	Y06/11664		DECAL, dm102Bdm
25	Y06/11655		REFLECTOR, LEFT
26	Y06/11335		DECAL, LUBRICATION
27	Y06/11723		DECAL, ''HMK''
28	Y06/11731		STICKER
29	Y06/11680		DECAL, dm102Sdm

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
