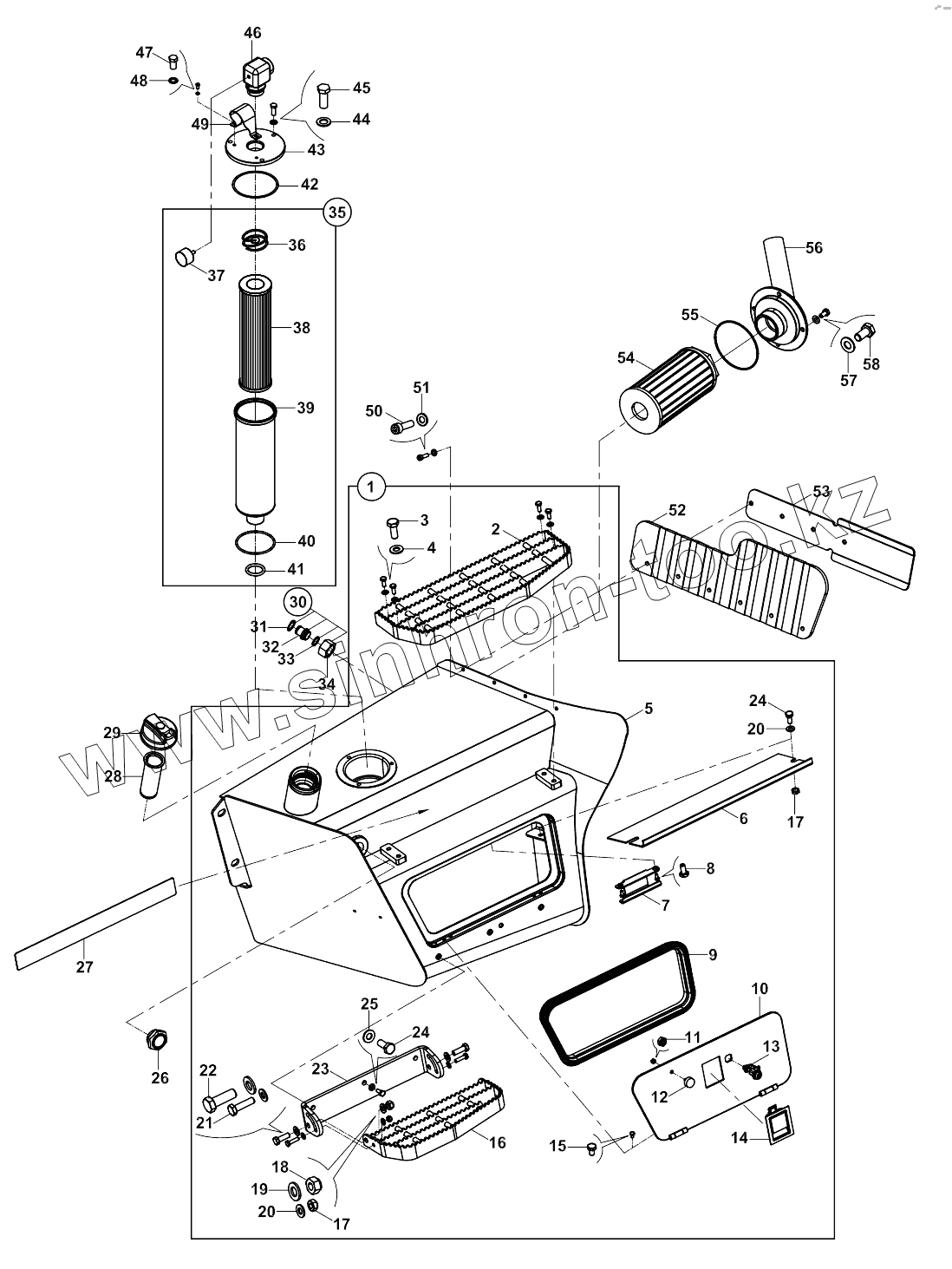

Каталог запасных частей к технике: Hidromek 102S MAESTRO. TANK, HYDRAULIC A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
49
50
51
52
53
54
55
56
57
58
Позиция на иллюстрации Заводской номер детали Название детали
1 018/25537 Tank hydraulic assy
2 019/10101 Step, upper
3 N03/08100014 Washer
4 N01/0232114 Bolt, Hex.
5 019/22543 Tank hydraulic
6 020/10256 Plate
7 019/91012 Lock hinge
8 N01/0231454 Bolt
9 816/00621 Strip, rubber
10 019/91011 Cover
10 018/29032 Cover
11 N02/5910050 Nut
12 810/40057 Cover
13 F99/60017 Locking
14 F99/50150 Lock, cover
15 N01/0231454 Bolt
16 019/10102 Step, lower
17 N02/5910062 Nut
18 N02/5910122 Nut
19 N03/0810001 Washer
20 N03/0810014 Washer
21 N01/0232162 Bolt, Hex.
22 N01/0232858 Bolt, Hex.
23 020/00063 Foot step bracket
24 N01/0232114 Bolt, Hex.
25 N03/0810014 Washer
26 F99/14030 Indicator, oil lever
27 F99/06910 SAFETY WALK TAPE
28 F28/35500 Filter
29 F99/15022 Cap, hyd Filler
30 018/90230 Plug
31 N05/0020035 RETAINING RING
32 814/05230 Plug
33 N10/2001923 O-ring
34 N17/3570276 Nut
35 F28/50900 FILTER, RETURN, ASSY.
36 F28/51003 SPRING
37 F28/50011 VACUUMMETER
38 F28/51001 FILTER, RETURN
39 F28/51002 BODY, FILTER
40 F28/51004 O-RING
41 N03/0226331 WASHER
42 N10/2009936 O-RING
43 817/04155 COVER, FILTER
43 817/04156 Cover, filter
44 N03/0810015 Washer
45 N01/0232462 Bolt, Hex.
46 N16/3490276 ELBOW, ADJUSTABLE
47 N01/0231442 Bolt
48 N03/0020004 Washer, Pln.
49 020/11509 PROTECTION PLATE
49 020/12863 Protection plate
50 N01/5890494 Bolt
51 N03/0810014 Washer
52 F32/20149 Mud shield
53 019/10105 Bracket
54 F28/34000 FILTER, SUCTION
55 N10/2013335 O-RING
56 019/91091 Mounting, suc Filter
57 N03/0810015 Washer
58 N01/0232438 Bolt, Hex.
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
