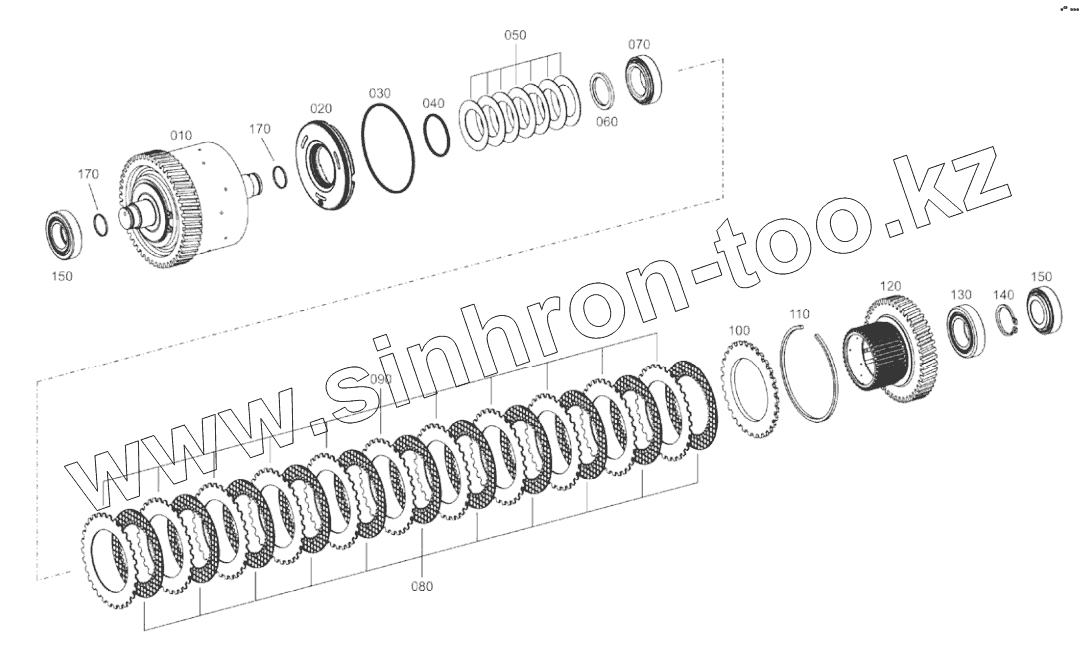

Каталог запасных частей к технике: Hidromek 102S MAESTRO. REVERSING GEAR A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
20
30
40
50
60
70
70
80
90
100
110
110
110
110
110
110
110
110
110
110
120
130
130
140
140
140
140
140
140
140
140
140
140
140
140
140
150
150
170
170
Позиция на иллюстрации Заводской номер детали Название детали
10 S06/43386 Coupling
20 S06/43282 Piston
30 S06/43304 O-ring
40 S06/43305 O-ring
50 S06/43382 Cup spring
60 S06/43383 Support disc
70 TA.ROLLERBEARING Ta Roller bearing
70 S06/43384 Ta roller bearing
80 S06/43286 Inner clutch disc
90 S06/43287 Outer clutch disc
100 S06/43288 End shim
110 S06/43528 Snap ring
110 S06/43527 Snap ring
110 S06/43526 Snap ring
110 S06/43525 Snap ring
110 S06/43524 Snap ring
110 S06/43522 Snap ring
110 S06/43521 Snap ring
110 S06/43520 Snap ring
110 SNAPRING Snap ring
110 S06/43523 Snap ring
120 S06/43385 Disc carrier
130 TA.ROLLERBEARING Ta Roller bearing
130 S06/43366 Ta roller bearing
140 S06/43370 Circlip
140 S06/43378 Circlip
140 S06/43377 Circlip
140 S06/43376 Circlip
140 S06/43375 Circlip
140 S06/43374 Circlip
140 S06/43373 Circlip
140 S06/43372 Circlip
140 S06/43371 Circlip
140 S06/43369 Circlip
140 S06/43368 Circlip
140 S06/43367 Circlip
140 CIRCLIP CIRCLIP
150 S06/43387 Roller bearing
160 S06/43279 Roller bearing
170 S06/43280 R-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
