Каталог запасных частей к технике: Hidromek 102S MAESTRO. QUICK COUPLER, BACKHOE A80001 -

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано SHOVEL, CLAM, 4 IN 1 MULTIPURPOSE A80001 - SHOVEL, CLAM, 4 IN 1 MULTIPURPOSE A80852 - SHOVEL, CLAM, MULTIPURPOSE, FOR QUICK COUPLER A80001 - SHOVEL A80001 - SHOVEL A80001 - SHOVEL, FORKLIFT MOUNTED A80001 - SHOVEL, FORKLIFT MOUNTED A80001 - SHOVEL, CLAM, FORKLIFT MOUNTED A80001 - SHOVEL, CLAM, FORKLIFT MOUNTED A80852 - QUICK COUPLER, LOADER A80001 - LEVELLING, BLADE A80001 - LEVELLING, BLADE, QUICK COUPLER A80001 - LEVELLING BLADE, WITH TWO AXIS TURN A80001 - LOG FORK, 2+1 CLAMP A80001 - LOG FORK, WITH VERTICAL MOVEMENT A80001 - BUCKET, BACKHOE A80001 - BREAKER, DEMO DMB70 A80001 - BREAKER, DEMO DMB50 A80001 - BREAKER, ALICON B50 A80001 - BREAKER, ALICON B70 A80001 - BREAKER, MONTABERT- SC 36 A80001 - BREAKER, MONTABERT- SC 28 A80001 - BREAKER, DEMO DMB70 A80001 - BREAKER, DEMO DMB50 A80001 - BREAKER, ALICON B50 A80001 - BREAKER, ALICON B70 A80001 - BREAKER, MONTABERT- SC 36 A80001 - BREAKER, MONTABERT- SC 28 A80001 - AUGER A80001 - AUGER A80001 - AUGER A80001 - RIPPER A80001 - TILTING BUCKET A80001 - QUICK COUPLER, BACKHOE A80001 - CHASSIS A80001 - BONNET- ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN. A80001 - PANEL, ENGINE, RIGHT SIDE A80001 - PANEL, ENGINE, RIGHT LEFT A80001 - BONNET A80001 - TANK, HYDRAULIC A80001 - FUEL SYSTEM A80001 - AXLE - PROPSHAFT-CHASSIS MOUNTINGS A80001 - WHEEL & FENDERS A80001 - OPERATOR CAB, LEVERS MECHANISM A80001 - OPERATOR CAB, JOYSTICK MECHANISM A80001 - DOOR AND WINDOW SIDE, RIGHT A80001 - A80695 DOOR AND WINDOW SIDE, RIGHT A80696 - DOOR AND WINDOW SIDE, LEFT A80001 - A80695 DOOR AND WINDOW SIDE, LEFT A80696 - WINDOWS, FRONT - REAR A80001 - WIPER SYSTEM A80001 - CAB INTERIOR TRIMMING AND ROOF A80001 - COVER, FRONT, CONTROL A80001 - CONTROL LEVERS A80001 - COVER, SIDE, RIGHT A80001 - INSTRUMENT PANEL, SIDE, RIGHT A80001 - COVER, SIDE, LEFT A80001 - ACCESORIES, OPERATOR CAB, JOYSTICK MECHANISM A80001 - ACCESSORIES, OPERATOR CAB A80001 - OPERATOR SEAT, (1153486), MSG85-00 A80001 - OPERATOR SEAT, (1153486), MSG85-00 A80001 - OPERATOR SEAT, AIRPOT, (1161684), MSG95A-06 A80001 - OPERATOR SEAT, AIRPOT, (1161684), MSG95A-06 A80001 - CD- PLAYER SYSTEM A80001 - LIGHTS A80001 - REAR LIGHTING UNIT, BACKHOE LOADER A80001 - LOADER ATTACHMENT MOUNTING A80001 - A80458 LOADER ATTACHMENT MOUNTING A80459 - LOADER MOUNTING-1, LOADER ARM WITH BOX SECTION A80001 - A80295 LOADER MOUNTING-1, LOADER ARM WITH BOX SECTION A80296 - SHOVEL LEVELLING MECHANISM A80001 - MOUNTINGS, BACKHOE COMPONENTS A80001 - A80427 MOUNTINGS, BACKHOE COMPONENTS A80428 - STABILISER, SIDESHIFT A80001 - STABILISER, SIDESHIFT A80262 - KINGPOST- CARRIAGE- SLEW / SWING RAM MOUNTINGS A80001 - KINGPOST CARRIAGE A80001 - SWING CARRIAGE, CASTING A80001 - MAIN BOOM A80001 - DIPPER-TIPPING LINK/LEVER-RAM MOUNT., COMMON CENTERED RAM&TIPPING LINK A80001 - A80427 DIPPER-TIPPING LINK/LEVER-RAM MOUNT., COMMON CENTERED RAM&TIPPING LINK A80428 - DIPPER A80001 - TELESCOPIC DIPPER A80001 - A80427 TELESCOPIC DIPPER A80428 - FOOT A80001 - FUSE BOX & RELAYS AND LAYOUT A80001 - HARNESS, CAB, COMPLETE FUNCTION A80001 - HARNESS, ENGINE, SINGLE/ DOUBLE BRAKE PEDAL, IMMOBILIZER, JOYSTICK A80001 - HARNESS, REAR LIGHTING UNIT & STABILISER SWITCH A80001 - STABILISER SWITCH ASSEMBLY A80001 - CABLE, PARKING BRAKE TEST A80001 - ACCUMULATOR AND ELECTRIC CONNECTIONS A80001 - LEVELLING BLADE,(WITH TWO AXIS TURN) HARNESS A80001 - HARNESS, AUGER/TILTING BUCKET A80001 - COMPRESSOR ELECTRIC CONNECTIONS A80001 - IMMOBILIZER A80001 - STEERING HARNESS WIRE A80001 - BUTTON HARNESS, CONTROL LEVERS A80001 - CABLE, BACKHOE CONTROL LEVER A80001 - CONTROL MECHANISM, LOADER- WITH JOYSTICK CONTROL, WITH RETURN TO DIG A80001 - A81018 CONTROL MECHANISM, LOADER- WITH JOYSTICK CONTROL, WITH RETURN TO DIG A81019 - CONTROL SYSTEM, BACKHOE A80001 - CONTROL SYSTEM, BACKHOE A80001 - PEDAL MOUNTING, NB+KT, TB, TB+KT A80001 - BOOM LOCKING AND MECHANISM A80001 - HAND THROTTLE AND ACCELERATOR PEDAL A80001 - A81018 HAND THROTTLE AND ACCELERATOR PEDAL A81083 - PARKING BRAKE A80001 - STEERING COLUMN, DAMPER A80001 - CIRCUIT MOUNTING, TB A80001 - CIRCUIT MOUNTING, NB A80001 - PUMP MOUNTING, GEAR PUMP A80001 - PUMP MOUNTING, PISTON PUMP A80016 - STEERING, CIRCUIT MOUNTING A80001 - A81134 STEERING, CIRCUIT MOUNTING A81135 - BRAKE, CIRCUIT MOUNTING A80001 - A80085 BRAKE, CIRCUIT MOUNTING A80086 - CIRCUIT MOUNTING, RAM, LIFT, LOADER A80001 - CIRCUIT MOUNTING, RAM, SHOVEL, LOADER A80001 - CIRCUIT MOUNTING, CLAMSHOVEL INSTALLATION, LOADER A80001 - CIRCUIT MOUNTING, SHOVEL INSTALLATION, LOADER A80001 - CIRCUIT MOUNTING, SOFT DRIVE SYSTEM, LOADER A80001 - HOSE HOLDER SET, HYDRAULIC, NB+KT, BACKHOE A80654 - HOSE HOLDER SET, HYDRAULIC, TB+KT, BACKHOE A80654 - CIRCUIT MOUNTING, RAM, STABILISER A80001 - CIRCUIT MOUNTING, RAM, STABILISER, LOCKING VALVE A80001 - CIRCUIT MOUNTING, HYDROCLAMP A80001 - CIRCUIT MOUNTING, RAM, SLEW/SWING (A80001 -) CIRCUIT MOUNTING, RAM, MAIN BOOM, BACKHOE A80001 - CIRCUIT MOUNTING, RAM, MAIN BOOM, ( WITH PROTECTION VALVE), BACKHOE A80001 - CIRCUIT MOUNTING, RAM, DIPPER, BACKHOE A80001 - CIRCUIT MOUNTING, RAM, DIPPER, ( WITH PROTECTION VALVE), BACKHOE A80001 - CIRCUIT MOUNTING, RAM, BUCKET, NB A80001 - CIRCUIT MOUNTING, RAM, BUCKET, TB A80001 - A80653 CIRCUIT MOUNTING, RAM, BUCKET, TB A80654 - CIRCUIT, HYDRAULIC, JOYSTICK, NB A80001 - A81018 CIRCUIT, HYDRAULIC, JOYSTICK, NB A81019 - CIRCUIT, HYDRAULIC, JOYSTICK, TB A80001 - A81018 CIRCUIT, HYDRAULIC, JOYSTICK, TB A81019 - CIRCUIT MOUNTING, BREAKER INSTALLATION, NK A80001 - CIRCUIT MOUNTING, BREAKER INSTALLATION, TELESCOPIC BOOM A80001 - A80255 HYDRAULIC, AUGER/TILTING BUCKET, NK A80001 - HYDRAULIC, AUGER/TILTING BUCKET, TELESCOPIC BOOM A80001 - HYDRAULIC, HAND BREAKER A80001 - CIRCUIT MOUNTING, DIFFERENTIAL LOCKING A80001 - LOADER CONTROL VALVE BLOCK AND ADAPTERS-JY- SHOVEL A80001 - LOADER CONTROL VALVE BLOCK AND ADAPTERS- JY-CLAMSHELL BUCKET A80001 - A81018 LOADER CONTROL VALVE BLOCK AND ADAPTERS- JY-CLAMSHELL BUCKET A81019 - LOADER CONTROL VALVE BLOCK AND ADAPTERS-LEVERS- SHOVEL A80001 - LOADER CONTROL VALVE BLOCK AND ADAPTERS- LEVERS-CLAMSHELL BUCKET A80001 - LOADER CONTROL VALVE BLOCK- WITH RETURN TO DIG A80001 - BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, LEVERS, TB A80001 - BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, JY+TB A80001 - BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, LEVERS, NB A80001 - BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, JY+NB A80001 - BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, LEVERS, NB (X-DIAGONAL) A80001 - BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, LEVERS, TB (X-DIAGONAL) A80001 - ATTACHMENT CONTROL VALVE, BUCHER- HDS30/1 A80001 - GEAR PUMP, HEMA, (37/29 cc/rev) A80001 - A80053 GEAR PUMP, HEMA A80054 - REMOTE CONTROL VALVE, RIGHT, BACKHOE A80001 - REMOTE CONTROL VALVE, LEFT, BACKHOE A80001 - RAM, LIFT, RIGHT, LOADER A80001 - RAM, LIFT, LEFT, LOADER A80001 - RAM, SHOVEL, RIGHT, LOADER A80001 - RAM, SHOVEL, LEFT, LOADER A80001 - RAM, CLAMSHOVEL, RIGHT - LEFT, LOADER A80001 - RAM,STABILISER, RIGHT A80001 - A80261 RAM,STABILISER, RIGHT A80262 - RAM,STABILISER, RIGHT A80001 - A80261 RAM,STABILISER, RIGHT A80262 - RAM, SLEW SWING (RIGHT - LEFT) A80001 - RAM, MAIN BOOM, BACKHOE RAM, DIPPER, BACKHOE A80001 - A80075 RAM, DIPPER, BACKHOE A80076 - RAM, BUCKET, BACKHOE, COMMON CENTERED RAM AND TIPPING LINK A80001 - RAM, EXTENSION, TELESCOPIC DIPPER, BACKHOE A80001 - RAM, BUCKET,TELESCOPIC DIPPER,BACKHOE,COMMON CENTERED RAM & TIPPING LINK A80001 - RAM, QUICK COUPLER A80001 - RAM, LEVELLING BLADE A80001 - RAM, LEVELLING BLADE RIGHT WITH 2 AXIS TURN A80001 - RAM, LEVELLING BLADE, WITH 2 AXIS TURN A80001 - RAM, LEVELLING BLADE, WITH 2 AXIS TURN A80001 - RAM, LOG FORK A80001 - LOG FORK, WITH VERTICAL MOVEMENT A80001 - RAM, TILTING BUCKET A80001 - FRONT AXLE A80001 - FRONT AXLE HOUSING A80001 - SWIVEL HOUSING AND STEERING CYLINDER, FRONT AXLE A80001 - BEVEL GEAR SET, FRONT AXLE A80001 - DIFFERRENTIAL, FRONT AXLE A80001 - DOUBLE JOINT, FRONT AXLE A80001 - WHEEL HUB, FRONT AXLE A80001 - FINAL REDUCTION, REAR AXLE A80001 - REAR AXLE A80001 - AXLE HOUSING, REAR AXLE A80001 - SWIVEL HOUSING AND STEERING CYLINDER, REAR AXLE A80001 - A80449 SWIVEL HOUSING AND STEERING CYLINDER, REAR AXLE A80450 - BEVEL GEAR SET, REAR AXLE A80001 - DIFFERENTIAL, REAR AXLE A80001 - DIFFERRENTIAL LOCKING, REAR AXLE A80001 - DOUBLE JOINT, REAR AXLE A80001 - HALF-SHAFT AND BRAKES, REAR AXLE A80001 - WHEEL HUB, REAR AXLE A80001 - FINAL REDUCTION, REAR AXLE A80001 - BRAKE CALIPER, REAR AXLE A80001 - TRANSMISSION A80001 - ENGINE CONNECT. A80001 - CONVERTER A80001 - DRIVE A80001 - TRANSM. HOUSING A80001 - TRANSM. HOUSING A80001 - REVERSING GEAR A80001 - REVERSING GEAR A80001 - COUPLING A80001 - COUPLING A80001 - COUPLING (K2) A80001 - COUPLING (K3) A80001 - COUPLING (K4) A80001 - OUTPUT A80001 - CONTROL UNIT A80001 - GEARSHIFT SYST. A80001 - GEARSHIFT SYST. A80001 - PRESSURE OIL PUMP A80001 - INDUCTIVE TRANSMITTER A80001 - TEMP. SENSOR A80001 - FILTER A80001 - ENGINE, 1104D-44TA, TIER III A80001 - CYLINDER BLOCK &LINERS, ENGINE 1104D-44TA, TIER III A80001 - CRANKSHAFT MAIN & BIG END BEARINGS , ENGINE 1104D- 44TA, TIERIII A80001 - PISTONS & RINGS, ENGINE 1104D-44TA, TIER III A80001 - CONNECTING RODS, ENGINE 1104D-44TA, TIER III A80001 - REAR END OIL SEAL, ENGINE 1104D-44TA, TIER III A80001 - CYLINDER HEAD ASSY, ENGINE 1104D-44TA, TIER III A80001 - ROCKER ASSEMBLY, ENGINE 1104D- 44TA, TIER III A80001 - TIMING GEAR & CAM SHAFT, ENGINE 1104D- 44TA, TIER III A80001 - FUEL INJECTION PUMP, ENGINE 1104D- 44TA, TIER III A80001 - HIGH PRESSURE FUEL PIPES,ENGINE 1104D- 44TA, TIER III A80001 - ATOMISERS, ENGINE 1104D- 44TA, TIER III A80001 - PICK-UP SENSOR, ENGINE 1104D- 44TA, TIER III A80001 - FUEL LEAK-OFF PIPE, ENGINE 1104D-44TA, TIER III A80001 - PICK-UP SENSOR, ENGINE 1104D- 44TA, TIER III A80001 - FLYWHEEL & STARTER RING, ENGINE 1104D- 44TA, TIER III A80001 - FLYWHEEL HOUSING, ENGINE 1104D- 44TA, TIER III A80001 - STARTER MOTOR, ENGINE 1104D- 44TA, TIER III A80001 - FAN DRIVE, ENGINE 1104D- 44TA, TIER III A80001 - SUMP, ENGINE 1104D- 44TA, TIER III A80001 - DIPSTICK & FILLER TUBE, ENGINE 1104D- 44TA, TIER III OIL STRAINER, ENGINE 1104D- 44TA, TIER III A80001 - CYLINDER HEAD COVER, ENGINE 1104D- 44TA, TIER III A80001 - CYLINDER HEAD COVER, ENGINE 1104D- 44TA, TIER III A80001 - FILLER, ENGINE 1104D- 44TA, TIER III A80001 - BREATHER, ENGINE 1104D- 44TA, TIER III OIL COOLER, ENGINE 1104D- 44TA, TIER III A80001 - OIL FILTER, ENGINE 1104C-44T, TIER III A80001 - BLANKING PLATES, ENGINE 1104D-44TA, TIER III A80001 - REMOTE LUBRICATING OIL FILTER, ENGINE 1104D- 44TA, TIER III A80001 - FRONT END DRIVE INPUT, ENGINE 1104D- 44TA, TIER III A80001 - WATER PUMP, ENGINE 1104D- 44TA, TIER III A80001 - PIPES, ENGINE 1104D- 44TA, TIER III A80001 - WATER OUTLET HOUSING, ENGINE 1104D- 44TA, TIER III A80001 - ALTERNATOR 1104D- 44TA, TIER III A80001 - ALTERNATOR BRACKET & FIXINGS, ENGINE 1104D- 44TA, TIER III A80001 - PULLEYS, ENGINE 1104D- 44TA, TIER III A80001 - TIMING CASE, ENGINE 1104D- 44TA, TIER III A80001 - TIMING CASE, ENGINE 1104D- 44TA, TIER III A80001 - TIMING COVER, ENGINE 1104D- 44TA, TIER III A80001 - DRIVE ADAPTOR, ENGINE 1104D- 44TA, TIER III BLANKING PLUGS, ENGINE 1104D- 44TA, TIER III LUBRICATING OIL PUMP & DELIVERY HOUSING, ENGINE 1104D- 44TA, TIER III A80001 - TURBOCHARGER, ENGINE 1104D- 44TA, TIER III A80001 - FEED PIPES, ENGINE 1104D- 44TA, TIER III A80001 - LEAK-OFF PIPES, ENGINE 1104D- 44TA, TIER III A80001 - PIPEWORK & CONNECTIONS, ENGINE 1104D- 44TA, TIER III A80001 - EXHAUST MANIFOLD, ENGINE 1104D- 44TA, TIER III A80001 - PIPEWORK & CONNECTION, ENGINE 1104D- 44TA, TIER III A80001 - INDUCTION MANIFOLD, ENGINE 1104D- 44TA, TIER III A80001 - BLANKING PLATES, ENGINE 1104D- 44TA, TIER III A80001 - BLANKING PLATES, ENGINE 1104D- 44TA, TIER III A80001 - LIFT PUMP, ENGINE 1104D- 44TA / CA, 4TA A80001 - FILTER TO INJECTION PUMP PIPE, ENGINE 1104C-44T, RG38101 A80001 - INJECTION PUMP TO FILTER PIPE, ENGINE 1104D- 44TA / CA, 4TA A80001 - BOOST CONTROL PIPE, ENGINE 1104D- 44TA / CA, 4TA A80001 - HEATER PLUGS, ENGINE 1104C-44T, RG38101 A80001 - ENGINE LIFTING EYES, ENGINE 1104D- 44TA / CA, 4TA A80001 - LUBRICATION OIL PRESSURE SWITCH/GAUGE, ENGINE 1104D- 44TA / CA, 4TA A80001 - LUBRICATION OIL PRESSURE SWITCH/GAUGE, ENGINE 1104D- 44TA, TIER III A80001 - WATER HEATER SWITCH, MOTOR 1104D- 44TA, TIER III A80001 - AUXILIARY EQUIPMENT, MOTOR 1104D- 44TA, TIER III A80001 - MISCELLANEOUS & AUXILIARIES, ENGINE 1104D- 44TA / CA, 4TA A80001 - BLANKING PLATES, ENGINE 1104D- 44TA / CA, 4TA A80001 - CHASSIS - CAB - ENGINE MOUNTINGS A80001 - AIR FILTER AND MOUNTINGS A80001 - AIR FILTER AND MOUNTINGS A80001 - EXHAUST ASSEMBLY A80001 - RADIATOR - OIL COOLER AND FITTINGS A80001 - RADIATOR - OIL COOLER AND FITTINGS A80001 - COOLING SYSTEM, HYDRAULIC AND TRANSMISSION OIL A80001 - HEATER, HEATING SYSTEM A80001 - A80060 HEATER, HEATING SYSTEM A80061 - AIR CONDITIONER, COOLING SYSTEM A80001 - AIR CONDITIONER, COOLING SYSTEM A80814 - AIR CONDITIONER, CAB A80001 - CONTROL MECHANISM, LOADER- WITH JOYSTICK CONTROL A80001 - CONTROL SYSTEM, BACKHOE, NB A80001 - CONTROL SYSTEM, BACKHOE, TB A80001 - CIRCUIT MOUNTING, TB A80855 - PUMP MOUNTING, PISTON PUMP A80001 - STEERING, CIRCUIT MOUNTING A80001 - CIRCUIT MOUNTING, RAM, LIFT, LOADER A80001 - CIRCUIT MOUNTING, RAM, SHOVEL, LOADER A80001 - CIRCUIT MOUNTING, CLAMSHOVEL INSTALLATION, LOADER A80001 - CIRCUIT MOUNTING, SHOVEL INSTALLATION, LOADER A80001 - CIRCUIT MOUNTING, SOFT DRIVE SYSTEM, LOADER A80001 - CIRCUIT MOUNTING, HYDROCLAMP A80001 - CIRCUIT MOUNTING, RAM, BUCKET, TB A80001 - CIRCUIT, HYDRAULIC, JOYSTICK, NB A80001 - A81018 CIRCUIT, HYDRAULIC, JOYSTICK, NB A81019 - CIRCUIT, HYDRAULIC, JOYSTICK, TB A80001 - CIRCUIT, HYDRAULIC, JOYSTICK, TB A81019 - LOADER CONTROL VALVE BLOCK AND ADAPTERS- JY-SHOVEL, CLAM A80001 - LOADER CONTROL VALVE ELEMENTS A80001 - LOADER CONTROL VALVE-INLET BLOCK A80001 - LOADER CONTROL VALVE-LIFT RAM CONTROL BLOCK A80001 - LOADER CONTROL VALVE-SHOVEL RAM CONTROL BLOCK A80001 - LOADER CONTROL VALVE-CLAMSHOVEL RAM CONTROL BLOCK A80001 - LOADER CONTROL VALVE-OUTLET BLOCK A80001 - BACKHOE CONTROL VALVE BLOCK AND ADAPTERS, JY+TB A80001 - BACKHOE CONTROL VALVE ELEMENTS- WITH JOYSTICK CONTROL A80001 - BACKHOE CONTROL VALVE-Д°NLET BLOCK A80001 - BACKHOE CONTROL VALVE-ARM-BOOM-TELESCOPIC CONTROL BLOCKS, JOYSTICK A80001 - BACKHOE CONTROL VALVE-SLEW SWING RAM CONTROL BLOCK, JOYSTICK A80001 - BACKHOE CONTROL VALVE-STABILISER RAM CONTROL BLOCK, JOYSTICK A80001 - BACKHOE CONTROL VALVE-BUCKET RAM CONTROL BLOCK, JOYSTICK A80001 - BACKHOE CONTROL VALVE-OUTLET BLOCK A80001 - PISTON PUMP A80001 -

1

2

3

4

5

6

7

8

9

10

11

12

13

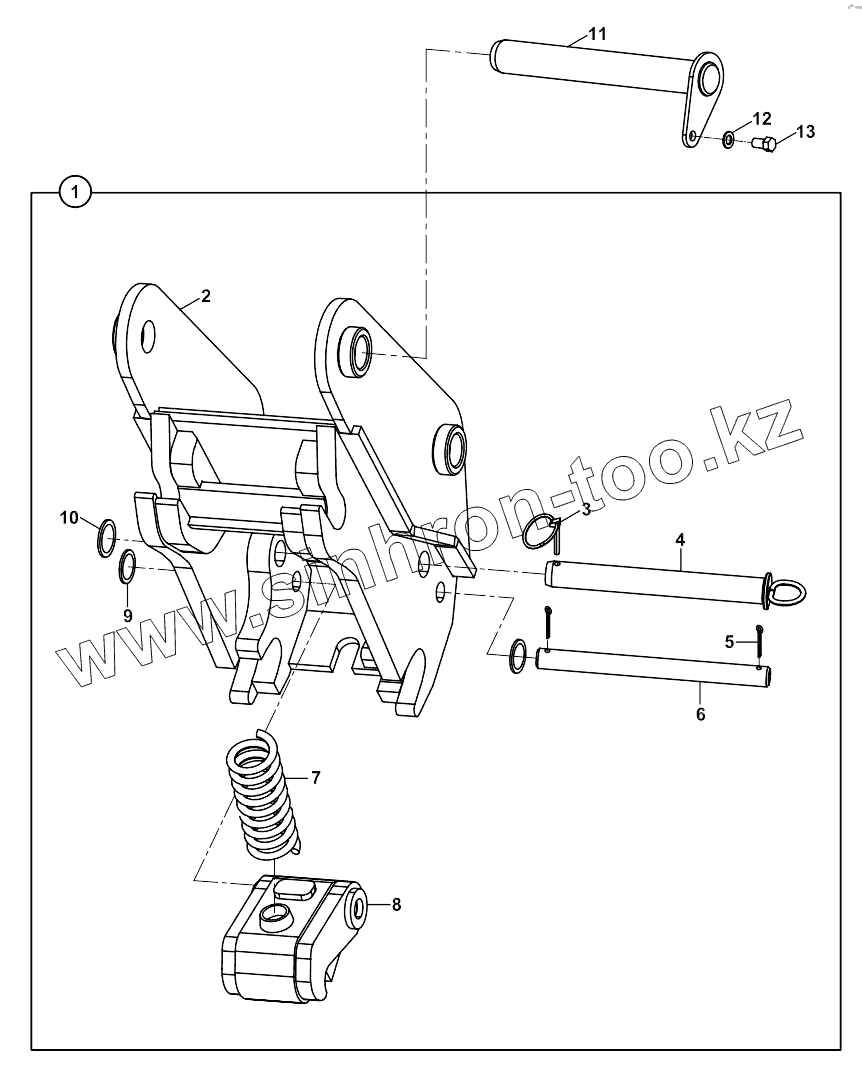

Позиция на иллюстрации	Заводской номер детали		Название детали
1	061/00101		Quick coupler, assy
2	061/20012		Quick coupler
3	N06/3006042		PIN, LINCH
4	811/02156		Pin
5	N06/1006040		Cotter pin
6	801/14048		Pin
7	807/09200		Spring
8	061/90817		Detent
9	805/00075		Washer
10	805/00076		Washer
11	811/01040		PIN
12	N03/0810001		Washer
13	N01/0232798		Bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
