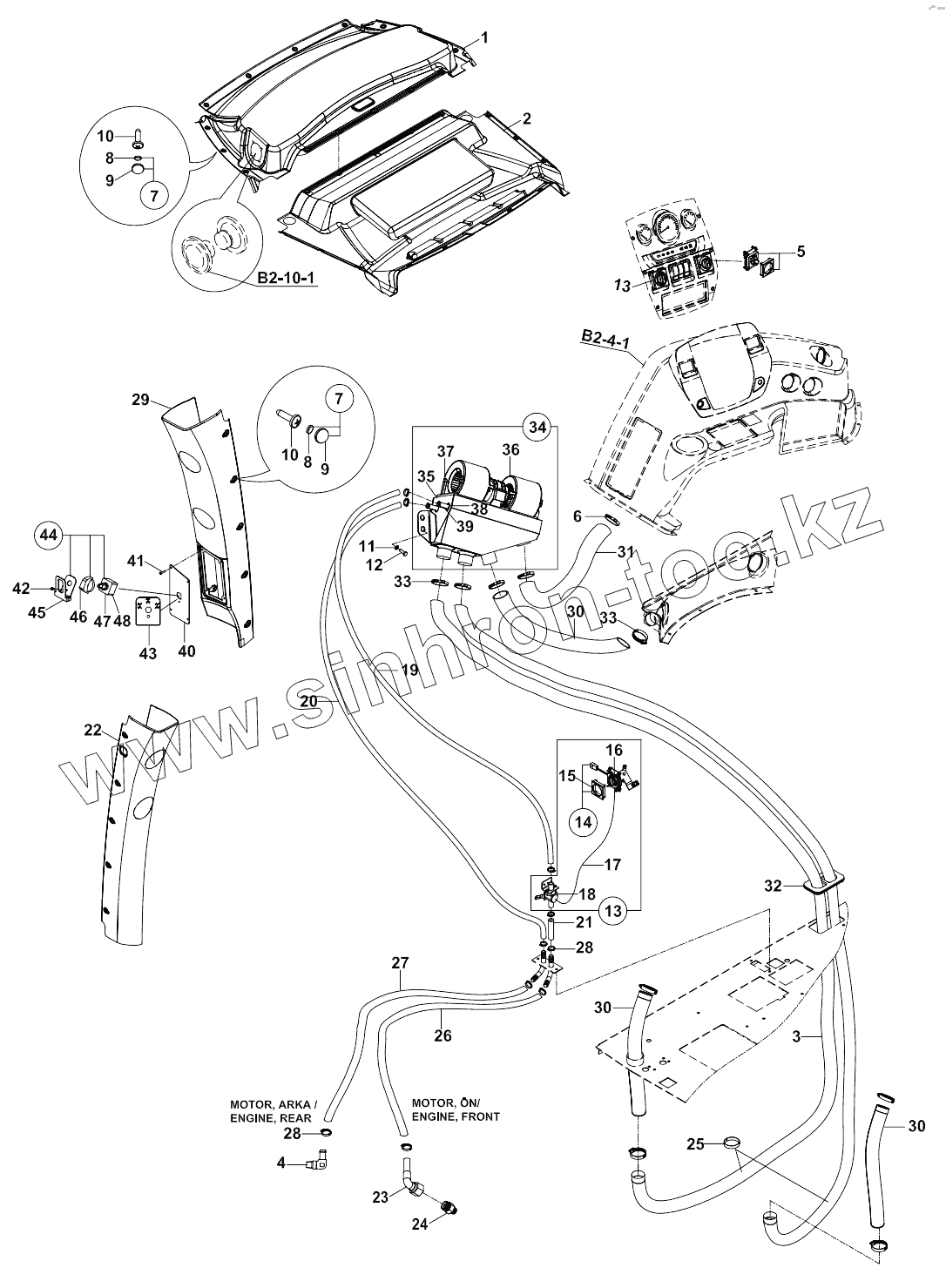

Каталог запасных частей к технике: Hidromek 102S MAESTRO. HEATER, HEATING SYSTEM A80061 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
30
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Позиция на иллюстрации Заводской номер детали Название детали
1 F32/19002 Trimming, interior rear
2 F32/19013 Trimming, interior front
3 799/05052 Hose
4 806/20200 Adapter
5 554/01010 Switch, fan
6 N07/4060080 Clamp
7 F99/15092 Cover
8 F99/15091 Washer
9 F99/15090 Cover
10 N04/9561286 Screw
11 N03/0020111 Washer, Pln.
12 N01/0232114 Bolt, Hex.
13 F99/29191 Mechanism, valve, heater compl
14 F99/29192 Mechanism, valve, heater
15 520/36150 Cover, switch
16 520/30810 Button, switch
17 F31/14200 CABLE
18 F99/29200 HEATER, VALVE
19 H06/7031508 Hose
20 H06/7031508 Hose
21 H06/7031508 Hose
22 020/40167 Side post trim, left
23 N19/2610508 Header
24 806/24228 Adapter
25 510/11700 String
26 H06/7031508 Hose
27 H06/7031508 Hose
28 N07/4016025 Clamp
29 020/40169 Side post trim, right
30 H06/9100352 Hose
31 H06/9100376 Hose
32 810/40029 Grommet
33 N07/4040060 CLIP
34 018/29394 Heater, assy
35 020/40289 Case heater
36 F25/20111 Blower
37 N04/1150338 Bolt
38 810/40007 Gromet
39 F25/20800 HEATER
40 020/02595 Plate, console
41 N04/4320362 BOLT M6x15
42 N01/2960487 Bolt
43 Y06/11240 Decal
44 524/02111 Steering mode assy
45 524/02120 Lock, steering mode
46 524/02112 Steering mode
47 524/02115 Switch
48 506/07005 Connector
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
