  5. CONTROL SYSTEM, BACKHOE, TB A80001 -

Каталог запасных частей к технике: Hidromek 102S MAESTRO. CONTROL SYSTEM, BACKHOE, TB A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
41
42
42
43
44
45
46
47
49
50
51
52
53
54
55
56
57
58
59
61
62
63
64
65
66
67
68
69
70
70
71
72
73
74
75
76
77
78
79
80
81
82
82
83
84
85
86
87
88
89
90
91
92
93

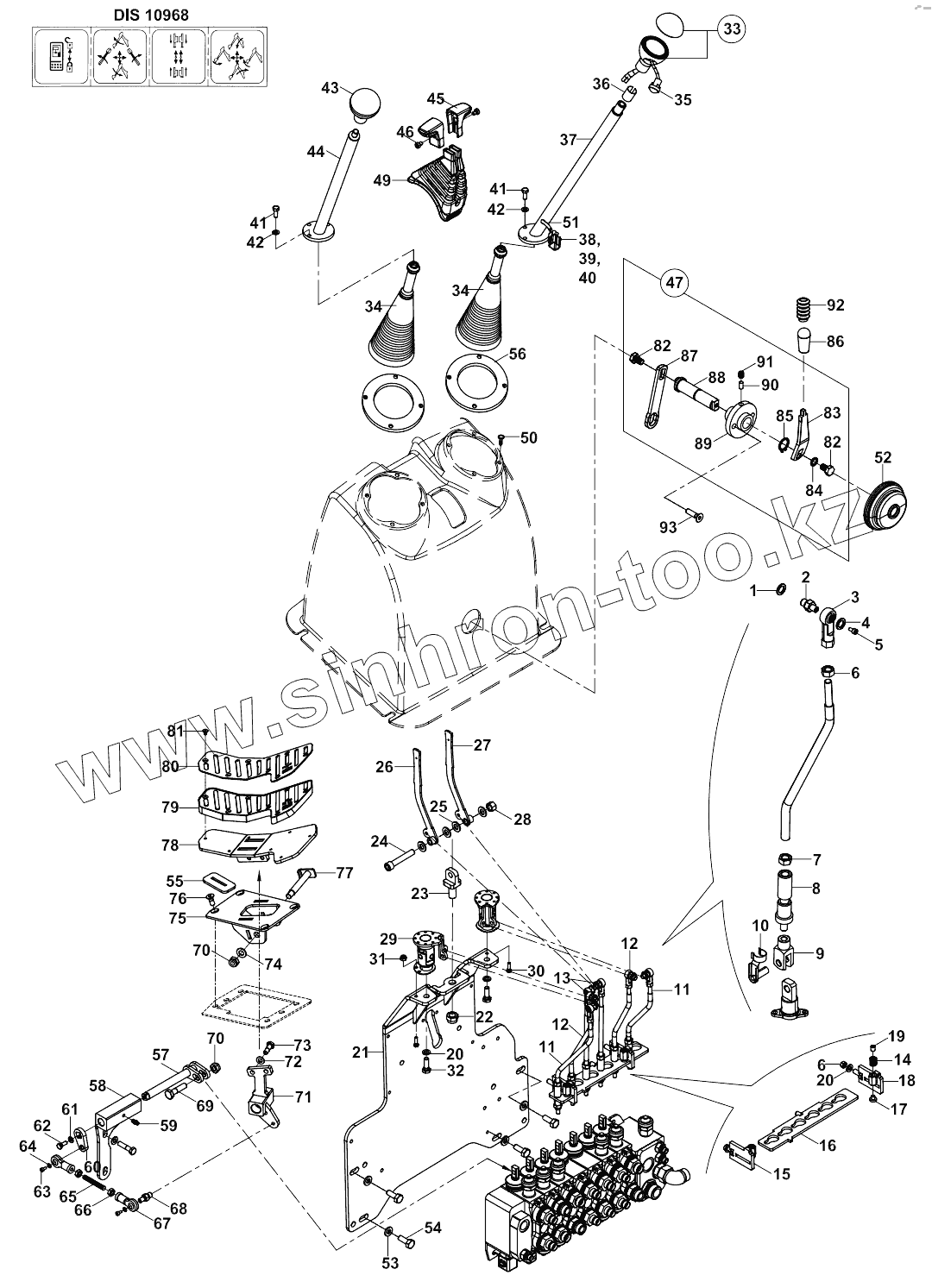

Позиция на иллюстрации Заводской номер детали Название детали
1 N03/1170019 WASHER M10
2 813/00150 PIN, JOINT
3 F99/60040 ROD END
4 N03/0001850 WASHER
5 N01/5890014 Bolt
6 N02/3580182 Nut
7 N02/59100086 Nut m10
8 810/14455 Pin, clevis
9 F99/60051 CLEVIS
10 F99/60056 PIN
11 020/21611 Rod
12 020/21610 Rod
13 020/21528 Rod
14 807/06665 Spring
15 019/91576 Plate
16 019/91575 Plate
17 F99/77905 FRICTION PLATE
18 019/91577 Plate
19 N04/3120794 SETSCREW
20 N03/1170025 WASHER M12
21 019/29185 Mounting plate
22 N02/5910182 Nut
23 020/21415 Handle
24 N01/0380914 Bolt
25 N03/0312201 WASHER
26 019/91404 Lever, left
27 019/91403 Lever, right
28 N02/59100122 Nut
29 019/29277 Joint
30 N01/0231514 Bolt, Hex.
31 N02/5910050 Nut
32 N01/0232846 Bolt, Hex.
33 F99/20011 Lever, knob
34 810/28556 Gaiter
35 F06/17090 Switch
36 F99/20002 RING
37 019/91398 Lever
38 506/10000 CONNECTOR
39 506/10001 Lock
40 529/22000 Plug
41 N01/0221478 Bolt, Hex.
42 N03/0100013 Washer, Pln.
43 F99/20012 Knob
44 019/91397 Lever
45 F99/40411 Lever
46 N04/4061070 Bolt
47 F99/20040 Lever locking, assy
48 N04/4320520 Screw
49 810/28582 Gaiter
50 N13/0165180 PLUG
51 018/53531 Control levers, button harness
52 810/30017 Gaiter
53 N03/1170025 WASHER M12
54 N01/0232822 Bolt, Hex.
55 810/40018 Brommet
56 020/02494 Bracket
57 019/29278 Shaft pedal mechanism
58 019/29279 Bracket, pedal control
59 N08/1110020 Grease nipple
60 020/02980 Plate
61 N03/0020004 Washer, Pln.
62 N01/0231478 Bolt, Hex.
63 N01/5890014 Bolt
64 N03/0001850 WASHER
65 020/21651 Rod
66 N02/3580182 Nut
67 F99/60040 ROD END
68 813/00150 PIN, JOINT
69 N01/0380626 Bolt, Hex
70 N02/5910086 Nut
71 018/29287 Body compl
72 N03/0020011 Washer, Pln.
73 N01/0232138 Bolt, Hex.
74 N03/1170019 WASHER M10
75 019/93015 Braker pedal adapter
76 N04/4330506 Screw
77 019/92967 Pin
78 019/92962 Pedal, plate, lower
79 810/40190 Pedal, rupper
80 020/12372 Pedal, plate, upper
81 N04/4330230 Screw
82 N01/0232078 Bolt
83 020/20714 LEVER, LOCKING
84 N03/0020011 Washer, Pln.
85 N05/0020035 RETAINING RING
86 F99/20006 Knob
87 020/01070 BRACKET
88 810/14429 PIN, CLEVIS
89 019/29246 Wedge
90 F99/77925 VIBRATION PREVENTIVE
91 N04/3120686 Pin
92 810/30015 GAITER
93 N04/4320530 Screw
