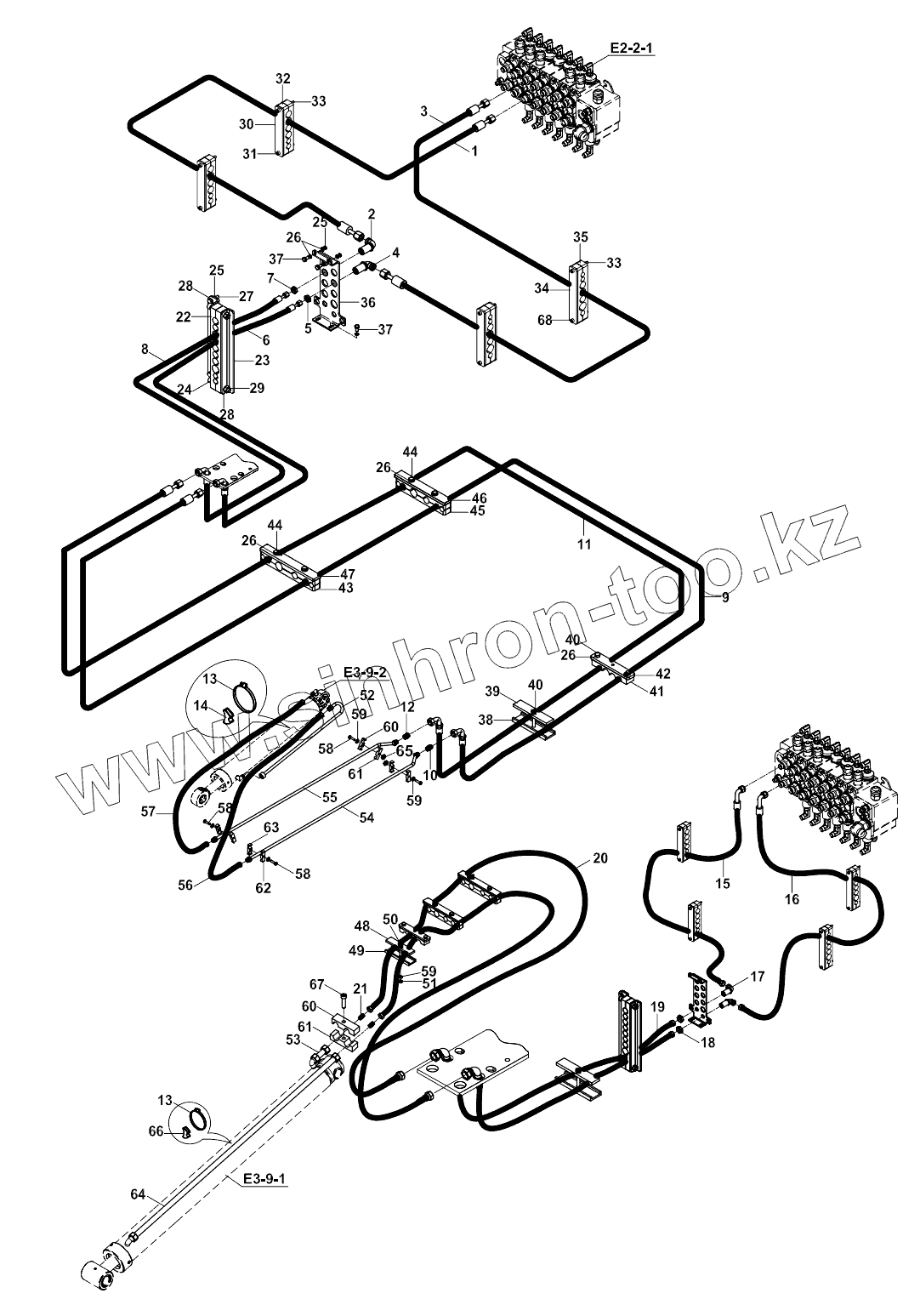

Каталог запасных частей к технике: Hidromek 102S MAESTRO. CIRCUIT MOUNTING, RAM, BUCKET, TB A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
26
26
27
28
28
29
30
31
32
33
33
34
35
36
37
37
38
39
40
40
41
42
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
58
59
59
59
60
60
61
61
62
63
64
65
66
67
68
Позиция на иллюстрации Заводской номер детали Название детали
1 665/3320150 HOSE
2 N16/3610234 ADAPTER
3 664/2220165 HOSE
4 N16/3610212 ADAPTER M24x1.5
5 804/00634 NUT, M24x1.5
6 664/2221260 HOSE
7 804/00636 NUT, M26x1.5
8 665/3321260 HOSE
9 664/222B176 Hose
10 N16/3450122 ADAPTER
11 665/332B176 Hose
12 N16/3450129 ADAPTER
13 N07/4100120 CLIP
14 814/00362 HOSE SUPPORTER
15 663/1121160 HOSE
16 663/1121180 Hose
17 N16/3610129 ADAPTER
18 804/00632 NUT
19 663/1121250 HOSE
20 663/112B185 HOSE
21 N16/3450094 ADAPTER
22 N07/2130017 HOSE HOLDER, RUBBER
23 810/49012 HOSE HOLDER PLATE
24 N01/5890914 Bolt, Cyl. Head
25 N02/5910062 Nut
26 N03/0020011 Washer, Pln.
27 N01/0232486 Bolt, Hex.
28 N03/0020018 Washer, Pln.
29 N02/5910086 Nut
30 810/49021 HOSE HOLDER PLATE
31 N01/5890422 Bolt
32 N07/2130201 HOSE HOLDER, RUBBER
33 N02/5910050 Nut
34 810/49023 HOSE HOLDER PLATE
35 N07/2130220 HOSE HOLDER, RUBBER
36 020/12370 Adapter mounting
37 N01/0232078 Bolt
38 810/48112 CLAMP PROTECTION
39 810/49044 HOSE HOLDER
40 N01/0380410 Bolt, Hex.
41 N07/2130100 HOSE HOLDER, RUBBER
42 810/49045 HOSE HOLDER PLATE
43 N07/2130132 HOSE HOLDER, RUBBER
44 N01/0380446 Bolt
45 N07/2130122 HOSE HOLDER, RUBBER
46 810/49038 PIPE HOLDER
47 810/49041 PIPE HOLDER
48 810/49043 HOSE HOLDER
49 810/48111 HOSE HOLDER RUBBER
50 N01/0380674 Bolt, Hex.
51 N02/5910086 Nut
52 452/51679 PIPE
53 452/50101 PIPE
54 452/51671 PIPE
55 452/51670 PIPE
56 664/22MC125 Hose
57 665/33MA135 Hose
58 N01/0232546 Bolt
59 N03/0020121 Washer, Pln.
60 810/52120 HOSE HOLDER, UPPER
61 810/52121 HOSE HOLDER, LOWER
62 810/52185 Hose holder, upper
63 810/52186 Hose holder, lower
64 452/50111 PIPE
65 N02/3580206 Nut
66 814/00362 HOSE SUPPORTER
67 N01/5890350 Bolt
68 N01/5890398 Bolt
69 810/49004 HOSE HOLDER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
