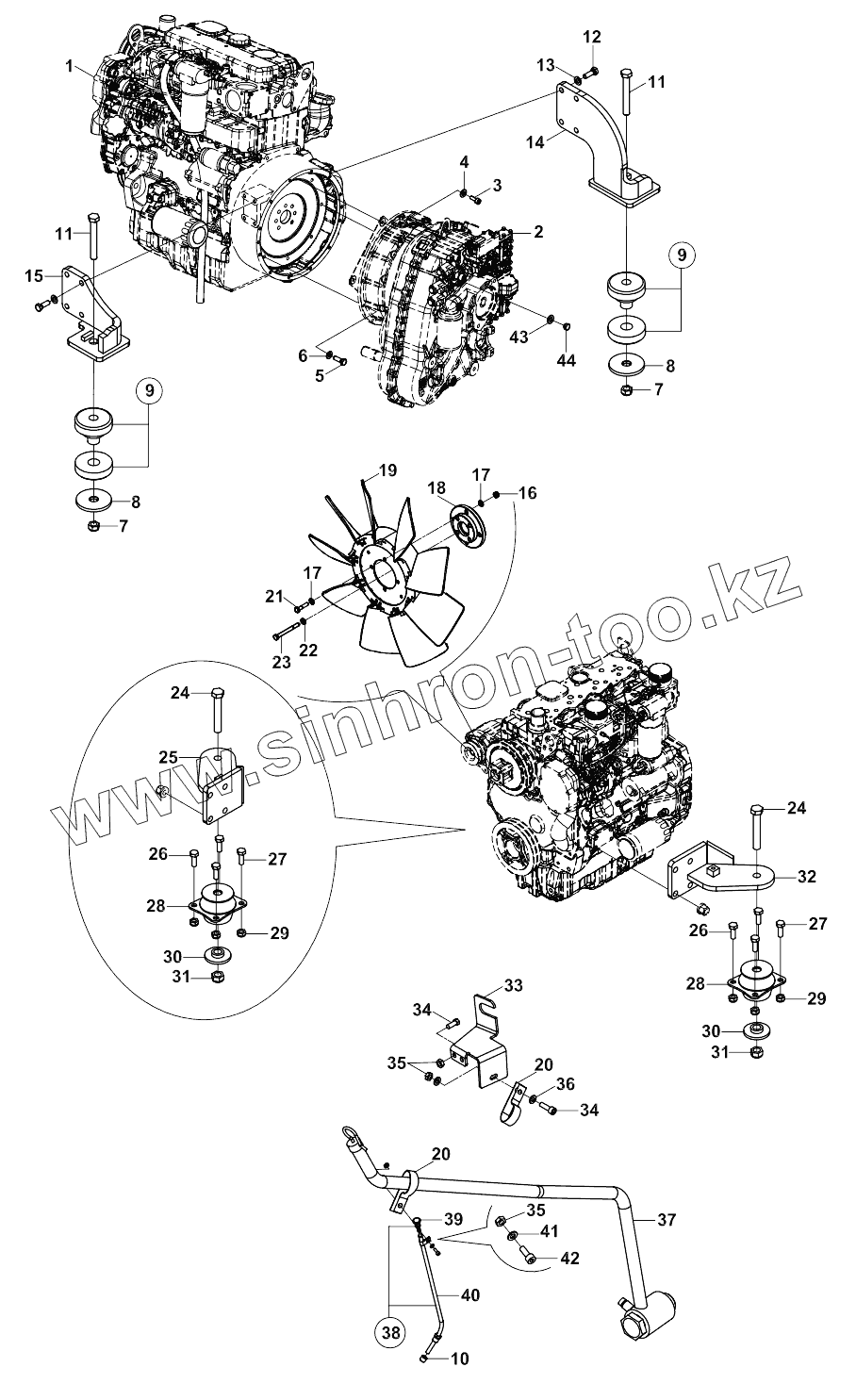

Каталог запасных частей к технике: Hidromek 102S MAESTRO. CHASSIS - CAB - ENGINE MOUNTINGS A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
7
7
8
8
9
9
10
11
11
12
13
14
15
16
17
17
18
19
20
20
21
22
23
24
24
25
26
26
27
27
28
28
29
29
30
30
31
31
32
33
34
34
35
35
36
37
37
38
39
40
41
42
43
44
Позиция на иллюстрации Заводской номер детали Название детали
1 ENGINE ENGINE, GREEN 2
2 TRANSMISSION Transmission
3 N01/0232462 Bolt, Hex.
4 N03/0020018 Washer, Pln.
5 N01/0380626 Bolt, Hex
5 N01/0232486 Bolt, Hex.
6 N03/0810015 Washer
7 N02/5910242 Nut
8 805/00074 Washer
9 F99/60023 Mounting, rubber
10 F01/10452 Gasket
11 N01/0381908 Bolt
12 N01/0380854 Bolt, Hex.
13 N03/0810001 Washer
14 019/90099 Engine mounting plate, right
15 019/90096 Engine mounting plate, left
16 N02/5910062 Nut
17 N03/0810014 Washer
18 020/40330 Fan bracket
19 F99/30030 Fan
20 N07/7012508 Hose holder
21 N01/0232162 Bolt, Hex.
22 N03/0810014 Washer
23 N01/0380552 Bolt
24 N01/0671442 Bolt
25 019/90090 Engine mounting plate,rear- right
26 N01/0232486 Bolt, Hex.
27 N01/0380626 Bolt, Hex
28 F99/60021 MOUNTING, RUBBER
29 N02/5910086 Nut
30 805/00047 WASHER
31 N02/5910194 Nut
32 019/90091 Engine mounting
33 020/11564 THROTTLE CABLE MOUNTING PLATE
34 N01/0231514 Bolt, Hex.
35 N02/5910050 Nut
36 N03/0100013 Washer, Pln.
37 018/90387 Dipstick, transmission oil level
37 018/90403 Dipstick, transmission oil level
38 018/90392 Dipstick, engine
39 810/09722 TUBE, DIPSTICK
40 810/09761 DIPSTICK
41 N03/0100013 Washer, Pln.
42 N01/0231478 Bolt, Hex.
43 F01/24143 O-RING
44 F01/32126 PLUG
