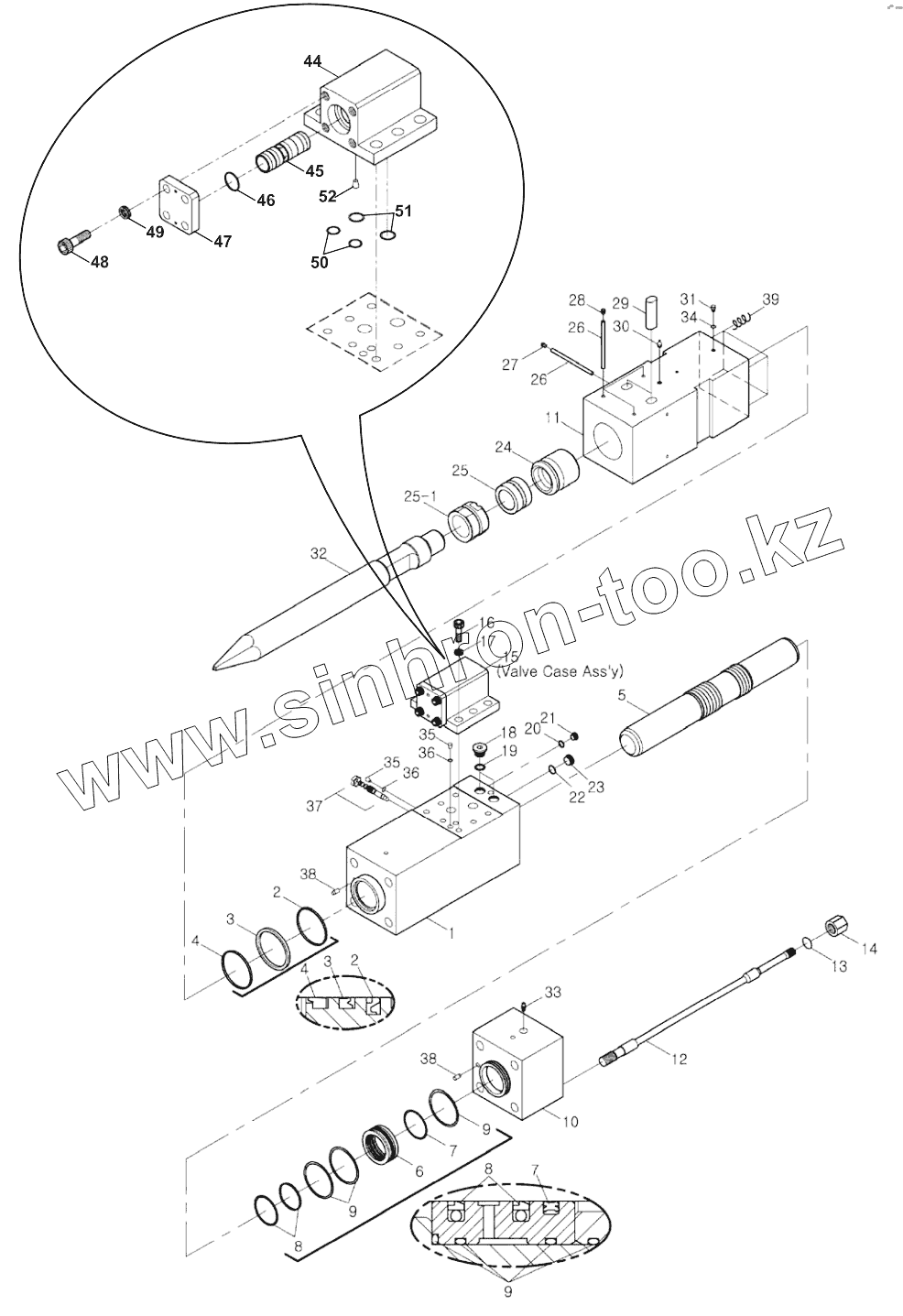

Каталог запасных частей к технике: Hidromek 102S MAESTRO. BREAKER, DEMO DMB70 A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
39
29
30
31
32
33
34
35
35
36
36
37
38
38
28
44
45
46
47
48
49
50
51
52
15
2
2
3
3
4
4
5
6
7
7
8
8
9
9
9
10
11
12
13
14
1
16
17
18
19
20
21
22
23
24
25
25-1
26
26
27
Позиция на иллюстрации Заводской номер детали Название детали
39 S45/15525 Heli coil
29 S45/15521 Pin chisel
30 S45/15020 Grease nipple
31 S45/15015 Plug hollow
32 F45/01420 Chisel
32-1 F45/01425 Chisel
32-2 F45/01415 Chisel
32-3 F45/01414 Chisel
33 S45/15502 Screw coupling
34 S45/14927 O-ring
35 S45/15017 Plug, hex Socket
36 S45/14911 O-ring
37 S45/15035 Adjust ass'y
38 S45/14967 Pin knock
28 S45/15086 Plug, screw+rubber
40 S45/15526 Seal kit, all
41 S45/15551 Seal kit, cylinder
42 S45/15072 Seal kit, valve case
43 S45/15560 Through bolt set
44 S45/15519 Case, valve
45 S45/14993 Valve
46 S45/14938 O-ring
47 S45/15565 Plate, valve
48 S45/15470 Washer, nord lock
49 S45/15480 Bolt, socket
50 S45/14933 O-ring
51 S45/14937 O-ring
52 S45/15010 Plug, choke
15 S45/15529 Valve case assy
2 S45/14947 Ring, buffer
3 S45/14943 U-packing
4 S45/14945 Dust seal
5 S45/14969 Piston
6 S45/15518 Bush, cylinder
7 S45/15410 Quad ring
8 S45/15411 Seal step
9 S45/14941 O-ring
10 S45/15523 Cap head
11 S45/15524 Front head
12 S45/15516 Bolt through
13 S45/15028 Washer, for t bolt
14 S45/15517 Knock pin
1 S45/15047 Bolt
16 S45/15555 Bolt, socket
17 S45/15470 Washer, nord lock
18 S45/15466 Plug, hex Socket
19 S45/14936 O-ring
20 S45/14929 O-ring
21 S45/15016 Plug, hex Socket
22 S45/14939 O-ring
23 S45/15018 Plug, hex Socket
24 S45/14992 Ring thrust
25 S45/14992 Ring thrust
25-1 S45/15541 Front cover
26 S45/14944 Pin stop
27 S45/15096 Plug, screw+rubber
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
