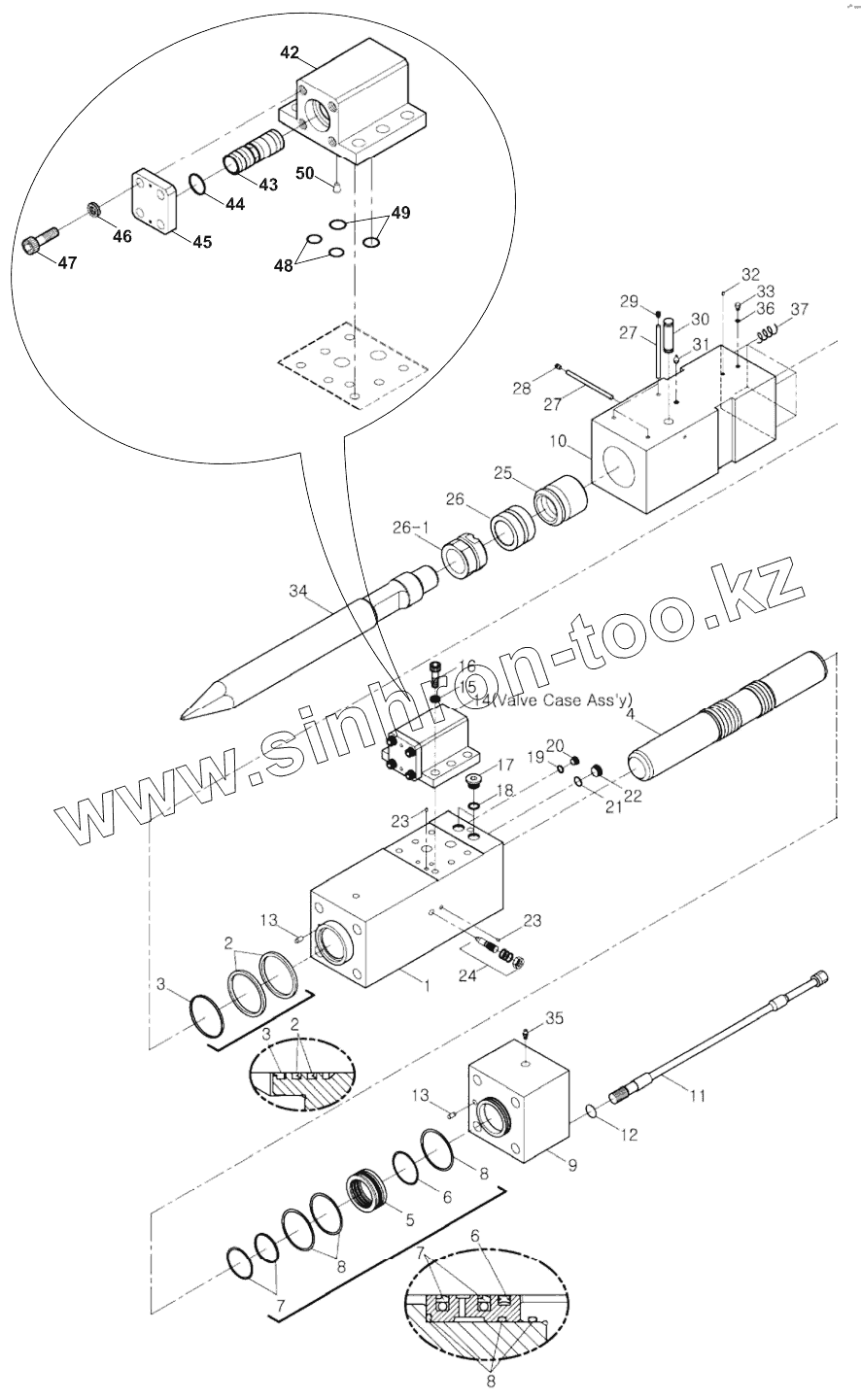

Каталог запасных частей к технике: Hidromek 102S MAESTRO. BREAKER, DEMO DMB50 A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
28
29
30
31
32
33
34
35
36
37
27
27
42
43
44
45
46
47
48
49
50
15
2
2
3
3
4
5
6
6
7
7
8
8
8
9
10
11
12
13
13
1
16
17
18
19
20
21
22
23
23
24
25
26
26-1
Позиция на иллюстрации Заводской номер детали Название детали
38 S45/15384 Seal kit, all
28 S45/15096 Plug, screw+rubber
29 S45/15086 Plug, screw+rubber
30 S45/15490 Pin chisel
31 S45/15020 Grease nipple
32 S45/15015 Plug hollow
33 S45/15418 Air cap ass'y
34 S45/15435 Chisel
34-1 S45/15440 Chisel
34-2 S45/15445 Chisel
34-3 S45/15430 Chisel
35 S45/15502 Screw coupling
36 S45/14927 O-ring
37 S45/15505 Heli coil
27 S45/15460 Pin stop
39 S45/15385 Seal kit, cylinder
40 S45/15485 Seal kit, valve case
41 S45/15492 Through bolt set
42 S45/15366 Case, valve
43 S45/15365 Valve
44 S45/15404 O-ring
45 S45/15370 Plate, valve
46 S45/15470 Washer, nord lock
47 S45/15480 Bolt, socket
48 S45/14929 O-ring
49 S45/15475 O-ring
50 S45/15501 Plug, choke
15 S45/15470 Washer, nord lock
2 S45/15402 U-packing
3 S45/15403 Dust seal
4 S45/15421 Piston
5 S45/15422 Bush, cylinder
6 S45/15407 Quad ring
7 S45/15408 Seal step
8 S45/15401 O-ring
9 S45/15355 Cap head
10 S45/15360 Front head
11 S45/15425 Bolt through
12 S45/15428 Washer, for t bolt
13 S45/14967 Pin knock
14 S45/15380 Valve case assy
1 S45/15350 Cylinder
16 S45/15480 Bolt, socket
17 S45/15466 Plug, hex Socket
18 S45/14936 O-ring
19 S45/14939 O-ring
20 S45/15018 Plug, hex Socket
21 S45/14911 O-ring
22 S45/15017 Plug, hex Socket
23 S45/15465 Plug, holow
24 S45/15035 Adjust ass'y
25 S45/15455 Ring thrust
26 S45/15307 Front cover
26-1 S45/15450 Front cover
