Каталог запасных частей к технике: Hidromek 102S MAESTRO. AUGER A80001 -

Тип техники

Марка

Модель

Схема

1

2

3

4

5

5

6

6

7

8

8

8

9

10

11

11

12

12

13

14

15

16

17

17

18

19

19

20

21

22

23

24

25

26

27

28

29

30

30

30

31

31

32

33

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

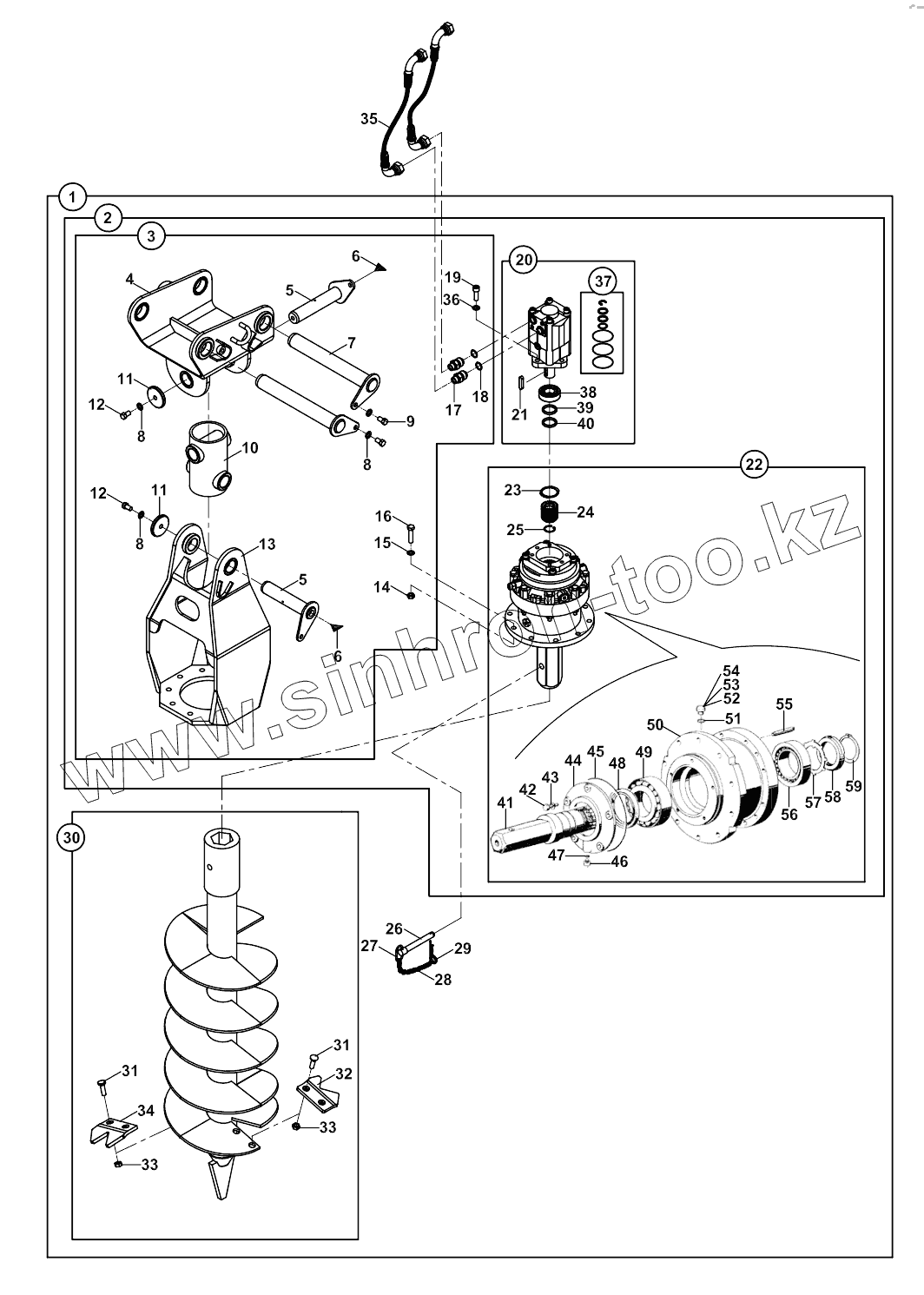

Позиция на иллюстрации	Заводской номер детали		Название детали
1	078/00010		Auger, assy
2	078/10000		Bracket, assy
3	078/10001		Bracket, assy
4	078/20000		Bracket, upper
5	811/01008		Pin, pivot
6	N08/1210020		Lubricants
7	811/01040		PIN
8	N03/2500016		WASHER M12
9	N01/0222798		BOLT M12x20
10	078/90020		Connector, joint
11	805/00685		Washer
12	N01/0222822		Bolt, Hex.
13	078/20500		Bracket, lower
14	N02/5900122		NUT M12
15	N03/1170025		WASHER M12
16	N01/0370866		BOLT M12x50
17	806/03075		Adapter
17	806/24026		ADAPTER
18	N03/0221252		WASHER
19	N01/5871178		Bolt
19	N01/0222858		BOLT M12x35
20	F49/02000		Motor, hydraulic
21	N50/0100108		Wedge
22	F49/01070		Gear box, planetary
23	N05/0020090		RETAINING RING
24	F49/01090		Coupling
25	N05/0220071		Retaining ring
26	801/10070		Pin
27	020/10320		Ring, connector
28	N99/3334012		Chain
29	N06/3004064		Pin
30	078/20600		Auger
30	078/20580		Auger
30	078/20582		Auger
31	N01/1660097		Bolt
32	020/20340		Cutter
33	N02/3560242		Nut
34	020/20341		Cutter
35	665/3321190		Hose
36	N03/0100023		Washer, Pln.
37	F49/02090		Seal kit
38	F49/02030		Bearing
39	F49/02010		Seal
40	F49/02021		Seal
41	S49/01100		Rod
42	S49/01185		Screw
43	S49/01190		Washer
44	S49/01115		Cover
45	S49/01130		O-ring
46	S49/01165		Plug
47	S49/01135		Washer
48	S49/01125		Oil seal
49	S49/01150		Bearing
50	S49/01110		Support
51	S49/01140		Washer
52	S49/01170		Plug
53	S49/01175		Plug
54	S49/01180		Plug
55	S49/01160		Spring pin
56	S49/01145		Bearing
57	S49/01120		Washer
58	S49/01195		Nut
59	S49/01155		Retaining ring
