  5. AIR CONDITIONER, COOLING SYSTEM A80814 -

Каталог запасных частей к технике: Hidromek 102S MAESTRO. AIR CONDITIONER, COOLING SYSTEM A80814 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
4
5
6
7
8
9
9
9
10
11
11
11
11
12
13
14
15
16
16
16
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
33
34
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

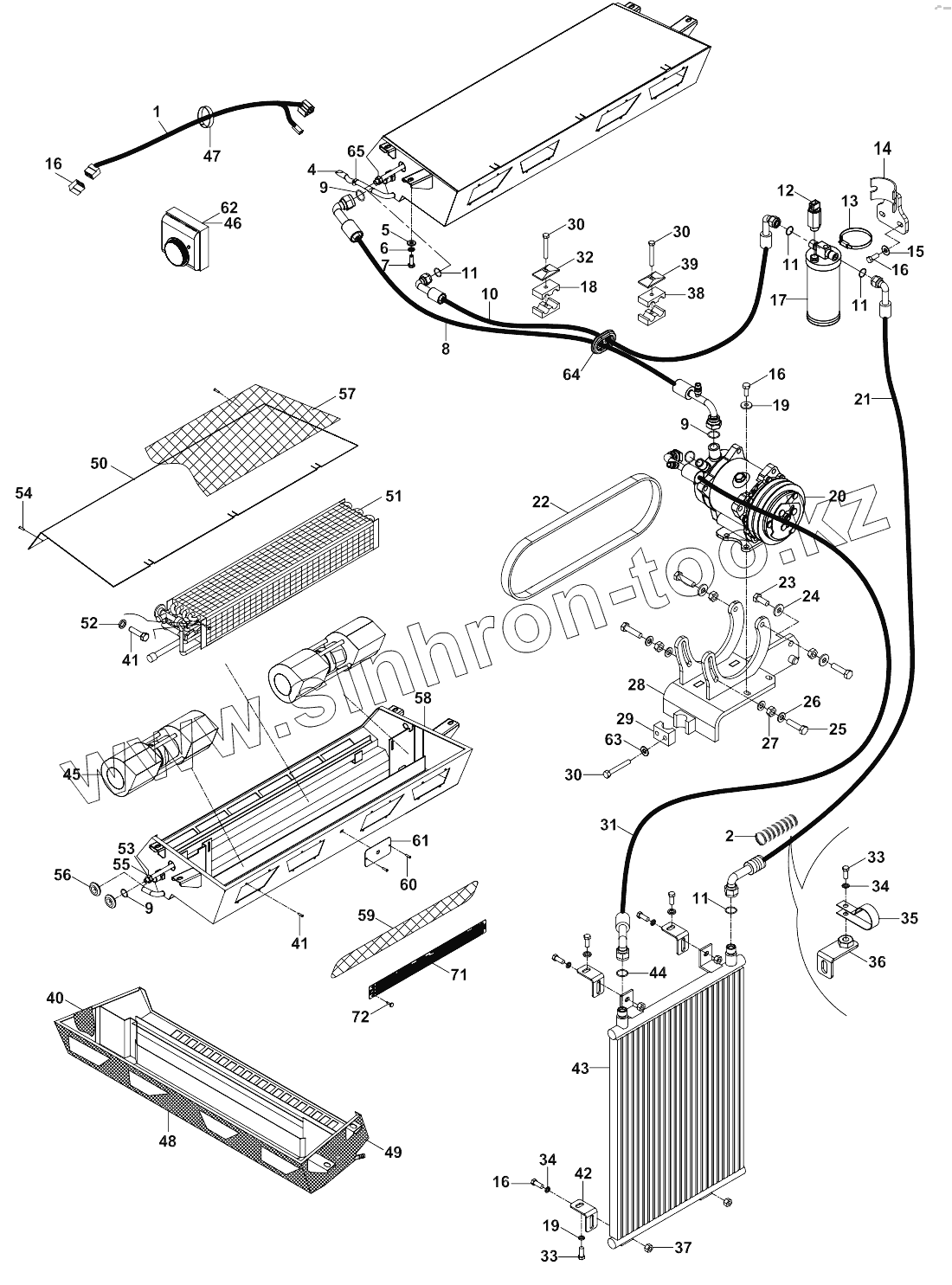

Позиция на иллюстрации Заводской номер детали Название детали
1 017/5000301 Air conditioner assy
2 018/29320 Air conditioner
3 F31/12020 Air intake
4 F25/20630 Hvac unit
5 799/01024 Hose ,hot water
6 799/01025 Hose ,hot water
7 N03/0100017 Washer, Pln.
8 N01/0232114 Bolt, Hex.
9 799/01022 Hose ,hot water
10 799/01021 Hose ,hot water
11 799/01023 Hose
12 6A14211076 Hose
13 6A1A211102 Hose
14 N07/4016025 Clamp
15 F31/12022 Adapter
16 510/11700 String
17 F99/29201 Heater valve
18 N03/0100017 Washer, Pln.
19 N01/0232114 Bolt, Hex.
20 020/43056 Bracket
21 N04/9602042 Bolt
22 6A1A325490 Hose
23 6A17325150 Hose
24 6A14321130 Hose
25 6A14321500 Hose
26 F25/20011 Compressor
27 019/90043 MOUNTING PLATE
28 N01/5890842 Bolt, Cylinder Head
29 N03/0020121 Washer, Pln.
30 N02/5910086 Nut
31 N03/0020111 Washer, Pln.
32 N01/0232138 Bolt, Hex.
33 N01/0232486 Bolt, Hex.
34 F25/20563 Condenser
35 020/19015 Mounting plate
36 020/19014 Mounting plate
37 020/19018 Mounting plate
38 020/19017 Mounting plate
39 020/19016 Mounting plate
40 020/19013 Mounting plate
41 N01/0232114 Bolt, Hex.
42 N03/0020011 Washer, Pln.
43 N01/0232138 Bolt, Hex.
44 N02/5900062 Washer, Pln.
45 N01/0232114 Bolt, Hex.
46 M112703100 Dryer
47 51520001 Switch, ac
48 N07/4050070 Clamp
49 019/91478 Bracket
50 799/05054 Hose
51 799/05053 Hose
52 799/05057 Hose
53 799/05058 Hose
54 N07/4016027 Clamp
55 799/05052 Hose
56 N07/4040060 CLIP
57 799/05059 Hose
58 799/05055 Hose
59 799/05056 Hose
60 510/11700 String
61 F25/20460 Mud holder
62 799/00120 HOSE
63 N01/0232462 Bolt, Hex.
64 805/04300 WASHER
65 806/20200 Adapter
66 N19/610508 Header
67 806/24228 Adapter
68 020/43001 Air duct
69 554/00300 Temperature sensor, outdoor
