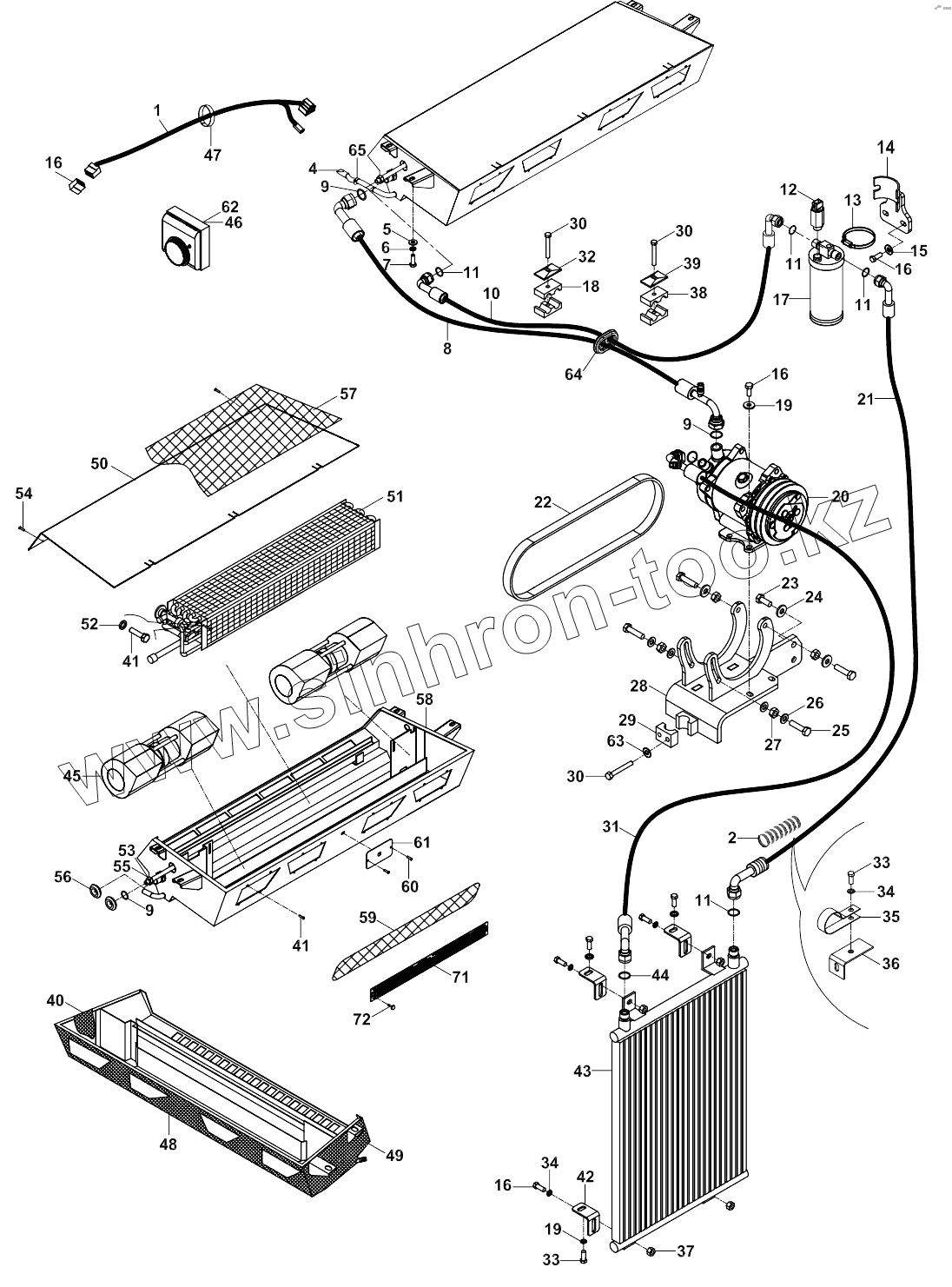

Каталог запасных частей к технике: Hidromek 102S MAESTRO. AIR CONDITIONER, COOLING SYSTEM A80001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
4
5
6
7
8
9
9
9
10
11
11
11
11
12
13
14
15
16
16
16
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
33
34
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
Позиция на иллюстрации Заводской номер детали Название детали
1 018/53443 Cable, fan
2 N02/0000200 NUT
3 H06/9110060 Hose
4 F25/20460 Mud holder
5 N03/1170017 WASHER M8
6 N03/0020011 Washer, Pln.
7 N01/0232162 Bolt, Hex.
8 700/4413470 HOSE
9 N10/2500708 O-Ring
10 698/2213480 Hose
11 N10/2500508 O-Ring
12 515/20000 Pressure Switch
13 N07/4050070 Clamp
14 019/91478 Bracket
15 N03/0020011 Washer, Pln.
16 506/14000 Connector
17 F25/21000 Drier
18 N07/2130230 Clamp body
19 N03/0020111 Washer, Pln.
20 F25/20010 COMPRESSOR
21 698/2212050 Hose
22 S91/00190 BELT, A/C
23 N01/0232486 Bolt, Hex.
24 N03/0020121 Washer, Pln.
25 N01/5890842 Bolt, Cylinder Head
26 N03/0020121 Washer, Pln.
27 N02/5910086 Nut
28 019/90043 MOUNTING PLATE
29 N07/2027513 CLAMP BODY
30 N01/0380446 Bolt
31 699/3312093 Hose
32 N07/3023272 COVER, CLAMP
33 N01/0232078 Bolt
34 N03/0020011 Washer, Pln.
35 N07/7002426 Hose holder
36 019/92990 Bracket
37 N02/5910062 Nut
38 N07/2130230 Clamp body
39 N07/3016002 COVER, CLAMP
40 816/02406 SEAL, INSULATION
41 N04/1150388 Bolt
42 020/12771 Mounting plate
43 F25/20562 Condenser
44 N10/2500304 O-Ring
45 F25/20110 FAN
46 545/50304 Makaron
47 510/11700 String
48 816/02410 Seal, insulation
49 816/02405 SEAL, INSULATION
50 020/11798 COVER PLATE, AIR CONDITIONER
51 F25/20620 EVAPARATOR
52 N03/0020001 Washer
53 N07/4010016 Clamp
54 N04/9530360 Screw
55 806/99988 ADAPTER
56 810/40007 Gromet
57 816/02408 SEAL, INSULATION
58 019/29364 Mounting plate
59 816/02407 SEAL, INSULATION
60 N04/1150349 Bolt
61 020/02208 Cover
62 F25/20411 Thermostat
63 N03/0100013 Washer, Pln.
64 810/40072 Grommet
65 N07/4010016 Clamp
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
