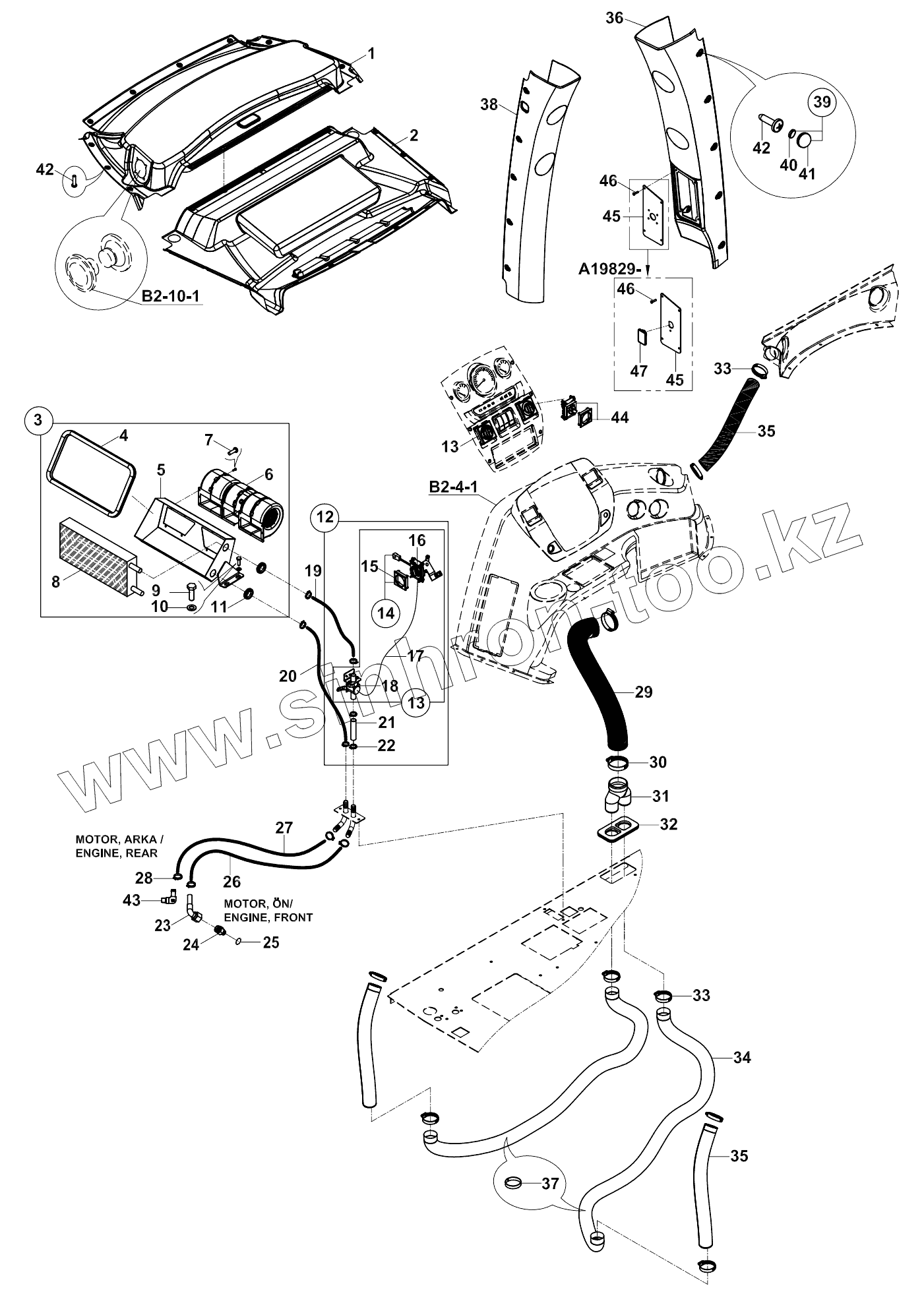

Каталог запасных частей к технике: Hidromek 102B Maestro-ZF. HEATER, HEATING SYSTEM A19001-A19828

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
020/02595
020/02595
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
35
36
37
38
39
40
41
42
42
43
44
45
45
46
46
47
Позиция на иллюстрации Заводской номер детали Название детали
020/02595 020/02595 Plate, console
1 F32/19002 Trimming, interior rear
2 F32/19013 Trimming, interior front
3 018/29399 Heater, assy
4 816/00814 Strip, ribber
5 019/29393 Case, heater
6 F25/20110 FAN
7 N04/1150338 Bolt
8 F25/20800 HEATER
9 N01/0232114 Bolt, Hex.
10 N03/0020111 Washer, Pln.
11 810/40007 Gromet
12 018/42302 Mechanism, valve,
13 F99/29191 Mechanism, valve, heater compl
14 F99/29192 Mechanism, valve, heater
15 520/36150 Cover, switch
16 520/30810 Button, switch
17 F31/14200 CABLE
18 F99/29200 HEATER, VALVE
19 H06/7031508 Hose
20 H06/7031508 Hose
21 H06/7031508 Hose
22 N07/4016025 Clamp
23 N19/2610508 Header
24 806/24228 Adapter
25 N10/2001326 O-ring
26 H06/7031508 Hose
27 H06/7031508 Hose
28 N07/4016025 Clamp
29 799/05043 Hose
30 N07/4070090 Clamp
31 020/40288 Hose
32 810/40029 Grommet
33 N07/4040060 CLIP
34 H06/9100352 Hose
35 799/05085 Hose
36 020/40169 Side post trim, right
37 510/11700 String
38 020/40167 Side post trim, left
39 F99/15092 Cover
40 F99/15091 Washer
41 F99/15090 Cover
42 N04/9561286 Screw
43 806/20200 Adapter
44 554/01010 Switch, fan
45 020/02542 Plate, console
46 N04/4320362 BOLT M6x15
47 020/40813 Cover
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
