  5. CONTROL SYSTEM, BACKHOE A19001-

Каталог запасных частей к технике: Hidromek 102B Maestro-ZF. CONTROL SYSTEM, BACKHOE A19001-

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
42
43
44
45
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
74
75
75
76
77
78

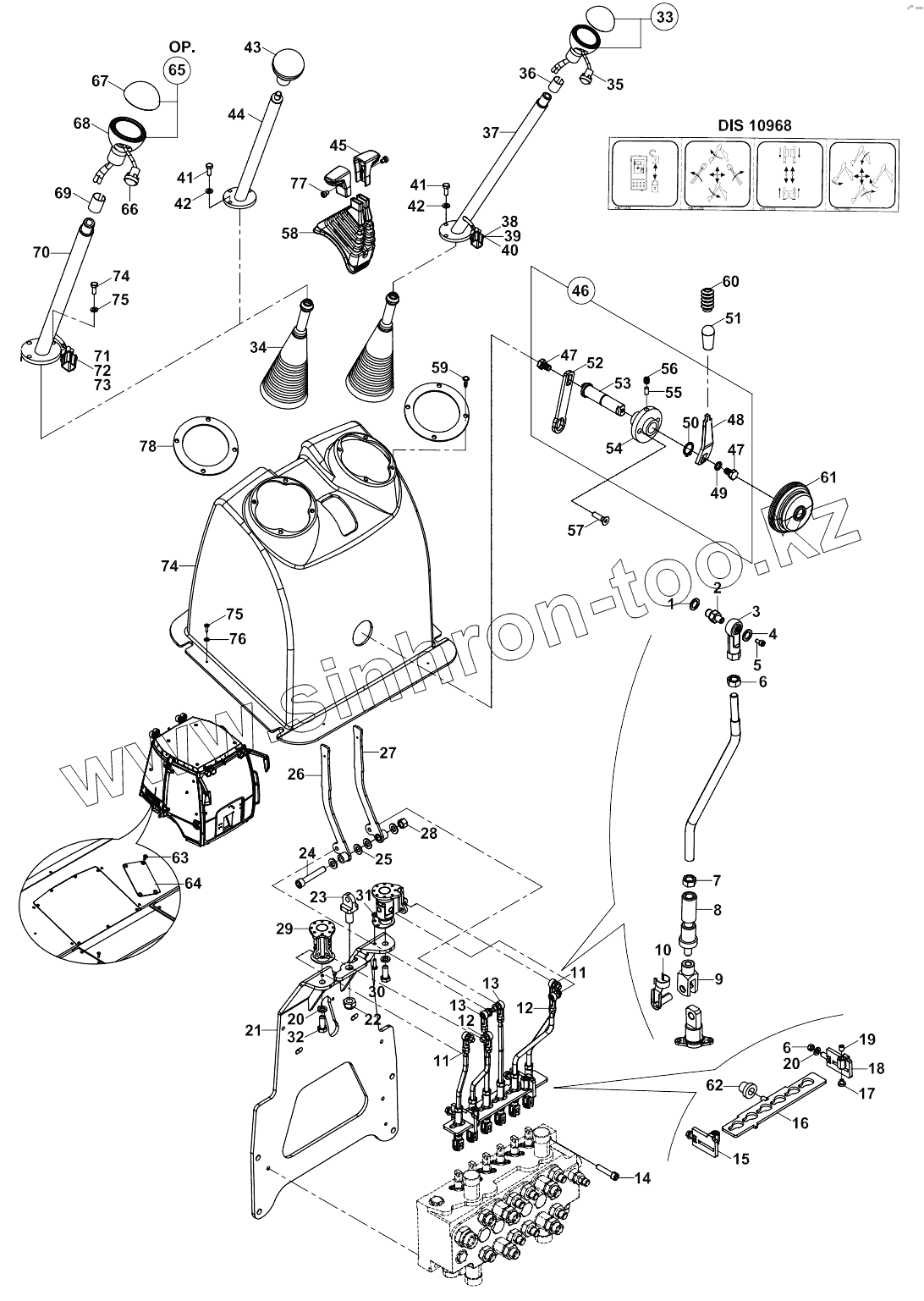

Позиция на иллюстрации Заводской номер детали Название детали
1 N03/0810015 Washer
2 813/00150 PIN, JOINT
3 F99/60040 ROD END
4 N03/0001850 WASHER
5 N01/5890014 Bolt
6 N02/3580182 Nut
7 N02/3570206 Nut, Hex.
8 810/14454 Pin, clevis
9 F99/60050 Knurling Tool
10 F99/60055 Knuckle Pin
11 020/21413 Rod
12 020/21412 Rod
13 020/21528 Rod
14 N01/5890866 Bolt, Cyl. Hd.
15 019/91576 Plate
16 019/91579 Locking plate
17 F99/77905 FRICTION PLATE
18 019/91577 Plate
19 N04/3120794 SETSCREW
20 N03/0020121 Washer, Pln.
21 019/29298 Mounting plate
22 N02/5910182 Nut
23 020/21415 Handle
24 N01/0380914 Bolt
25 N03/0312201 WASHER
26 019/91404 Lever, left
27 019/91403 Lever, right
28 N02/59100122 Nut
29 019/29277 Joint
30 N01/0231514 Bolt, Hex.
31 N02/5910050 Nut
32 N01/0232846 Bolt, Hex.
33 F99/20011 Lever, knob
34 810/28556 Gaiter
35 554/00430 BUTTON, HORN
36 F99/20002 RING
37 019/91398 Lever
38 506/06000 CONNECTOR
39 506/10001 Lock
40 529/22000 Plug
41 N01/0221478 Bolt, Hex.
42 N03/0100013 Washer, Pln.
43 F99/20012 Knob
44 019/91397 Lever
45 F99/40411 Lever
46 F99/20040 Lever locking, assy
47 N01/0232078 Bolt
48 020/20714 LEVER, LOCKING
49 N03/0810014 Washer
50 N05/0020035 RETAINING RING
51 F99/20006 Knob
52 020/01070 BRACKET
53 810/14429 PIN, CLEVIS
54 019/29246 Wedge
55 F99/77925 VIBRATION PREVENTIVE
56 N04/3120686 Pin
57 N04/4320530 Screw
58 810/28582 Gaiter
59 N13/0165180 PLUG
60 810/30015 GAITER
61 810/30017 Gaiter
62 F99/77906 NOISE PREVENTIVE
63 N04/4330506 Screw
64 020/02851 Cover
65 F99/20011 Lever, knob
66 554/00430 BUTTON, HORN
67 F99/20007 Knob, top
68 F99/20004 Knob, bottom
69 F99/20002 RING
70 019/91401 Lever
71 506/06000 CONNECTOR
72 506/10001 Lock
73 529/22000 Plug
74 020/40626 Protection cover
75 N04/3701346 SCREW M6x25
76 N03/0020004 Washer, Pln.
77 N04/1671994 Screw
78 020/02494 Bracket
