Каталог запасных частей к технике: Hidromek 102B Maestro-ZF. CHASSIS-CAB-ENGINE MOUNTINGS A19001-

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
27
28
28
29
29
30
30
30
31
31
31
32
33
33
33
33
34
35
36
37
38
39

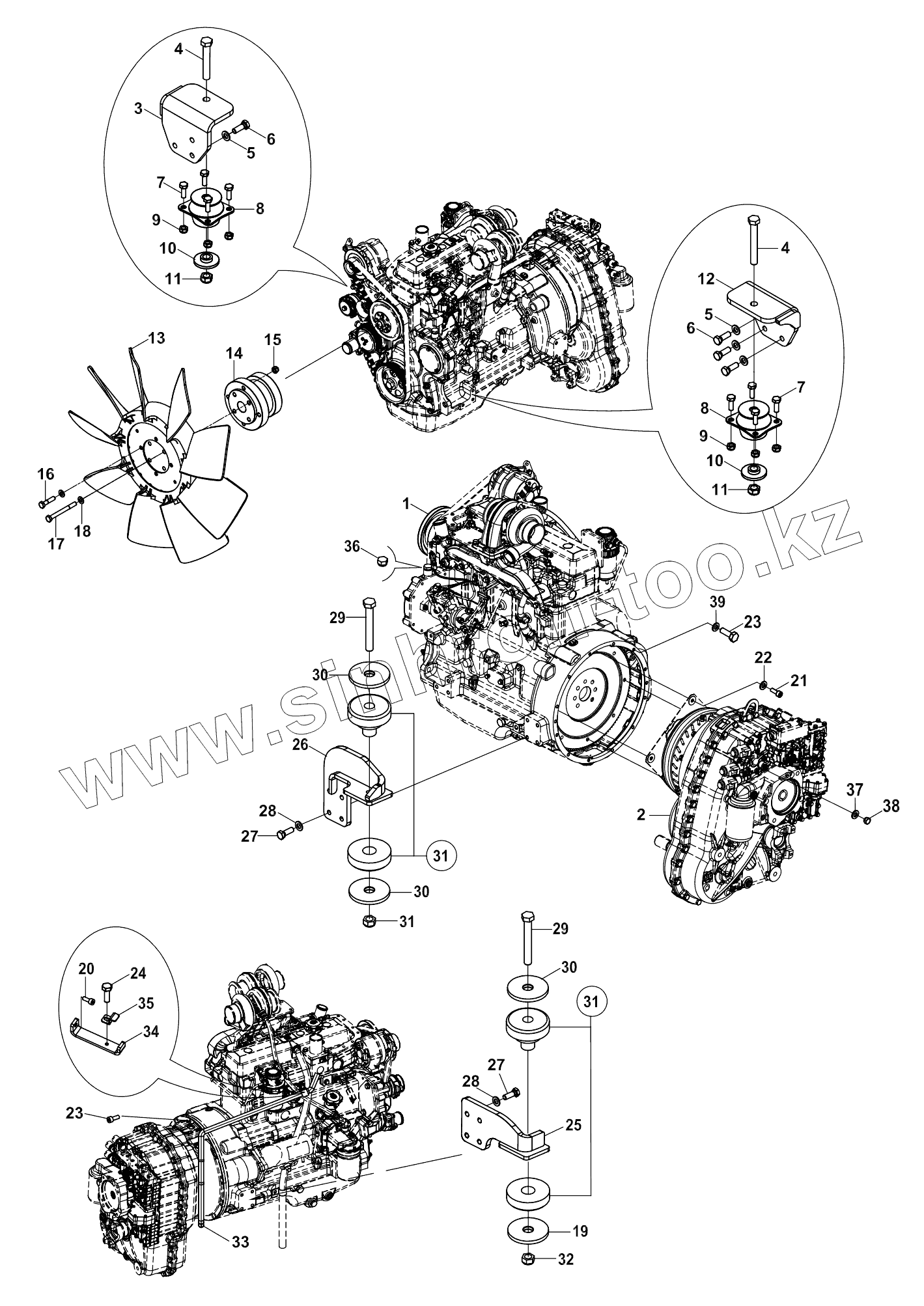

Позиция на иллюстрации Заводской номер детали Название детали
1 ENGINE ENGINE, GREEN 2
2 TRANSMISSION Transmission
3 019/90097 Engine mounting plate,
4 N01/0671442 Bolt
5 N03/0100023 Washer, Pln.
6 N01/0232858 Bolt, Hex.
7 N01/0232486 Bolt, Hex.
8 F99/60021 MOUNTING, RUBBER
9 N02/5910086 Nut
10 805/00047 WASHER
11 N02/5910194 Nut
12 019/90096 Engine mounting plate, left
13 F99/30030 Fan
14 020/40635 Fan bracket
15 N02/5910062 Nut
16 N01/0232174 Bolt
17 N01/0380552 Bolt
18 N03/0020011 Washer, Pln.
19 805/00073 Washer
20 N01/5980806 Bolt
21 N01/0380566 Bolt, Hex.
22 N03/0100021 Washer, Pln.
23 N01/0232486 Bolt, Hex.
24 N01/5890458 Bolt
25 019/90100 Engine mounting plate,rear- right
26 019/90101 Engine mounting plate,rear- left
27 N01/0380854 Bolt, Hex.
28 N03/0810001 Washer
29 N01/0381908 Bolt
30 805/00074 Washer
31 F99/60023 Mounting, rubber
32 N02/5910242 Nut
33 018/90393 Pipe, transmission oil level
33 018/90402 Pipe, transmission oil level
34 020/21719 Transmission tube mounting plate- upper
35 020/12747 Transmission tube mounting plate
36 814/06101 Plug
37 F01/24143 O-RING
38 F01/32126 PLUG
39 N03/0020018 Washer, Pln.
40 810/09716 Pipe, transmission oil level
40 810/09718 Pipe, transmission oil level
41 810/09753 Dipstick, transmission oil level
42 806/33841 Adapter
43 N10/2003830 O-ring
