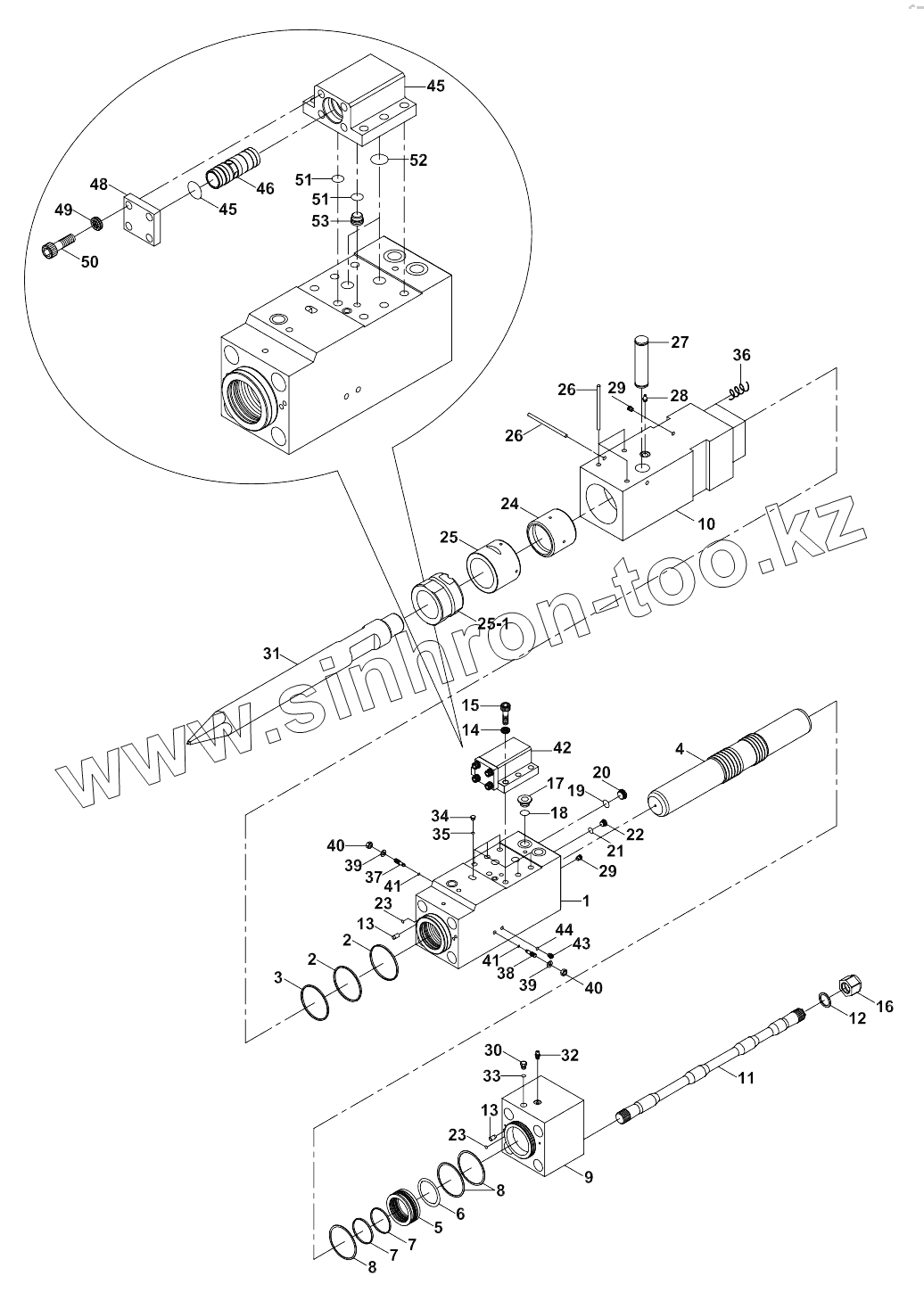

Каталог запасных частей к технике: Hidromek 102B Maestro-ZF. BREAKER, ALICON B50 A20945-

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
43
31
32
33
34
35
36
37
38
39
39
40
40
41
41
42
30
44
45
45
46
48
49
50
51
51
52
53
16
2
2
3
4
5
6
7
7
8
8
9
10
11
12
13
13
14
15
1
17
18
19
20
21
22
23
23
24
25
26
26
27
28
29
29
Позиция на иллюстрации Заводской номер детали Название детали
43 S45/15023 Plug
31 S45/15435 Chisel
31-1 S45/15440 Chisel
31-2 S45/15445 Chisel
31-3 S45/15430 Chisel
32 S45/15502 Screw coupling
33 S45/14927 O-ring
34 S45/15014 Plug, hex Socket
35 S45/14925 O-ring
36 S45/15505 Heli coil
37 S45/15037 Valve, auto control
38 S45/15533 Selector
39 S45/15038 Washer
40 S45/15324 Nut
41 S4515022 O-ring
42 S45/15454 Valve case assy
30 S45/15418 Air cap ass'y
44 S45/15024 O-ring
K1 S45/15456 Seal kit, all
K2 S45/15461 Seal kit, cylinder
K3 S45/15485 Seal kit, valve case
T1 S45/15457 Through bolt set
45 S45/15458 Case, valve
46 S45/15365 Valve
47 S45/15404 O-ring
48 S45/15459 Plate, valve
49 S45/15470 Washer, nord lock
50 S45/15480 Bolt, socket
51 S45/14929 O-ring
52 S45/15475 O-ring
53 S45/15501 Plug, choke
16 S45/15012 Nut
2 S45/15402 U-packing
3 S45/15403 Dust seal
4 S45/15421 Piston
5 S45/15422 Bush, cylinder
6 S45/15407 Quad ring
7 S45/15408 Seal step
8 S45/15401 O-ring
9 S45/15008 Cap head
10 S45/15009 Front head
11 S45/15011 Bolt through
12 S45/15428 Washer, for t bolt
13 S45/14967 Pin knock
14 S45/15470 Washer, nord lock
15 S45/15480 Bolt, socket
1 S45/15001 Cylinder
17 S45/15466 Plug, hex Socket
18 S45/14936 O-ring
19 S45/14939 O-ring
20 S45/15018 Plug, hex Socket
21 S45/14911 O-ring
22 S45/15017 Plug, hex Socket
23 S45/14923 O-ring
24 S45/15455 Ring thrust
25 S45/15307 Front cover
25-1 S45/15450 Front cover
26 S45/15451 Pin
27 S45/15490 Pin chisel
28 S45/15020 Grease nipple
29 S45/15015 Plug hollow
