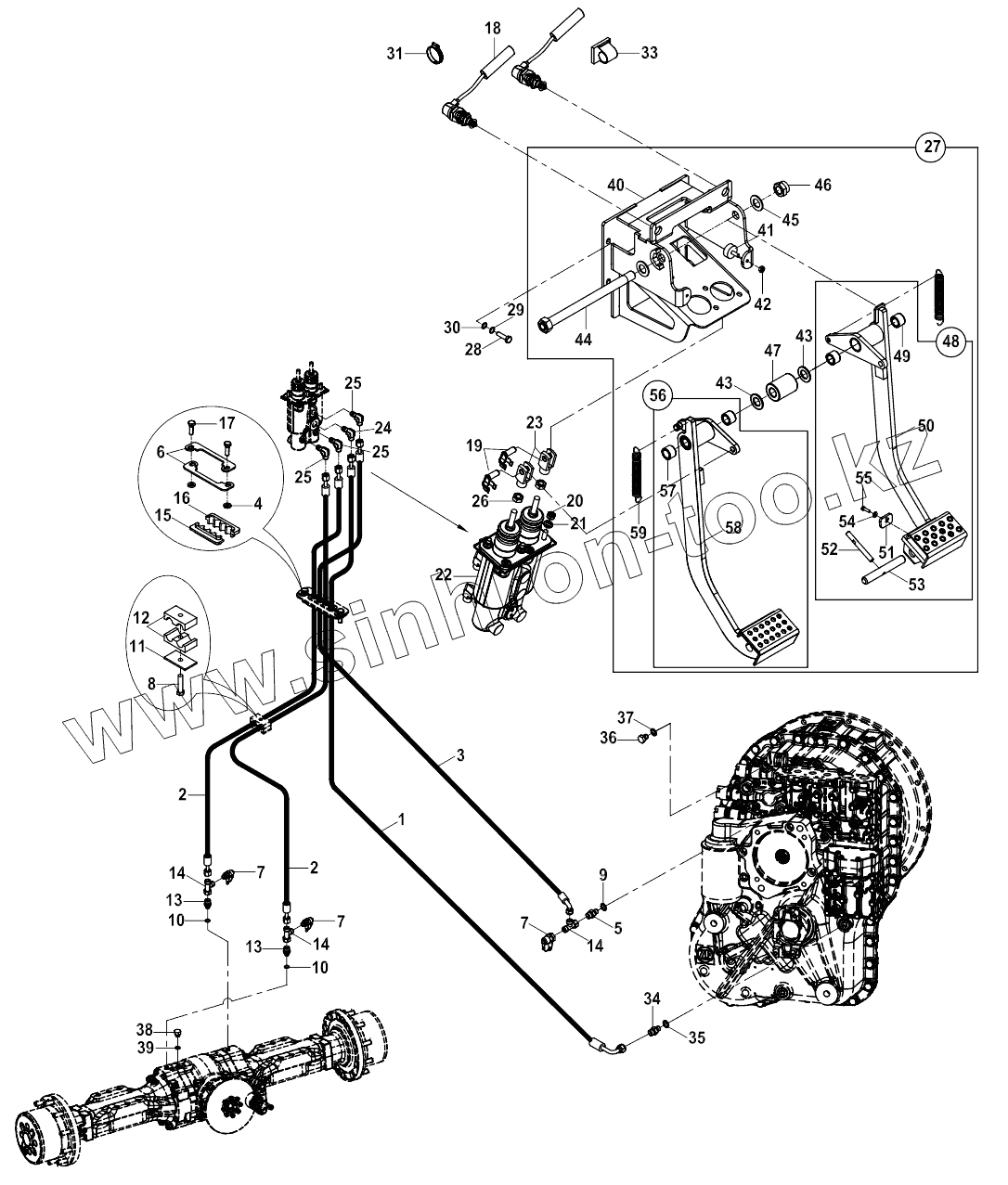

Каталог запасных частей к технике: Hidromek 102B Maestro-ZF. BRAKE, CIRCUIT MOUNTING A19331-A20042

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
4
5
6
7
7
7
8
9
10
10
11
12
13
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
27
28
29
30
31
33
34
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Позиция на иллюстрации Заводской номер детали Название детали
1 602/0021145 Hose
2 661/0020170 Hose
3 661/0026100 Hose
4 805/00026 Washer
5 N16/3470400 Adapter
6 810/49054 Hose holder plate
7 F99/72016 Coupling, Screw
8 N01/0380410 Bolt, Hex.
9 N03/0000004 Washer, Pln.
10 N10/2001119 O-Ring
11 N07/3016002 COVER, CLAMP
12 N07/3013503 Clamp
13 N16/K310365 Connector
14 N16/3790031 ADAPTER
15 N07/2130095 Hose holder, rubber
16 N07/2130096 Hose holder, rubber
17 N01/0232162 Bolt, Hex.
18 554/00630 Switch
19 F99/60056 PIN
20 N02/5910062 Nut
21 N03/03810014 Washer
22 F18/61510 Valve, brake
23 F99/60051 CLEVIS
24 N16/3471157 Elbow
25 N16/N210044 Elbow
26 N02/3580206 Nut
27 018/90147 Brake pedal
28 N01/58970470 Bolt
29 N03/0810014 Washer
30 N03/0810014 Washer
31 510/11700 String
33 545/03510 Clip
34 806/24720 Nipple
35 N10/2001018 O-ring
36 814/04090 PLUG
37 N10/2001119 O-Ring
38 814/04091 Plug
39 N10/2000818 O-RING
40 019/92747 Body
41 810/40057 Cover
42 N02/3570158 Nut, Hex.
43 805/07030 Washer
44 019/92940 Pin
45 N03/0810002 Washer
46 N02/5900194 NUT M16x1.5
47 802/01586 Bushing
48 018/90148 Pedal, right
49 802/08022 Bushing
50 019/92755 Pedal, right
51 810/40087 Pedal stroke end bracket
52 020/21623 Pedal lock handle
53 020/21622 Pin lock
54 N03/0100011 Washer, Pln.
55 N04/1671658 Screw
56 018/90149 Pedal, left
57 802/08022 Bushing
58 019/92756 Pedal, left
59 807/02409 Spring
60 637/002K070 Hose
61 N16/3770031 Tee
62 804/00634 NUT, M24x1.5
63 806/24888 Adapters
64 N03/0000015 Washer
65 F30/93505 Accumulator
66 806/03313 Adapters
67 N10/2001018 O-ring
68 F18/90490 Check valve
69 N03/0000004 Washer, Pln.
