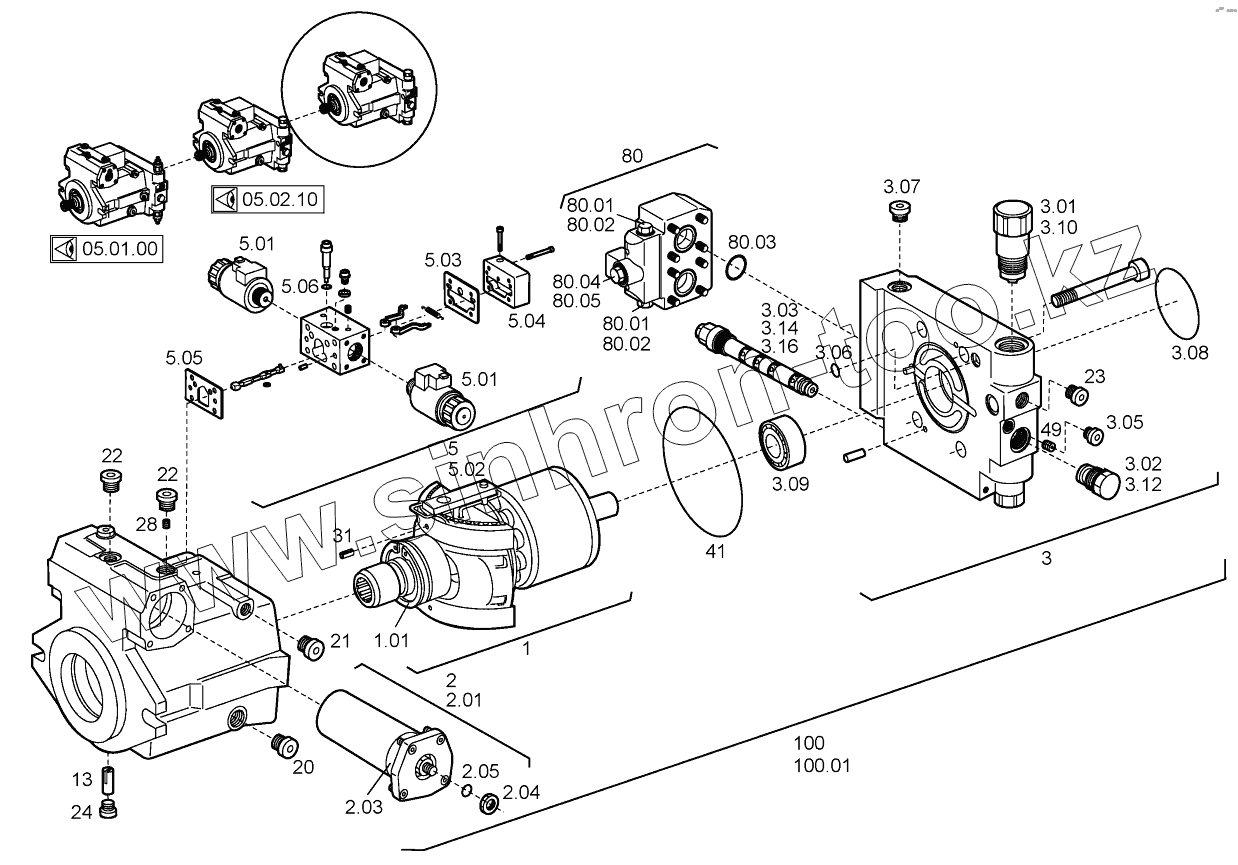

Каталог запасных частей к технике: HAMM HD90. DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - VIBRATION DRIVE)
1
1
1
1.01
1.01
1.01
2
2.01
2.03
2.04
2.05
3
3.01
3.02
3.03
3.05
3.06
3.07
3.08
3.09
3.10
3.12
3.14
3.16
5
5
5
5
5.01
5.01
5.02
5.03
5.04
5.05
5.06
13
20
21
22
22
23
24
28
31
41
49
80
80
80
80
80.01
80.01
80.02
80.02
80.03
80.04
80.05
100
100
100
100
100.01
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2381121 | DRIVING GEAR VERSION,VT, VT-S | |
| 1 | 2161010 | DRIVING GEAR NOT VERSION,VT, VT-S | |
| 1 | 2161010 | DRIVING GEAR VERSION,VT, VT-S | |
| 1.01 | 1283448 | CIRCLIP | |
| 1.01 | 1283448 | CIRCLIP | |
| 1.01 | 1203444 | CIRCLIP VERSION,VT, VT-S | |
| 2 | 2161000 | HYDRAULIC REGULATION COMPL. | |
| 2.01 | 2063969 | SET OF SEALS | |
| 2.03 | 1202790 | O-RING SEAL | |
| 2.04 | 2125586 | HEXAGONAL NUT | |
| 2.05 | 360597 | O-RING SEAL | |
| 3 | 2161011 | JOINT PLATE COMPL. | |
| 3.01 | 1254251 | PRESSURE-RELIEF VALVE | |
| 3.02 | 2161014 | LOCKING SCREW | |
| 3.03 | 1254278 | CUT-OFF VALVE | |
| 3.05 | 1222023 | LOCKING SCREW | |
| 3.06 | 242802 | O-RING SEAL | |
| 3.07 | 360066 | LOCKING SCREW | |
| 3.08 | 390020 | O-RING SEAL | |
| 3.09 | 390089 | CYLINDRICAL ROLLER BEARING | |
| 3.10 | 360678 | O-RING SEAL | |
| 3.12 | 360678 | O-RING SEAL | |
| 3.14 | 1223216 | SEAL NUT | |
| 3.16 | 202185 | O-RING SEAL | |
| 5 | 2161003 | AUTOMATIC CONTROLLER COMPL. | |
| 5 | 2161003 | AUTOMATIC CONTROLLER COMPL. | |
| 5 | 2308272 | AUTOMATIC CONTROLLER COMPL. | |
| 5 | 2308272 | AUTOMATIC CONTROLLER COMPL. | |
| 5.01 | 2122294 | MAGNET | |
| 5.02 | 2046734 | SET OF SEALS | |
| 5.03 | 2125641 | SEALING | |
| 5.04 | 2057262 | COVER WITH FILTER | |
| 5.05 | 2125657 | SEALING | |
| 5.06 | 1278444 | O-RING SEAL | |
| 13 | 2161005 | PIN | |
| 20 | 1203142 | LOCKING SCREW | |
| 21 | 1203150 | LOCKING SCREW | |
| 22 | 360066 | LOCKING SCREW | |
| 23 | 2024028 | LOCKING SCREW | |
| 24 | 1203169 | LOCKING SCREW | |
| 28 | 1257129 | NOZZLE | |
| 31 | 1223089 | PIN | |
| 41 | 341177 | O-RING SEAL | |
| 49 | 1223054 | NOZZLE | |
| 80 | 2308271 | FEEDING PRESSURE VALVE COMPL. | |
| 80 | 2308271 | FEEDING PRESSURE VALVE COMPL. | |
| 80 | 2161006 | FEEDING PRESSURE VALVE COMPL. | |
| 80 | 2161006 | FEEDING PRESSURE VALVE COMPL. | |
| 80.01 | 2161008 | LOCKING SCREW | |
| 80.02 | 2125228 | O-RING SEAL | |
| 80.03 | 2161009 | O-RING SEAL | |
| 80.04 | 1286064 | LOCKING SCREW | |
| 80.05 | 1202804 | O-RING SEAL | |
| 100 | 2381120 | VARIABLE DISPLAC. PUMP (VIBR.) VERSION,VT, VT-S | |
| 100 | 2381114 | VARIABLE DISPLAC. PUMP (VIBR.) NOT VERSION,VT, VT-S | |
| 100 | 2160979 | VARIABLE DISPLAC. PUMP (VIBR.) VERSION,VT, VT-S | |
| 100 | 2160979 | VARIABLE DISPLAC. PUMP (VIBR.) VERSION,VT, VT-S | |
| 100.01 | 2161036 | SET OF SEALS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
